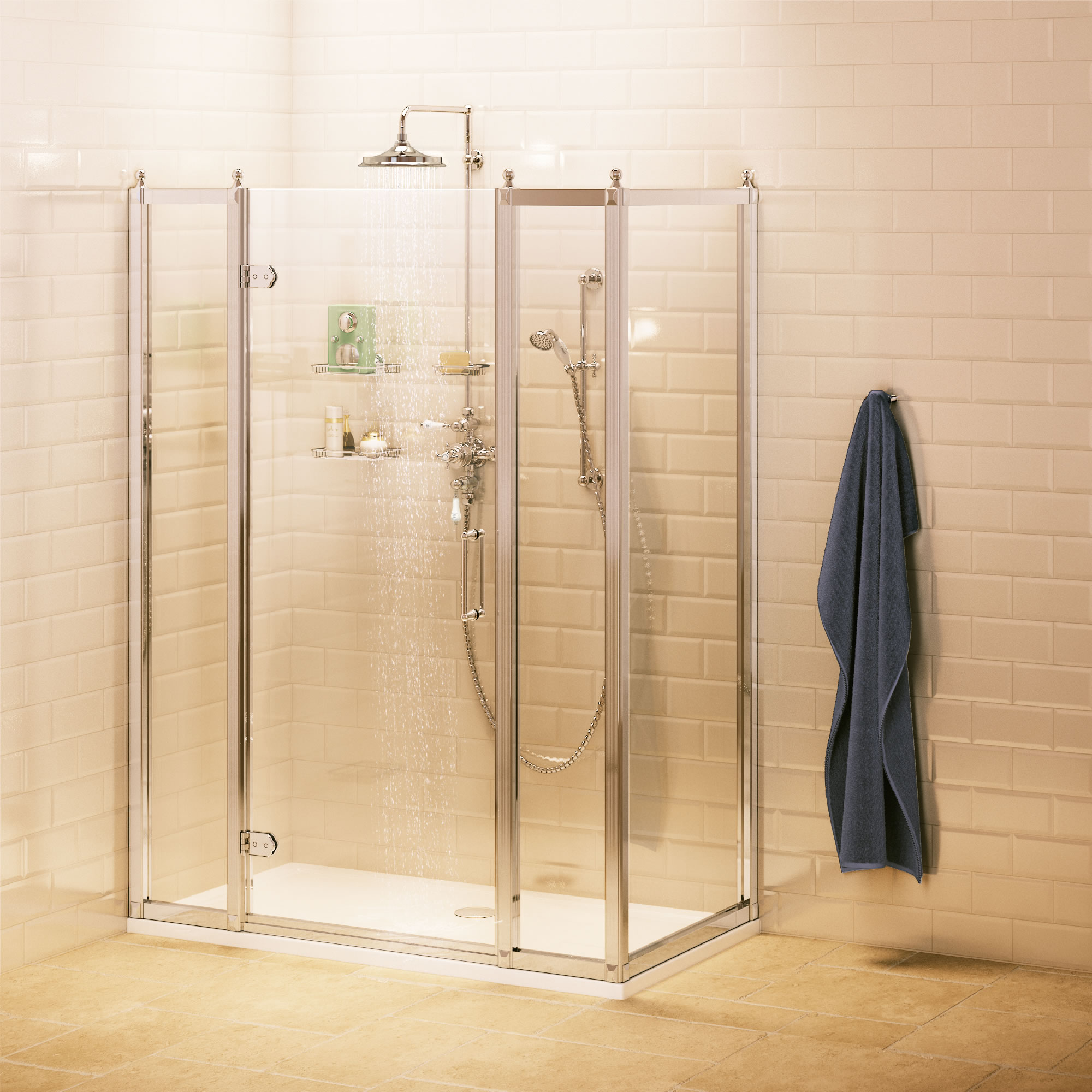

Hinged doors with in-line panels & side panels
Product Options
Sizes (click on size to refresh details)
80cm (A), 20cm (B), 76cm (C)
|
80cm (A), 20cm (B), 80cm (C)
|
80cm (A), 20cm (B), 90cm (C)
|
80cm (A), 30cm (B), 76cm (C)
|
80cm (A), 30cm (B), 80cm (C)
|
|
80cm (A), 30cm (B), 90cm (C)
|
90cm (A), 30cm (B), 76cm (C)
|
90cm (A), 30cm (B), 80cm (C)
|
90cm (A), 30cm (B), 90cm (C)
|
80cm (A), 30cm (B), 80cm (C)
|
|
80cm (A), 30cm (B), 90cm (C)
|
90cm (A), 30cm (B), 76cm (C)
|
90cm (A), 30cm (B), 80cm (C)
|
90cm (A), 40cm (B), 76cm (C)
|
90cm (A), 40cm (B), 80cm (C)
|
As Shown
| C20 800mm hinged door |
| C15 200mm inline panel |
| C14 900mm side panel |
| BU21 - Combined product code |
Colour
| C20 - door - Polished Aluminum |
| C15 - inline panel - Polished Aluminum |
| C14 - side panel - Polished Aluminum |
Gross Weight Including Packaging
| C20 - door - 36.2kg |
| C15 - inline panel - 10.8kg |
| C14 - side panel - 30.1kg |
Packed Dimension
| C20 - 2010 x 825 x 87 = 0.1443 m3 |
| C15 - 2010 x 295 x 87 = 0.0516 m3 |
| C14 - 2010 x 930 x 87 = 0.1626 m3 |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN14428:2015 |
|
Safety Glass : BS EN 12150-1:2015 |
Additional Information
|
Safety glass with 3M™ Easy Clean Coating |
|
Hinged door 8mm glass, side panel and in-line panel 6mm glass |
|
Hinged door opens outwards only |
| SP938 | adjustable profile of product C19, C20, C21 |
| SP471 | bottom door frame B020 for C20 (excluding the sealing strip) |
| SP61 | bottom Waterproof Strip for C19, C20, C21, C22, C23 (single) (B035, B036) |
| SP1187 | bottom waterproof strip used for BS5L, BS5R |
| SP318 | burlington Bottom profile of hinge door C19, C20, C21 |
| SP912 | hinge of product C19, C20, C21, C9, C10 |
| SP1687 | hinge screws for Burlington shower enclosure C9, C10, C19, C20, C21, |
| SP53 | hinged Door Spare Kit |
| SP59 | inline Panel Spare Kit |
| SP431 | part B011 for C19, C20, C21 |
| SP982 | seal on the hinged side of the door for product C19, C20, C21 |
| SP242 | side profile - B015 for C23, C22, C21, C20, C19 (pair) |
| SP406 | support bar for C15, C22 (B031, L=215mm) |
| SP516 | supporting bar for side panel C14 |
| SP921 | top cap of door profile for product C10, C19, C20, C21, C22, C23, C6S, C7S, C8S, BS3, BS8L, BS8R |
| SP426 | vertical seal for C19, C20, C21(B017) |
Downloads
- Instructions - PDF - C20 (English)
- Instructions - PDF - C15 (English)
- Instructions - PDF - C14 (English)
- Instructions - PDF - C14 (French)
- Instructions - PDF - C15 (French)
- Instructions - PDF - C20 (French)
-
2D CAD-File - DWG -
BU21
(BU21_LD.dwg)
-

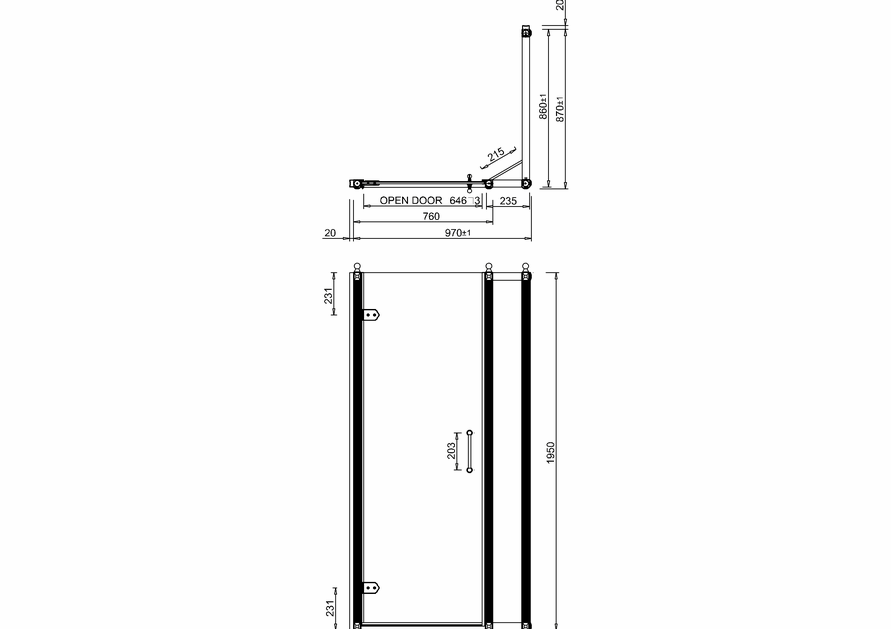

2D Drawing - PDF -
BU21
(BU21_LD.pdf)
2D Drawing - PDF - BU21
