Hinged doors with in-line panels & side panels
Product Options
Sizes (click on size to refresh details)
80cm (A), 20cm (B), 76cm (C)
|
80cm (A), 20cm (B), 80cm (C)
|
80cm (A), 20cm (B), 90cm (C)
|
80cm (A), 30cm (B), 76cm (C)
|
80cm (A), 30cm (B), 80cm (C)
|
|
80cm (A), 30cm (B), 90cm (C)
|
90cm (A), 30cm (B), 76cm (C)
|
90cm (A), 30cm (B), 80cm (C)
|
90cm (A), 30cm (B), 90cm (C)
|
80cm (A), 30cm (B), 80cm (C)
|
|
80cm (A), 30cm (B), 90cm (C)
|
90cm (A), 30cm (B), 76cm (C)
|
90cm (A), 30cm (B), 80cm (C)
|
90cm (A), 40cm (B), 76cm (C)
|
90cm (A), 40cm (B), 80cm (C)
|

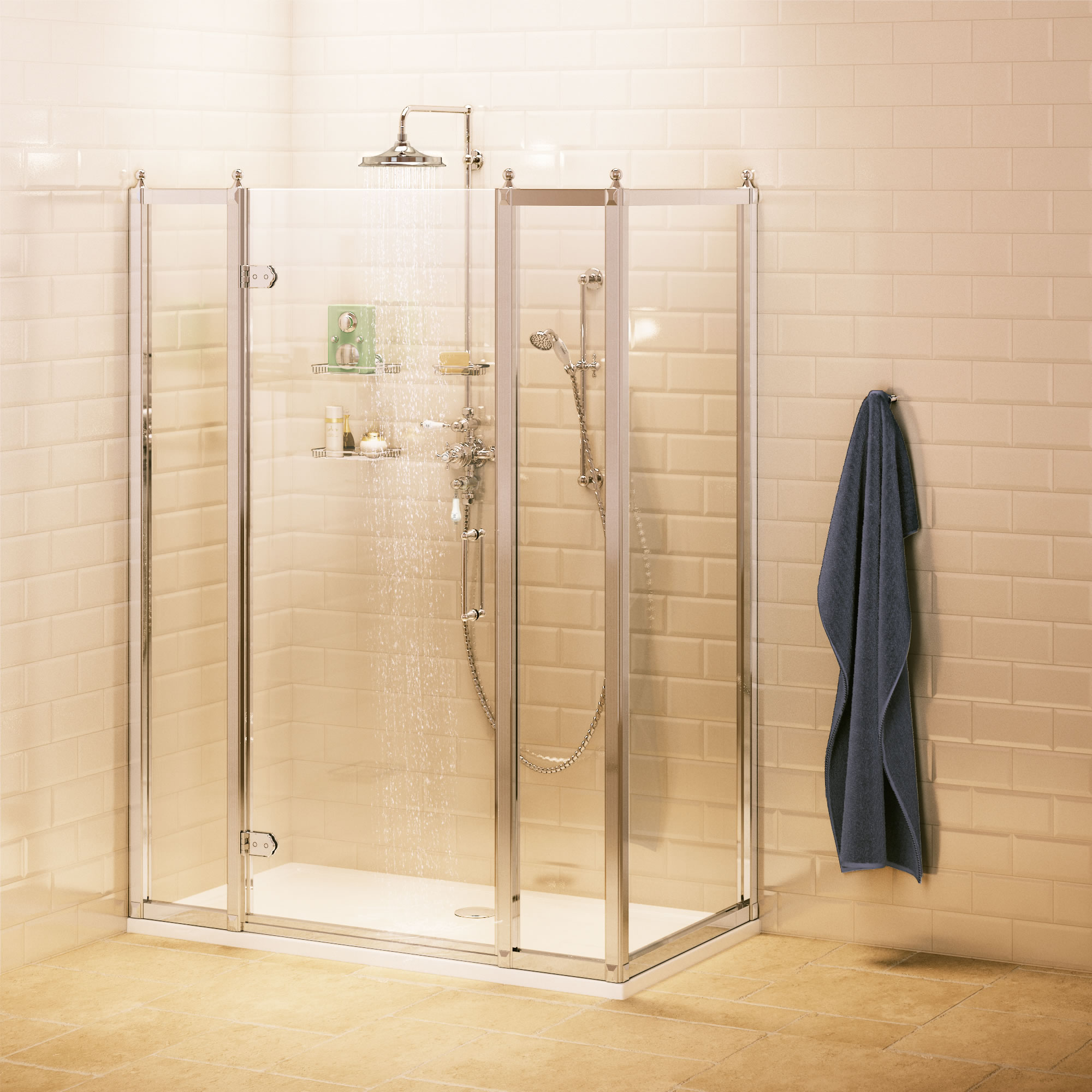

As Shown
| C21 900mm hinged door |
| C16 300mm inline panel |
| C13 800mm side panel |
| BU34 - Combined product code |
Colour
| C21 - door - Polished Aluminum |
| C16 - inline panel - Polished Aluminum |
| C13 - side panel - Polished Aluminum |
Gross Weight Including Packaging
| C21 - door - 40kg |
| C16 - inline panel - 27.4kg |
| C13 - side panel - 28.3kg |
Packed Dimension
| C21 - 2010 x 925 x 87 = 0.1618 m3 |
| C16 - 2010 x 395 x 87 = 0.0691 m3 |
| C13 - 2010 x 830 x 87 = 0.1451 m3 |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN14428:2015 |
|
Safety Glass : BS EN 12150-1:2015 |
Additional Information
|
Safety glass with 3M™ Easy Clean Coating |
|
Hinged door 8mm glass, side panel and in-line panel 6mm glass |
|
Hinged door opens outwards only |
| SP938 | adjustable profile of product C19, C20, C21 |
| SP472 | bottom door frame B021 for C21 (excluding the sealing strip) |
| SP61 | bottom Waterproof Strip for C19, C20, C21, C22, C23 (single) (B035, B036) |
| SP318 | burlington Bottom profile of hinge door C19, C20, C21 |
| SP947 | glass of product C21 |
| SP912 | hinge of product C19, C20, C21, C9, C10 |
| SP1687 | hinge screws for Burlington shower enclosure C9, C10, C19, C20, C21, |
| SP53 | hinged Door Spare Kit |
| SP59 | inline Panel Spare Kit |
| SP431 | part B011 for C19, C20, C21 |
| SP982 | seal on the hinged side of the door for product C19, C20, C21 |
| SP242 | side profile - B015 for C23, C22, C21, C20, C19 (pair) |
| SP407 | support bar for C16, C17, C23 (B032, L=330mm) |
| SP515 | supporting bar for side panel C10, C11, C12, C13, C15 |
| SP921 | top cap of door profile for product C10, C19, C20, C21, C22, C23, C6S, C7S, C8S, BS3, BS8L, BS8R |
| SP426 | vertical seal for C19, C20, C21(B017) |
Downloads
- Instructions - PDF - C21 (English)
- Instructions - PDF - C16 (English)
- Instructions - PDF - C13 (English)
- Instructions - PDF - C13 (French)
- Instructions - PDF - C16 (French)
- Instructions - PDF - C21 (French)
-
2D CAD-File - DWG -
BU34
(BU34_LD.dwg)
-

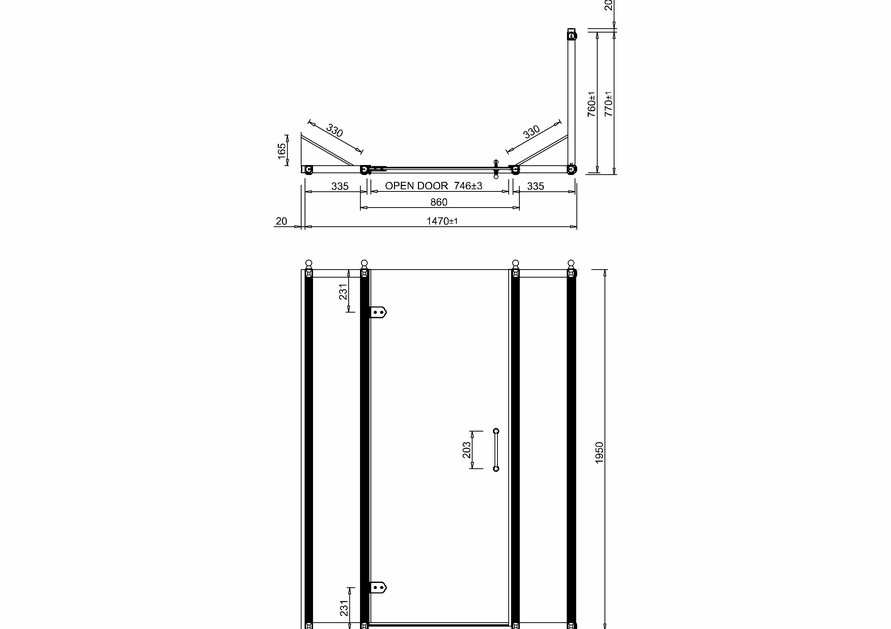

2D Drawing - PDF -
BU34
(BU34_LD.pdf)
2D Drawing - PDF - BU34
