Quadrants
Product Options
Sizes
80cm (D)
|
90cm (D)
|
As Shown
| C22A 800 x 800 Quadrant door BOX A ONLY |
| C22B 800 x 800 Quadrant door BOX B ONLY |
| BU39 - Combined product code |
Nett Weight
| C22A - door - 26.2kg |
| C22B - door - 25.9kg |
Gross Weight Including Packaging
| C22A - door - 29.1kg |
| C22B - door - 29.3kg |
Packed Dimension
| C22A - 530 x 170 x 2040 = 0.1838 m3 |
| C22B - 530 x 170 x 2040 = 0.1838 m3 |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN14428:2015 |
|
Safety Glass : BS EN 12150-1:2015 |
Additional Information
|
Safety glass with 3M™ Easy Clean Coating |
|
Quadrant door 8mm glass, fix panel 6mm glass |
| SP124 | aluminium frame, 2 x hinges and screws for C22 & C23 (Left version) |
| SP241 | base rail - B037 for C23, C22 |
| SP61 | bottom Waterproof Strip for C19, C20, C21, C22, C23 (single) (B035, B036) |
| SP60 | burlington Shower Enclosure Handle (B018) |
| SP1688 | hinge screws for Burlington shower enclosure C22, C23 |
| SP1023 | right door of C22, C23 |
| SP242 | side profile - B015 for C23, C22, C21, C20, C19 (pair) |
| SP406 | support bar for C15, C22 (B031, L=215mm) |
| SP1221 | the black magnetic strips for Burlington quadrant C22, C23, L=1902mm |
| SP921 | top cap of door profile for product C10, C19, C20, C21, C22, C23, C6S, C7S, C8S, BS3, BS8L, BS8R |
Downloads
-
2D CAD-File - DWG -
BU39
(BU39_LD.dwg)
-

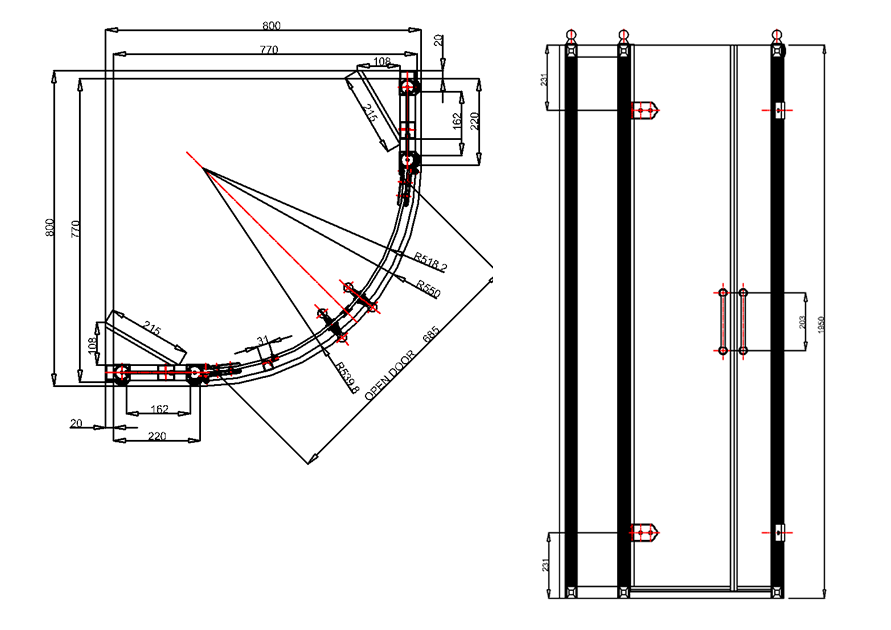

2D Drawing - PDF -
BU39
(BU39_LD.pdf)
2D Drawing - PDF - BU39
