Quadrants
Product Options
Sizes
80cm (D)
|
90cm (D)
|

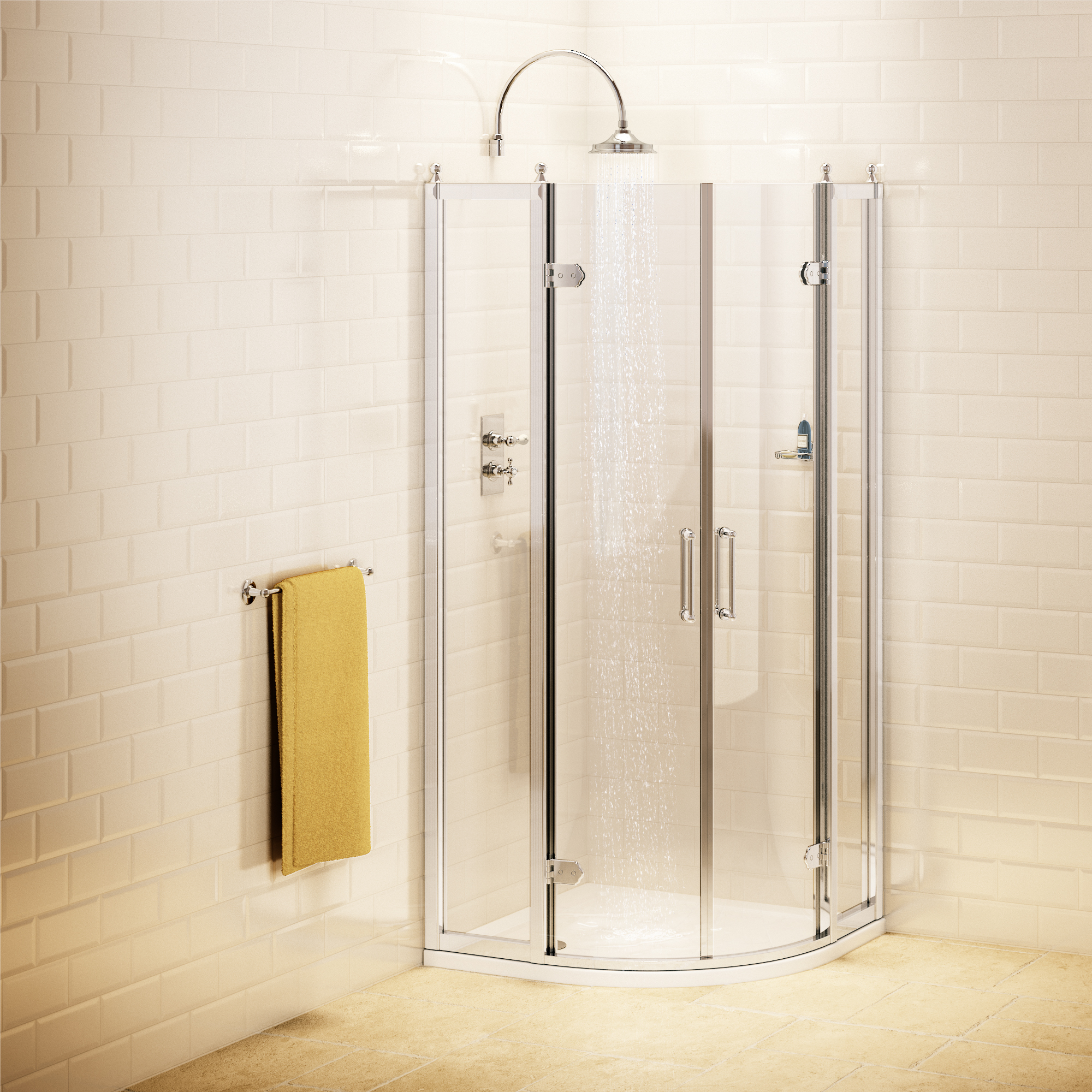

As Shown
| C23A 900 x 900 Quadrant door BOX A ONLY |
| C23B 900 x 900 Quadrant door BOX B ONLY |
| BU40 - Combined product code |
Nett Weight
| C23A - door - 30.2kg |
| C23B - door - 28.8kg |
Gross Weight Including Packaging
| C23A - door - 33.2kg |
| C23B - door - 32.2kg |
Packed Dimension
| C23A - 530 x 170 x 2040 = 0.1838 m3 |
| C23B - 530 x 170 x 2040 = 0.1838 m3 |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN14428:2015 |
|
Safety Glass : BS EN 12150-1:2015 |
Additional Information
|
Safety glass with 3M™ Easy Clean Coating |
|
Quadrant door 8mm glass, fix panel 6mm glass |
| SP124 | aluminium frame, 2 x hinges and screws for C22 & C23 (Left version) |
| SP241 | base rail - B037 for C23, C22 |
| SP61 | bottom Waterproof Strip for C19, C20, C21, C22, C23 (single) (B035, B036) |
| SP1688 | hinge screws for Burlington shower enclosure C22, C23 |
| SP549 | magnetic stripe for left moving door of C23 |
| SP1023 | right door of C22, C23 |
| SP242 | side profile - B015 for C23, C22, C21, C20, C19 (pair) |
| SP55 | slider Door Spare Kit |
| SP407 | support bar for C16, C17, C23 (B032, L=330mm) |
| SP1221 | the black magnetic strips for Burlington quadrant C22, C23, L=1902mm |
| SP921 | top cap of door profile for product C10, C19, C20, C21, C22, C23, C6S, C7S, C8S, BS3, BS8L, BS8R |
Downloads
-
2D CAD-File - DWG -
BU40
(BU40_LD.dwg)
-

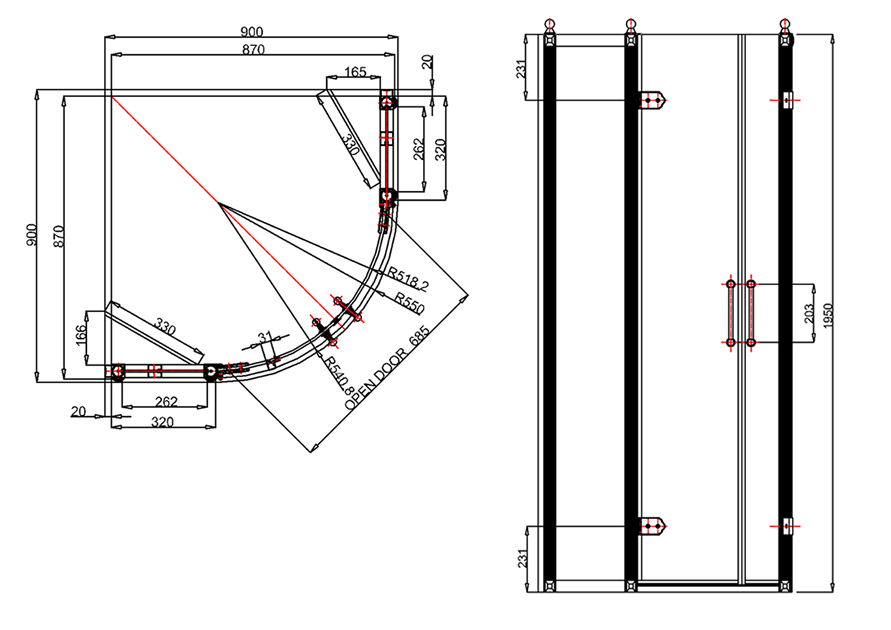

2D Drawing - PDF -
BU40
(BU40_LD.pdf)
2D Drawing - PDF - BU40
