Pentangle
| This product is available in multiple options (Click on any option to show details for that option) | |
|---|---|
| Z1191A | Pentangle 900 x 900 shower tray |
| Z1403A | Pentangle 1200 x 900 Left hand shower tray |
| Z1404A | Pentangle 1200 x 900 Right hand shower tray |
| Z1246A | Pentangle 1000 x 1000 shower tray |
| Z1401A | Pentangle 1400 x 900 Left hand shower tray |
| Z1402A | Pentangle 1400 x 900 Right hand shower tray |

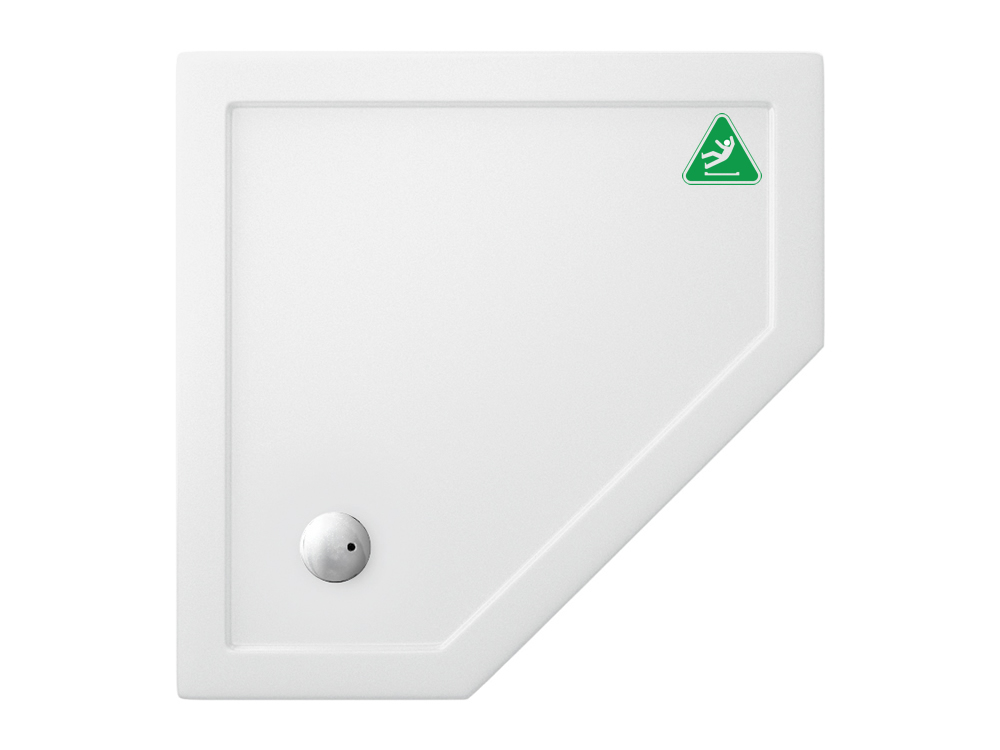

As Shown
| Z1246A Pentangle 1000 x 1000 x 35mm tray anti-slip |
| Z1246A - Combined product code |
Colour
| Z1246A - tray - Gloss White |
Material
| Z1246A - tray - Acrylic |
Nett Weight
| Z1246A - tray - 10kg |
Gross Weight Including Packaging
| Z1246A - tray - 12kg |
Packed Dimension
| Z1246A - 1050 x 1050 x 40 = 0.0441 m3 |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
EN 14527 CE |
|
EN 251 Shower trays - Connecting dimensions |
Additional Information
|
90mm waste diameter |
|
Underside of tray pre-marked for fitting of feet |
|
10 years guarantee |
|
Subject to patent number GB 2440719(A) |
Compatible Products
| Z1208 - Waterproof sealing strip |
| ZP3.ZL4 - Panel Pack C |
Downloads
-
2D CAD-File - DWG -
Z1246A
(Z1246A.dwg)
-

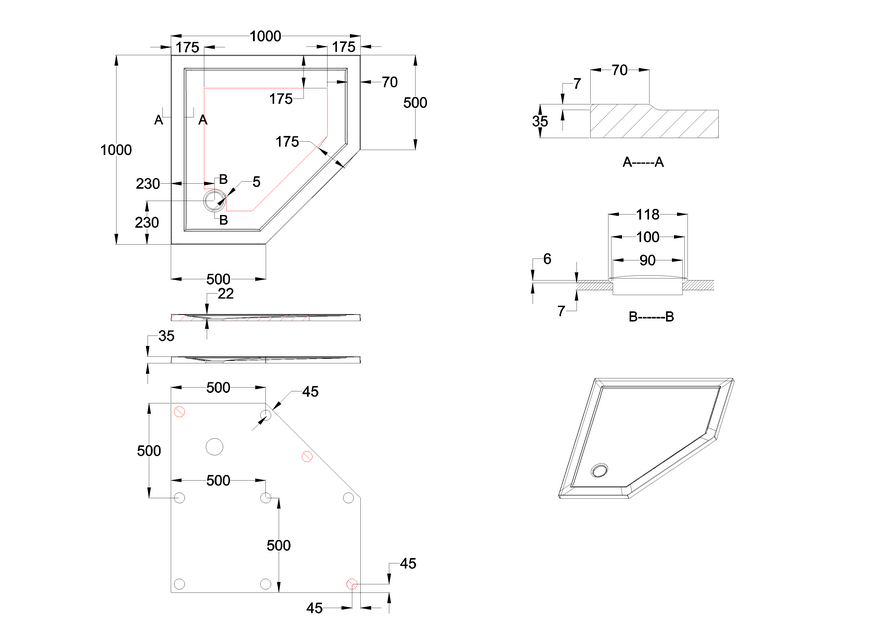

2D Drawing - PDF -
Z1246A
(Z1246A.pdf)
2D Drawing - PDF - Z1246A
-
3D DWG - File - DWG
-
Z1246A
(BSH-1000P_2.dwg)
-
3D DXF - File - DXF
-
Z1246A
(BSH-1000P_2.dxf)
-
3D IGS - File - IGS
-
Z1246A
(BSH-1000P_2.igs)
-
3D RFA BIMM Objects - File - RFA
-
Z1246A
(Z1246.rfa)
