Pentangle
| This product is available in multiple options (Click on any option to show details for that option) | |
|---|---|
| Z1191 | Pentangle 900 x 900 shower tray |
| Z1403 | Pentangle 1200 x 900 Left hand shower tray |
| Z1404 | Pentangle 1200 x 900 Right hand shower tray |
| Z1246 | Pentangle 1000 x 1000 shower tray |
| Z1401 | Pentangle 1400 x 900 Left hand shower tray |
| Z1402 | Pentangle 1400 x 900 Right hand shower tray |
As Shown
| Z1402 Pentangle tray (right) |
| Z1402 - Combined product code |
Colour
| Z1402 - tray - Gloss White |
Material
| Z1402 - tray - Acrylic |
Nett Weight
| Z1402 - tray - 11.5kg |
Gross Weight Including Packaging
| Z1402 - tray - 13.5kg |
Packed Dimension
| Z1402 - 1450 x 950 x 40 = 0.0551 m3 |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
EN 14527 CE |
|
EN 251 Shower trays - Connecting dimensions |
Additional Information
|
Subject to patent number GB 2440719(A) |
|
90mm waste diameter |
|
Underside of tray pre-marked for fitting of feet |
|
10 years guarantee |
Compatible Products
| Z1208 - Waterproof sealing strip |
| ZP12.ZL1 - Panel Pack K |
Downloads
-
2D CAD-File - DWG -
Z1402
(Z1205 Z1208 ZL1 Z1402_LD.dwg)
-

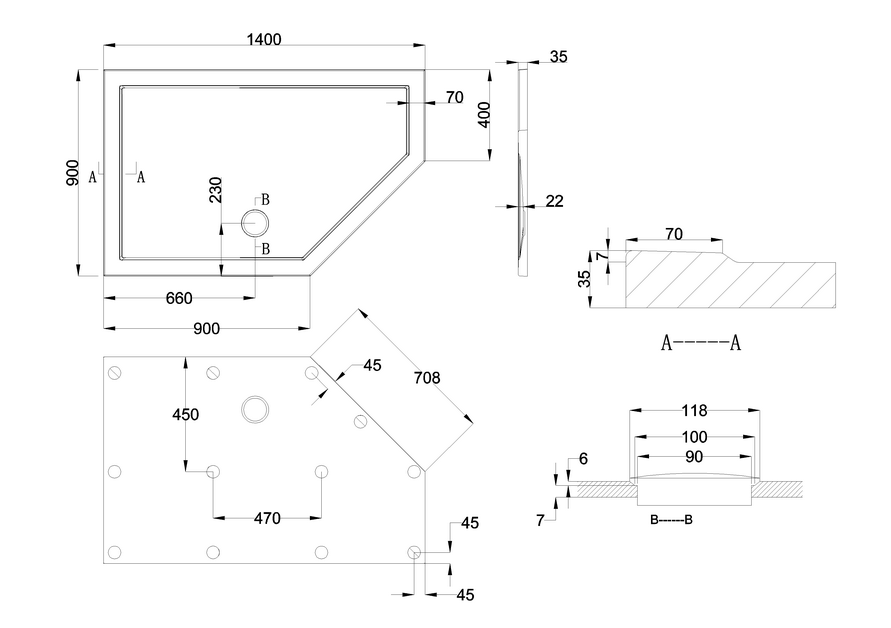

2D Drawing - PDF -
Z1402
(Z1205 Z1208 ZL1 Z1402_LD.pdf)
2D Drawing - PDF - Z1402
-
3D DWG - File - DWG
-
Z1402
(BSH1490R.dwg)
-
3D DXF - File - DXF
-
Z1402
(BSH1490R.dxf)
-
3D IGS - File - IGS
-
Z1402
(BSH1490R.igs)
-
3D RFA BIMM Objects - File - RFA
-
Z1402
(Z1402.rfa)
