Quadrant
| This product is available in multiple options (Click on any option to show details for that option) | |
|---|---|
| Z1192A | Quadrant 800 x 800 shower tray |
| Z1193A | Quadrant 900 x 900 shower tray |
| Z1194A | Quadrant 1000 x 1000 shower tray |

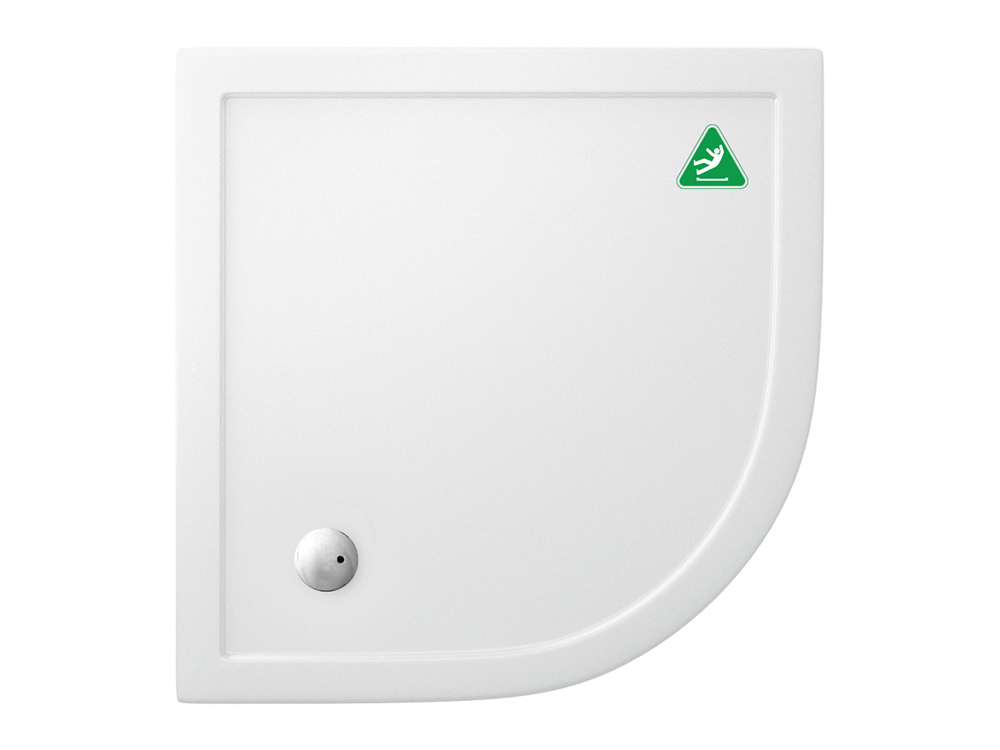

As Shown
| Z1194A Quadrant 1000 x 1000 x 35mm tray anti-slip |
| Z1194A - Combined product code |
Colour
| Z1194A - tray - Gloss White |
Material
| Z1194A - tray - Acrylic |
Nett Weight
| Z1194A - tray - 10kg |
Gross Weight Including Packaging
| Z1194A - tray - 12.5kg |
Packed Dimension
| Z1194A - 1047 x 1040 x 40 = 0.0436 m3 |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
EN 14527 CE |
|
EN 251 Shower trays - Connecting dimensions |
Additional Information
|
90mm waste diameter |
|
Underside of tray pre-marked for fitting of feet |
|
10 years guarantee |
|
Subject to patent number GB 2440719(A) |
Compatible Products
| Z1208 - Waterproof sealing strip |
| ZP4.ZL5 - Panel Pack G |
Downloads
-
2D CAD-File - DWG -
Z1194A
(Z1194A.dwg)
-

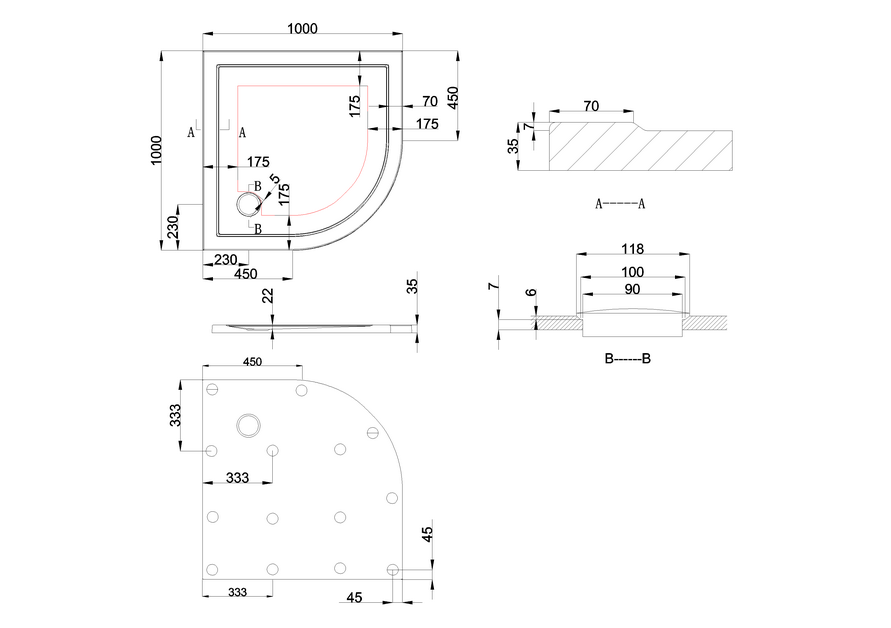

2D Drawing - PDF -
Z1194A
(Z1194A.pdf)
2D Drawing - PDF - Z1194A
-
3D DWG - File - DWG
-
Z1194A
(BSH-1000R.dwg)
-
3D DXF - File - DXF
-
Z1194A
(BSH-1000R.dxf)
-
3D IGS - File - IGS
-
Z1194A
(BSH-1000R.igs)
-
3D RFA BIMM Objects - File - RFA
-
Z1194A
(Z1194.rfa)
