Offset Quadrant

asaq2.Model.Web_product_new?.web_name

Alternate Text

This product is available in multiple options (Click on any option to show details for that option)
Z1195A	Offset Quadrant 900 x 760 Left hand shower tray
Z1196A	Offset Quadrant 900 x 760 Right hand shower tray
Z1197A	Offset Quadrant 900 x 800 Left hand shower tray
Z1198A	Offset Quadrant 900 x 800 Right hand shower tray
Z1199A	Offset Quadrant 1000 x 800 Left hand shower tray
Z1201A	Offset Quadrant 1200 x 800 Left hand shower tray
Z1203A	Offset Quadrant 1200 x 900 Left hand shower tray
Z1200A	Offset Quadrant 1000 x 800 Right hand shower tray
Z1202A	Offset Quadrant 1200 x 800 Right hand shower tray
Z1204A	Offset Quadrant 1200 x 900 Right hand shower tray

As Shown

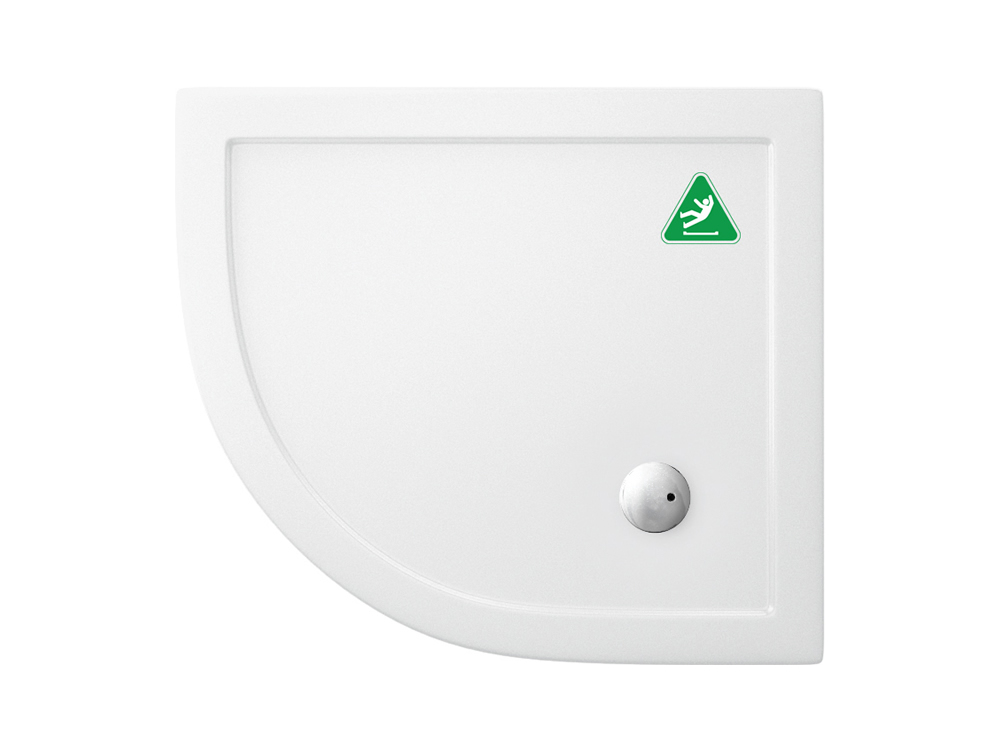

Z1197A Offset quadrant 900 x 800 x 35mm (Left) tray anti-slip

Z1197A - Combined product code

Colour

Z1197A - tray - Gloss White

Material

Z1197A - tray - Acrylic

Size

Z1197A - 900 x 800 x 35mm

Nett Weight

Z1197A - tray - 7.5kg

Gross Weight Including Packaging

Z1197A - tray - 9.5kg

Packed Dimension

Z1197A - 947 x 840 x 40 = 0.0318 m3

Guarantee

Lifetime guarantee*
*Full terms & conditions here

Standards Information

EN 14527 CE

EN 251 Shower trays - Connecting dimensions

Additional Information

90mm waste diameter

Underside of tray pre-marked for fitting of feet

10 years guarantee

Subject to patent number GB 2440719(A)

Compatible Products

Z1208 - Waterproof sealing strip

ZP5.ZL5 - Panel Pack J

Downloads

Instructions - PDF - Z1197A (English)
Instructions - PDF - Z1197A (French)

2D CAD-File - DWG - Z1197A (Z1197A.dwg)

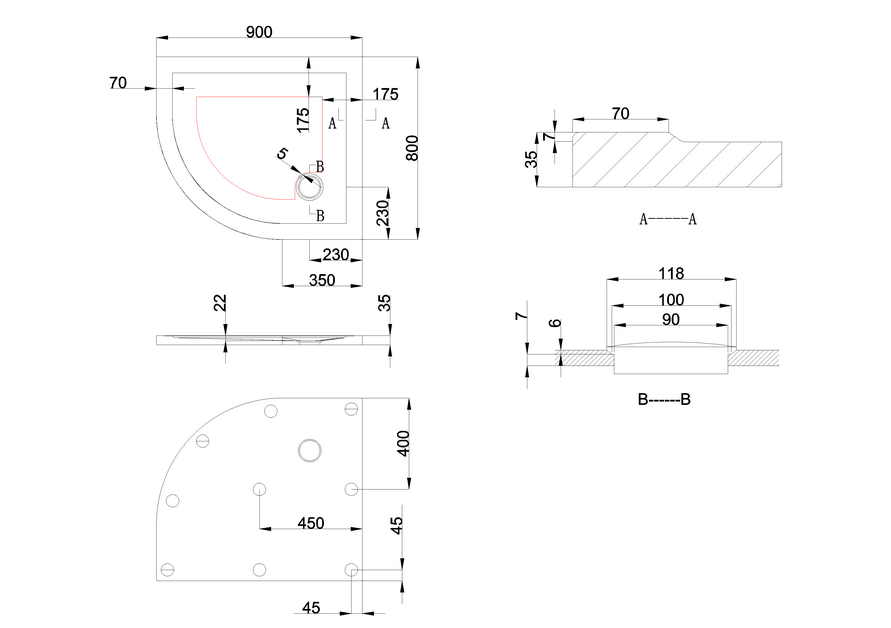

2D Drawing - PDF - Z1197A (Z1197A.pdf) 2D Drawing - PDF - Z1197A

3D DWG - File - DWG - Z1197A (BSH9080L.dwg)
3D DXF - File - DXF - Z1197A (BSH9080L.dxf)
3D IGS - File - IGS - Z1197A (BSH9080L.igs)
3D RFA BIMM Objects - File - RFA - Z1197A (Z1197.rfa)

Product image 1 - jpg

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
