Welcome to the Bathroom Brands Technical Whitebook

search autorenew

Rectangle
asaq2.Model.Web_product_new?.web_name
This product is available in multiple options (Click on any option to show details for that option)
Z1163A Rectangle 900 x 760 shower tray
Z1164A Rectangle 900 x 800 shower tray
Z1165A Rectangle 1000 x 700 shower tray
Z1166A Rectangle 1000 x 760 shower tray
Z1167A Rectangle 1000 x 800 shower tray
Z1168A Rectangle 1000 x 900 shower tray
Z1169A Rectangle 1100 x 700 shower tray
Z1170A Rectangle 1100 x 760 shower tray
Z1171A Rectangle 1100 x 800 shower tray
Z1172A Rectangle 1100 x 900 shower tray
Z1173A Rectangle 1200 x 700 shower tray
Z1174A Rectangle 1200 x 760 shower tray
Z1175A Rectangle 1200 x 800 shower tray
Z1176A Rectangle 1200 x 900 shower tray
Z1230A Rectangle 1200 x 1000 shower tray
Z1177A Rectangle 1400 x 800 shower tray
Z1178A Rectangle 1400 x 900 shower tray
As Shown

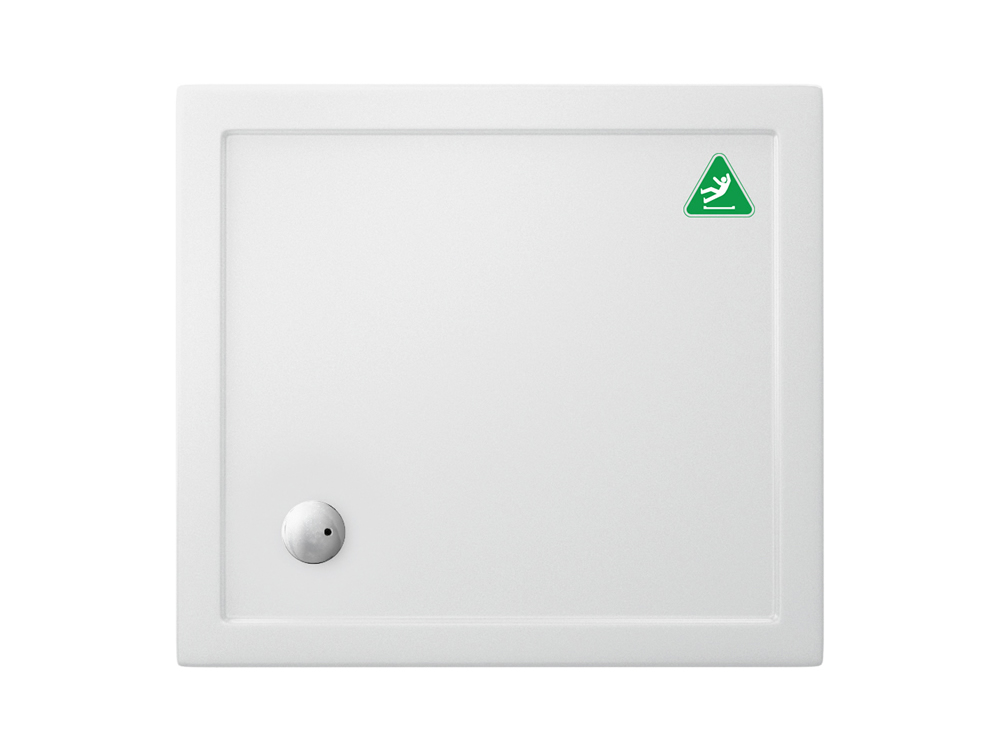

Z1168A Rectangle 1000 x 900 x 35mm tray anti-slip
Z1168A  -  Combined product code
Colour
Z1168A - tray - Gloss White
Material
Z1168A - tray - Acrylic
Size
Z1168A - 900 x 1000 x 35mm
Nett Weight
Z1168A - tray - 9.5kg
Gross Weight Including Packaging
Z1168A - tray - 11.5kg
Packed Dimension
Z1168A - 1050 x 950 x 40 = 0.0399 m3
Guarantee
Lifetime guarantee*
*Full terms & conditions here
Standards Information
EN 14527 CE
EN 251 Shower trays - Connecting dimensions
Additional Information
90mm waste diameter
Underside of tray pre-marked for fitting of feet
10 years guarantee
Subject to patent number GB 2440719(A)
Compatible Products
Z1208 -    Waterproof sealing strip
ZP1.ZL1 -    Panel Pack A
Downloads
  • Instructions - PDF - Z1168A (English)
  • Instructions - PDF - Z1168A (French)
  • 3D DWG - File - DWG  -  Z1168A (BSH-1090S.dwg)
  • 3D DXF - File - DXF  -  Z1168A (BSH-1090S.dxf)
  • 3D IGS - File - IGS  -  Z1168A (BSH-1090S.igs)
  • 3D RFA BIMM Objects - File - RFA  -  Z1168A (Z1168.rfa)
  • Product image 1 - jpg

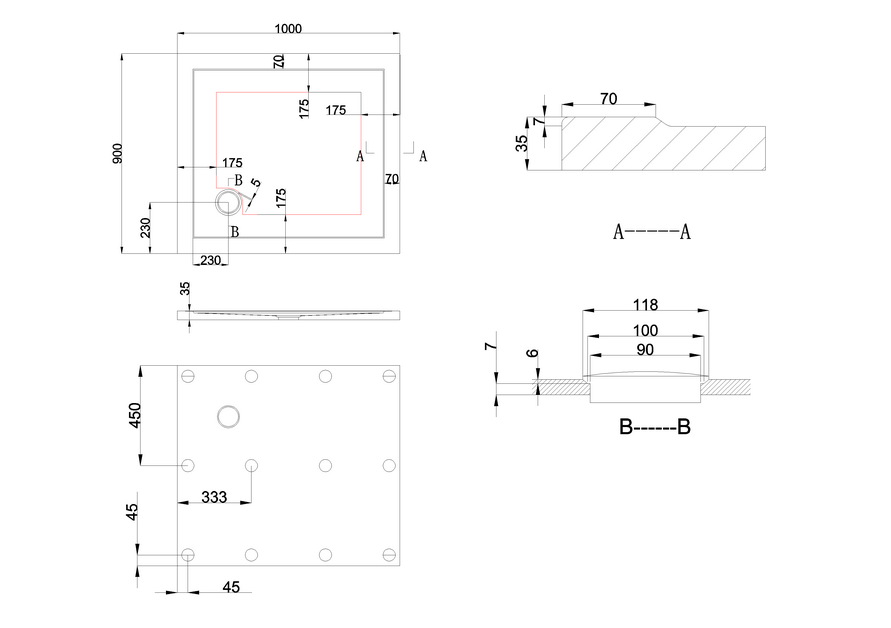

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
