Large Rectangle

asaq2.Model.Web_product_new?.web_name

Alternate Text

This product is available in multiple options (Click on any option to show details for that option)
Z1179	Rectangle 1500 x 700 shower tray
Z1180	Rectangle 1500 x 760 shower tray
Z1181	Rectangle 1500 x 800 shower tray
Z1361	Rectangle 1500 x 900 shower tray
Z1182	Rectangle 1600 x 700 shower tray
Z1231	Rectangle 1600 x 800 shower tray
Z1232	Rectangle 1600 x 900 shower tray
Z1183	Rectangle 1700 x 700 shower tray
Z1184	Rectangle 1700 x 760 shower tray
Z1185	Rectangle 1700 x 800 shower tray
Z1341	Rectangle 1700 x 900 shower tray
Z1342	Rectangle 1700 x 1000 shower tray
Z1343	Rectangle 1800 x 800 shower tray
Z1245	Rectangle 1800 x 900 shower tray
Z1344	Rectangle 1800 x 1000 shower tray
Z1345	Rectangle 2000 x 800 shower tray
Z1346	Rectangle 2000 x 900 shower tray
Z1347	Rectangle 2000 x 1000 shower tray

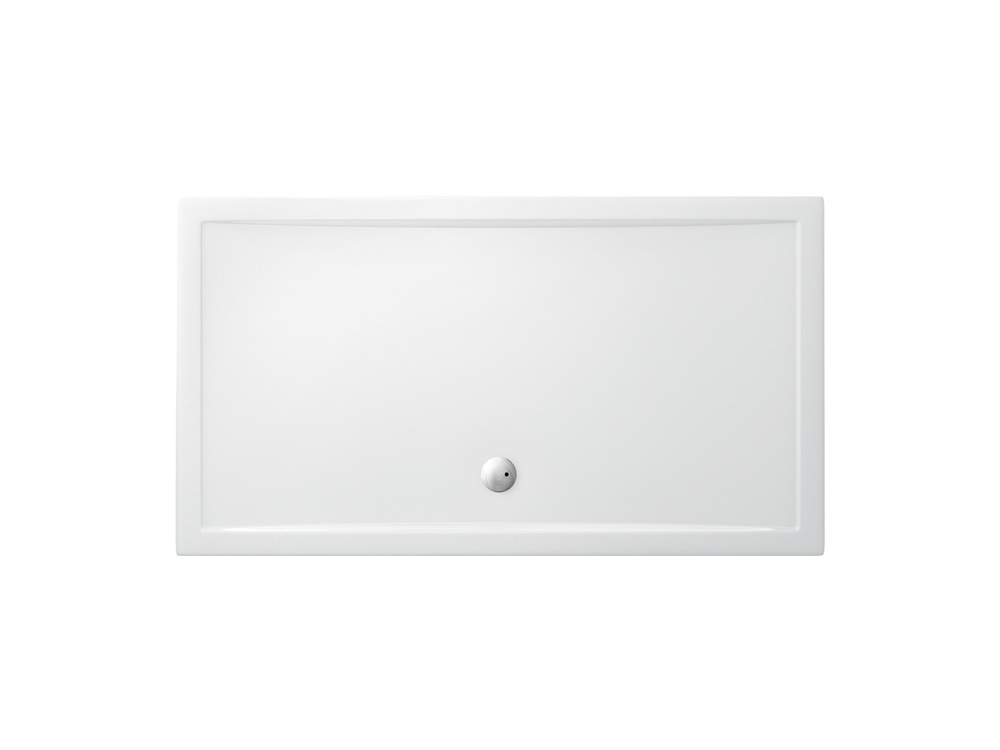

As Shown

Z1344 Rectangle tray

Z1344 - Combined product code

Colour

Z1344 - tray - Gloss White

Material

Z1344 - tray - Acrylic

Size

Z1344 - 1000 x 1800 x 35mm

Nett Weight

Z1344 - tray - 20kg

Gross Weight Including Packaging

Z1344 - tray - 21kg

Packed Dimension

Z1344 - 1850 x 1050 x 40 = 0.0777 m3

Guarantee

Lifetime guarantee*
*Full terms & conditions here

Standards Information

EN 14527 CE

EN 251 Shower trays - Connecting dimensions

Additional Information

90mm waste diameter

Tray sizes for 1800 and above will have no panels and no leg set.

10 years guarantee

Subject to patent number GB 2440719(A)

Compatible Products

Z1208 - Waterproof sealing strip

Downloads

Instructions - PDF - Z1344 (English)
Instructions - PDF - Z1344 (French)

2D CAD-File - DWG - Z1344 (Z1205 Z1208 Z1344_LD.dwg)
2D Drawing - PDF - Z1344 (Z1205 Z1208 Z1344_LD.pdf) 2D Drawing - PDF - Z1344

3D DWG - File - DWG - Z1344 (1800-10001B2.1345.dwg)
3D DXF - File - DXF - Z1344 (1800-10001B2.1345.dxf)
3D IGS - File - IGS - Z1344 (1800-10001B2.1345.igs)
3D RFA BIMM Objects - File - RFA - Z1344 (Z1344.rfa)

Product image 1 - jpg

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
