Freestanding 650 vanity unit with doors & Classic 650 basin for standard waste & overflow
Product Options
Finish Options
Tap hole options
|
Dark Olive
|
Sand
|
Matt White
|
Classic Grey
|
Blue
|
Matt Green
|
1 tap hole
|
2 tap holes
|
3 tap holes
|
As Shown
| B153TH − |
| FF8O − |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 14688:2015 |
|
BS EN 31:2011 |
|
EN14749:2016 |
Additional Information
|
A lacquered top coat with 3 layers of primer featuring UV stabilization to minimise colour fading from exposure to sunlight. |
|
Doors are soft closing |
|
Chrome plated metal handles |
|
Fully assembled |
|
One adjustable glass shelf. |
| SP669 | adjustable leg 80mm for FF8, FF9, FC9, FC10, FC1, FC2, FC3, FC4, FC5 |
| SPFF8DP_O | flat door paenel for FF8O, FC9O, FC1O, FC2O, FC3O |
| SP758 | plinth for FF8O, FF9O |
| SPFF8TF-O | top fascia for FF8O, FC9O |
Downloads
-
2D CAD-File - DWG -
FF8O_B15 3TH
(FF8_B15 3TH.dwg)
-

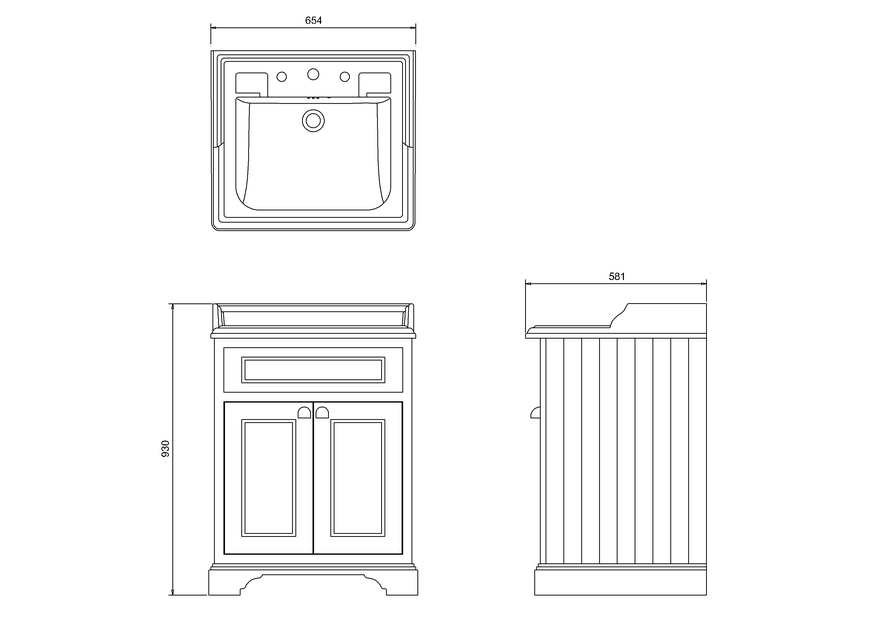

2D Drawing - PDF -
FF8O_B15 3TH
(FF8_B15 3TH.pdf)
2D Drawing - PDF - FF8O_B15 3TH
-
3D DWG - File - DWG
-
FF8O_B15 3TH
(90525.dwg)
-
3D DXF - File - DXF
-
FF8O_B15 3TH
(90525.dxf)
-
3D IGS - File - IGS
-
FF8O_B15 3TH
(90525.igs)
-
3D RFA BIMM Objects - File - RFA
-
FF8O_B15 3TH
(90525.rfa)
