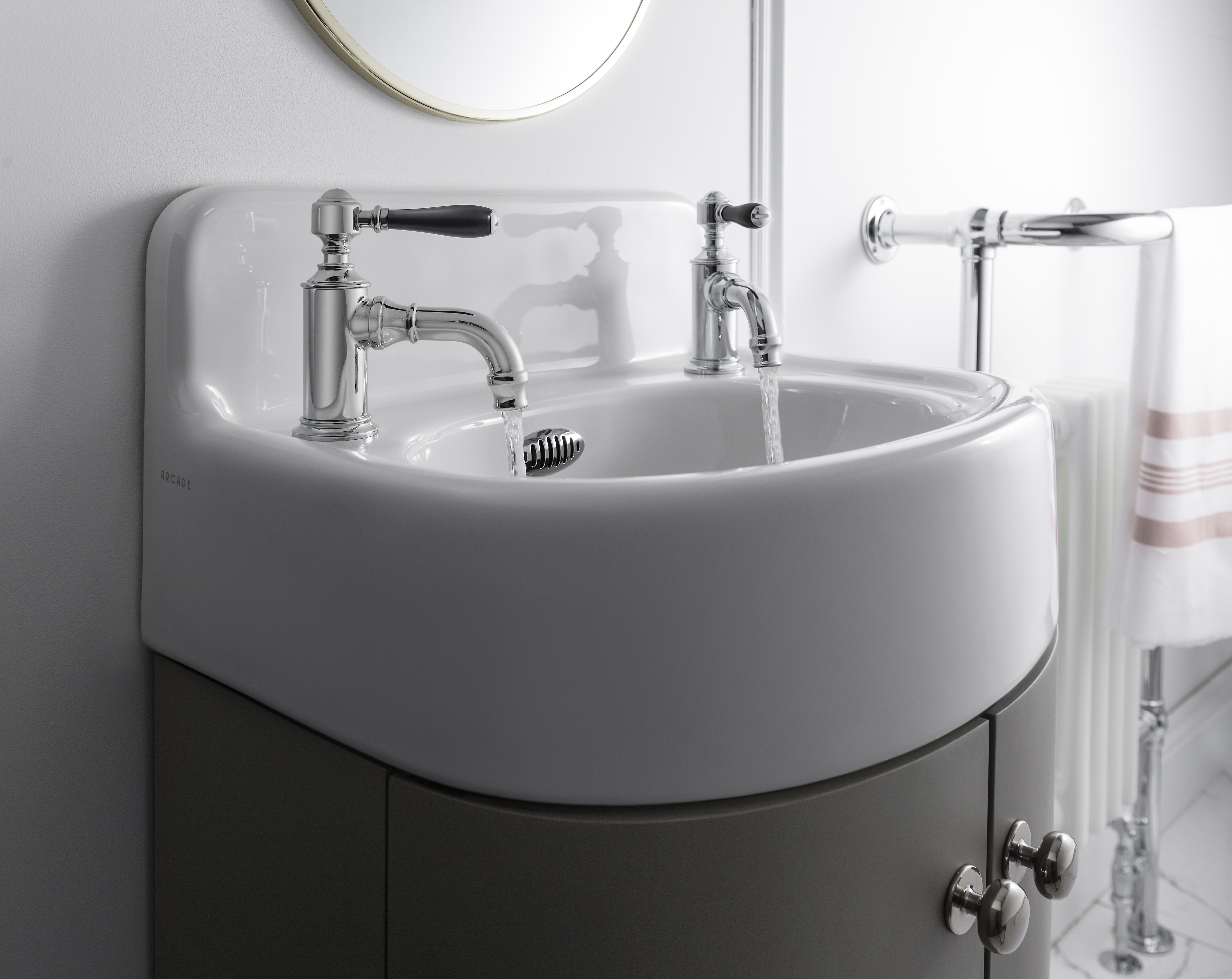

Arcade single-lever basin mixer without pop up waste
Product Options
finish options
handle options
|
chrome
|
nickel
|
crosshead handle
|
brass lever
|
white ceramic lever
|
gloss black ceramic lever
|
As Shown
| ARC 2012 CHR Arcade single lever basin mixer without pop up waste - chrome |
| ARC66 CHR Gloss black ceramic tap levers (pair) - chrome |
| ABL12C - Combined product code |
Gross Weight Including Packaging
| ARC 2012 CHR - tap - 1.4kg |
| ARC66 CHR - tap handle - 0.41kg |
Guarantee
|
15 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 200:2008 |
Additional Information
|
Supplied with flow straighter for use with low water pressure |
|
Also supplied with aerator for use with high water pressure |
Flow Rates
| System Pressure | 0.2 bar | 0.5 bar | 1 bar | 2 bar | 3 bar | 4 bar | 5 bar |
|---|---|---|---|---|---|---|---|
| Aerator | 2.83 | 4.9 | 7.56 | 10.83 | 13.61 | 15.5 | 17.56 |
| Flow Straighter | 4.51 | 8.34 | 12.18 | 17.9 | 22.26 | 25.75 | 29.13 |
| ARCSP140 CHR | chrome finish Crosshead handle (single piece) for Arcade basin taps(ARC12 CHR, ARC2012 CHR) and Arcade bath tap(ARC2018 CHR, ARC18 CHR, ARC2019 CHR, ARC19 CHR) |
| ARCSP182 | flow straightener for Arcade Basin taps |
| SP1769 | handle base set in chrome for product ARC 2012 CHR, ARC 2013 CHR |
| SP1491 | screw set (1pc) for Arcade tap handle(except ARC12, ARC12 CHR, ARC35, ARC35 CHR) |
Downloads
- Instructions - PDF - ARC 2012 CHR (English)
- Instructions - PDF - ARC66 CHR (English)
- Instructions - PDF - ARC66 CHR (French)
- Instructions - PDF - ARC 2012 CHR (French)
-
2D CAD-File - DWG -
ABL12C
(ARC 2012_ARC65_ARC66 _NKL_CHR.dwg)
-

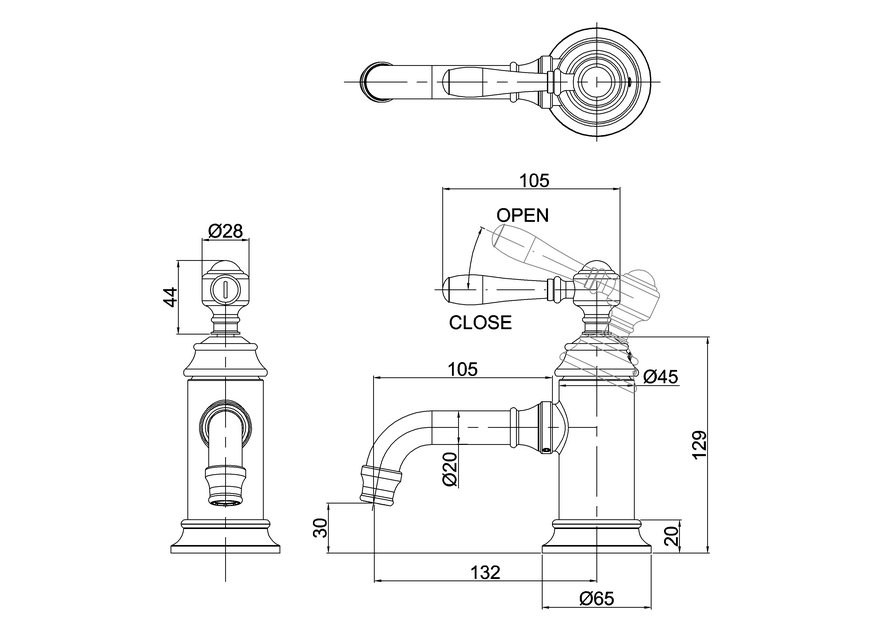

2D Drawing - PDF -
ABL12C
(ARC 2012_ARC65_ARC66 _NKL_CHR.pdf)
2D Drawing - PDF - ARC12 CHR
-
3D RFA BIMM Objects - File - RFA
-
ABL12C
(AWL12C.rfa)
- 3D IGS - File - IGS - ARC 2012 CHR (ARC 2012.igs)
- 3D IGS - File - IGS - ARC66 CHR (ARC66.igs)
