Arcade single-lever basin mixer without pop up waste

asaq2.Model.Web_product_new?.web_name

Product Options

finish options

Arcade Single-lever basin mixer without pop up waste - chrome - with ceramic lever

chrome

Arcade Single-lever basin mixer without pop up waste - nickel - with ceramic lever

nickel

handle options

Arcade Single-lever basin mixer without pop up waste - chrome - with tap handle

crosshead handle

Arcade Single-lever basin mixer without pop up waste - chrome - with brass lever

brass lever

Arcade Single-lever basin mixer without pop up waste - chrome - with ceramic lever

white ceramic lever

Arcade Single-lever basin mixer without pop up waste - chrome - with black lever

gloss black ceramic lever

Alternate Text

As Shown

ARC65 CHR white ceramic tap levers (pair)

ARC 2012 CHR Arcade single lever basin mixer without pop up waste - chrome

AWL12C - Combined product code

Colour

ARC65 CHR - tap handle - chrome & white

ARC 2012 CHR - tap - Polished Chrome

Material

ARC65 CHR - tap handle - brass

ARC 2012 CHR - tap - Brass

Size

ARC65 CHR - 105 x 28 x 44mm

ARC 2012 CHR - 174.5 x 65 x 176mm

Nett Weight

ARC65 CHR - tap handle - 0.33kg

ARC 2012 CHR - tap - 1.2kg

Gross Weight Including Packaging

ARC65 CHR - tap handle - 0.41kg

ARC 2012 CHR - tap - 1.4kg

Packed Dimension

ARC65 CHR - 155 x 75 x 40 = 0.0005 m3

ARC 2012 CHR - 285 x 235 x 72 = 0.0048 m3

Guarantee

15 year guarantee*
*Full terms & conditions here

Standards Information

BS EN 200:2008

Additional Information

Supplied with flow straighter for use with low water pressure

Also supplied with aerator for use with high water pressure

Flow Rates

System Pressure	0.2 bar	0.5 bar	1 bar	2 bar	3 bar	4 bar	5 bar
Aerator	2.83	4.9	7.56	10.83	13.61	15.5	17.56
Flow Straighter	4.51	8.34	12.18	17.9	22.26	25.75	29.13

ARCSP140 CHR	chrome finish Crosshead handle (single piece) for Arcade basin taps(ARC12 CHR, ARC2012 CHR) and Arcade bath tap(ARC2018 CHR, ARC18 CHR, ARC2019 CHR, ARC19 CHR)
ARCSP182	flow straightener for Arcade Basin taps
SP1769	handle base set in chrome for product ARC 2012 CHR, ARC 2013 CHR

Downloads

Instructions - PDF - ARC65 CHR (English)
Instructions - PDF - ARC 2012 CHR (English)
Instructions - PDF - ARC65 CHR (French)
Instructions - PDF - ARC 2012 CHR (French)

2D CAD-File - DWG - AWL12C (ARC 2012_ARC65_ARC66 _NKL_CHR.dwg)
2D Drawing - PDF - AWL12C (ARC 2012_ARC65_ARC66 _NKL_CHR.pdf) 2D Drawing - PDF - ARC12 CHR

3D RFA BIMM Objects - File - RFA - AWL12C (AWL12C.rfa)
3D IGS - File - IGS - ARC65 CHR (ARC65.igs)
3D IGS - File - IGS - ARC 2012 CHR (ARC 2012.igs)

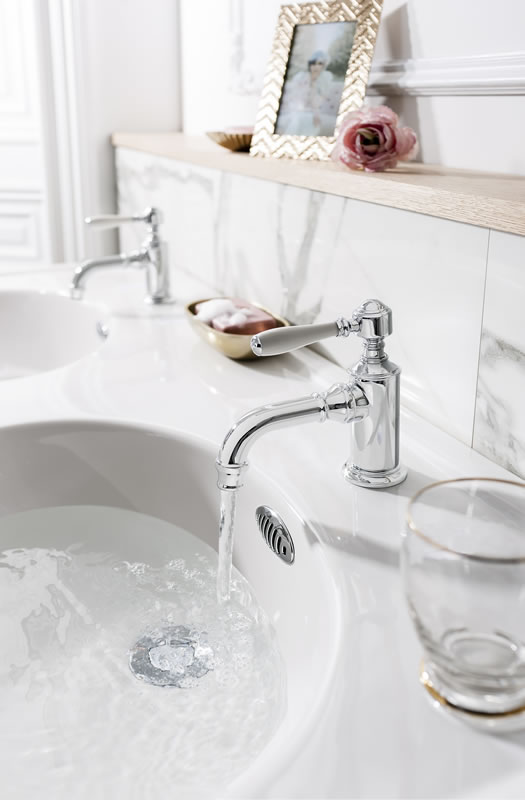

Lifestyle image 1 -

jpg

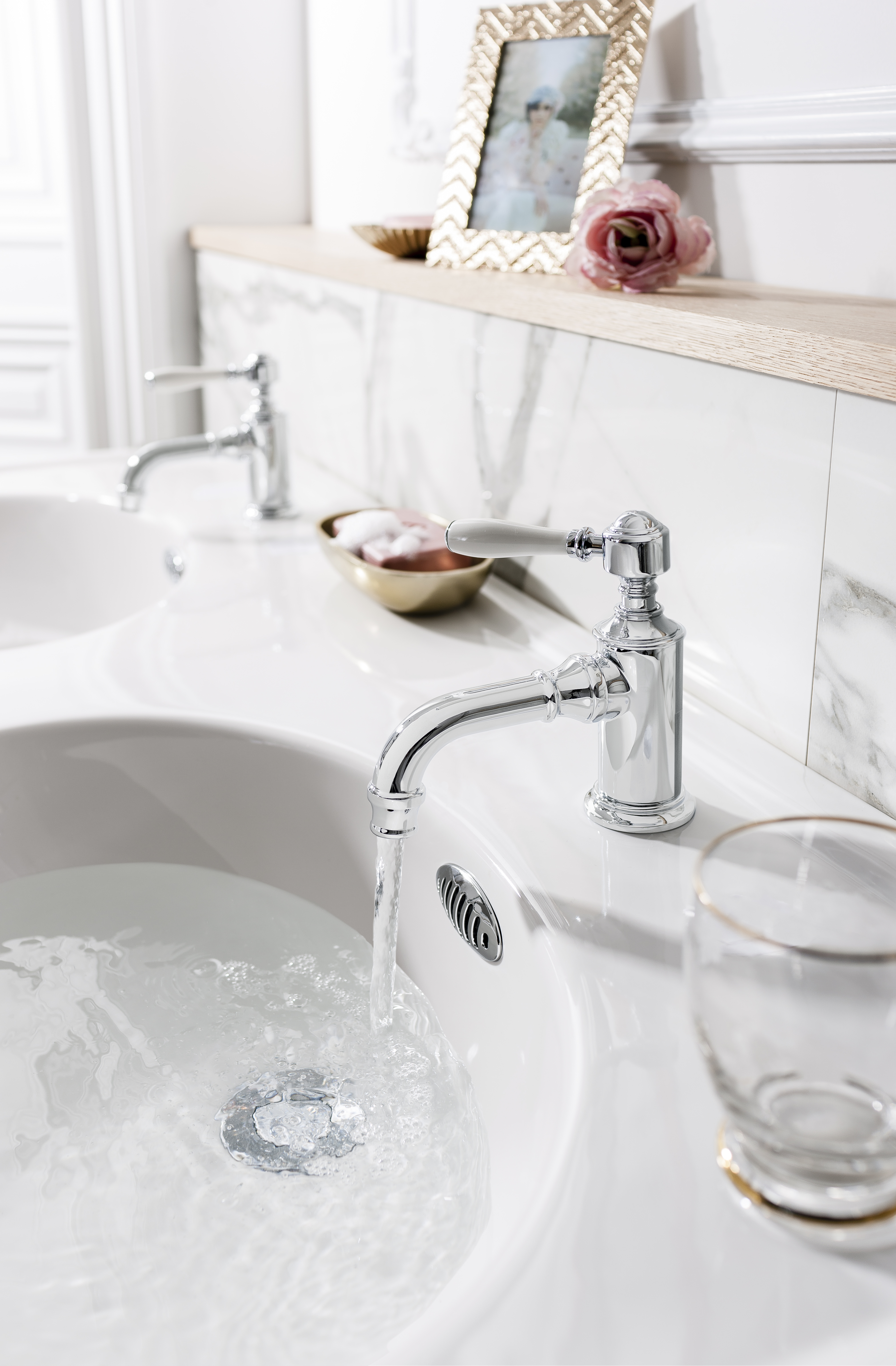

Lifestyle image 2 -

jpg

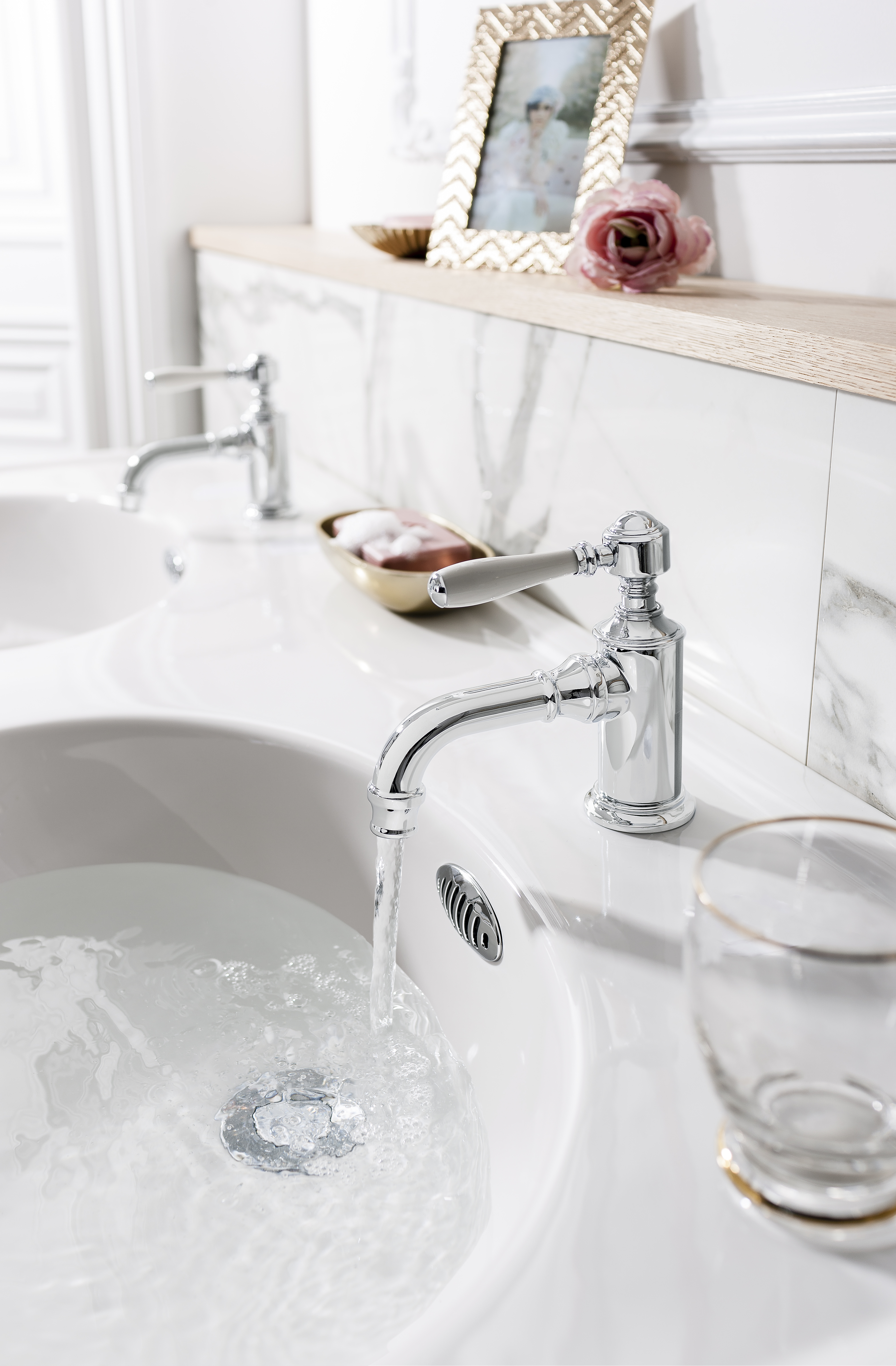

Lifestyle image 3 -

jpg

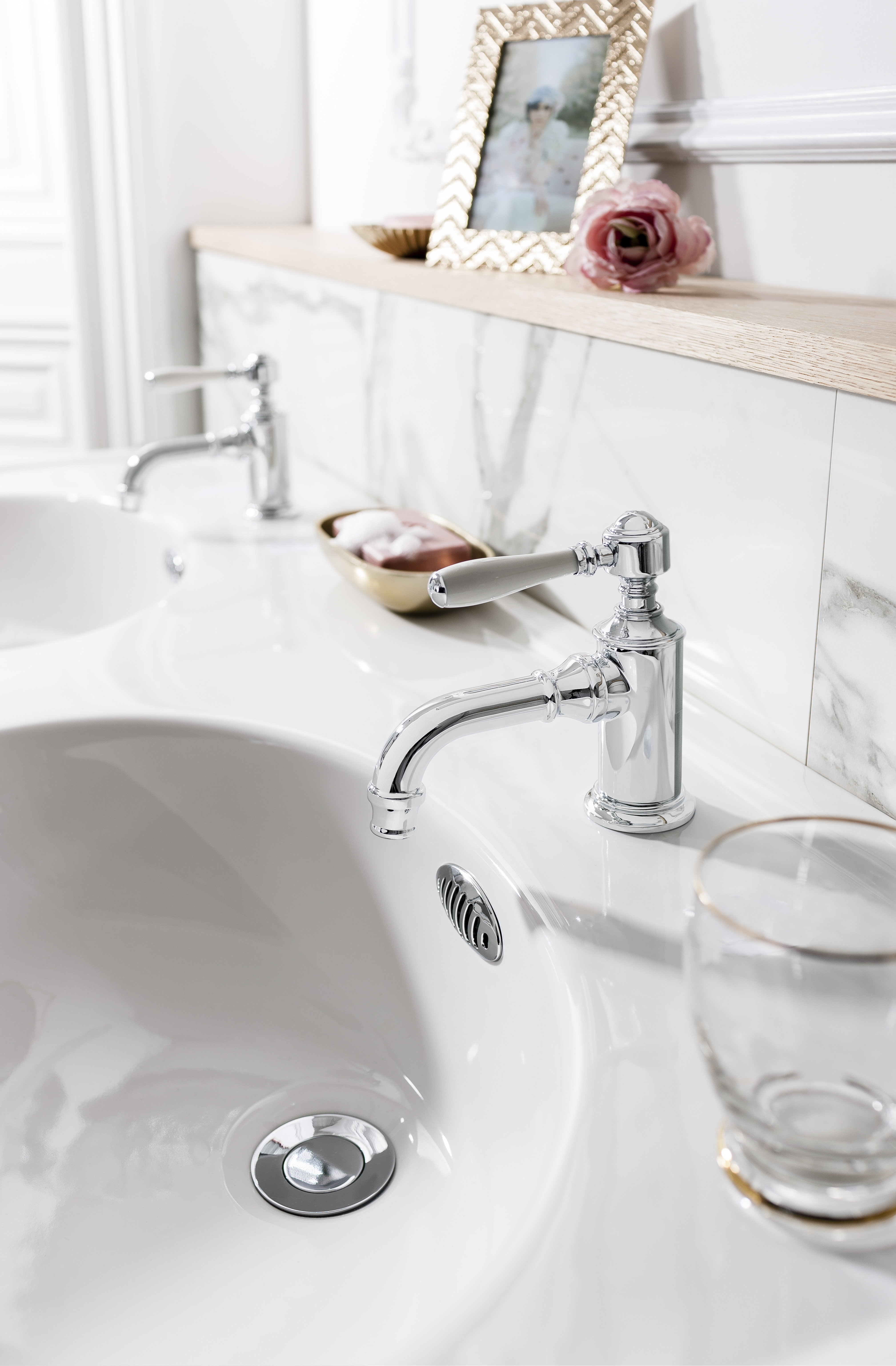

Product image 1 - jpg

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
