600mm basin
asaq2.Model.Web_product_new?.web_name
Product Options
mounting options

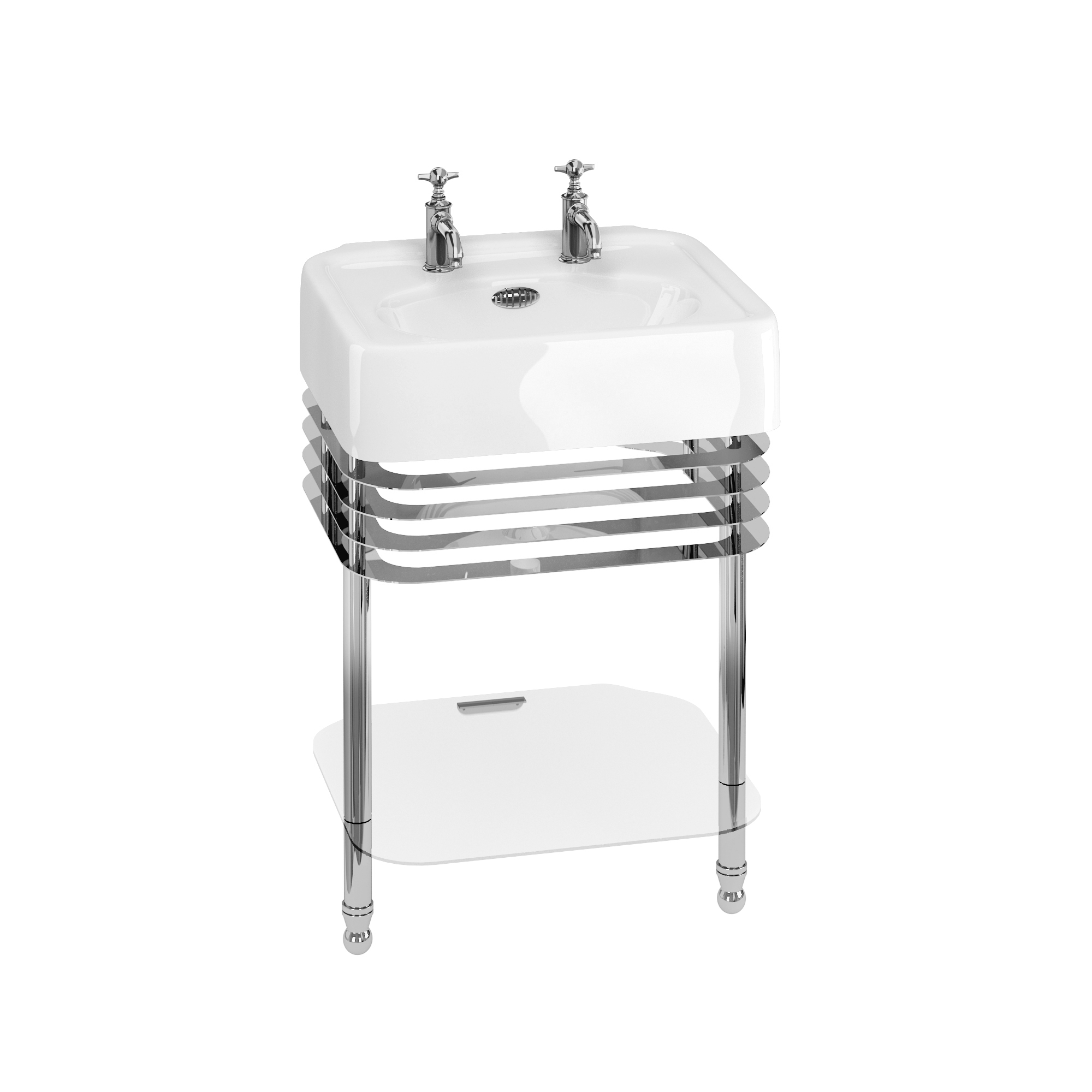

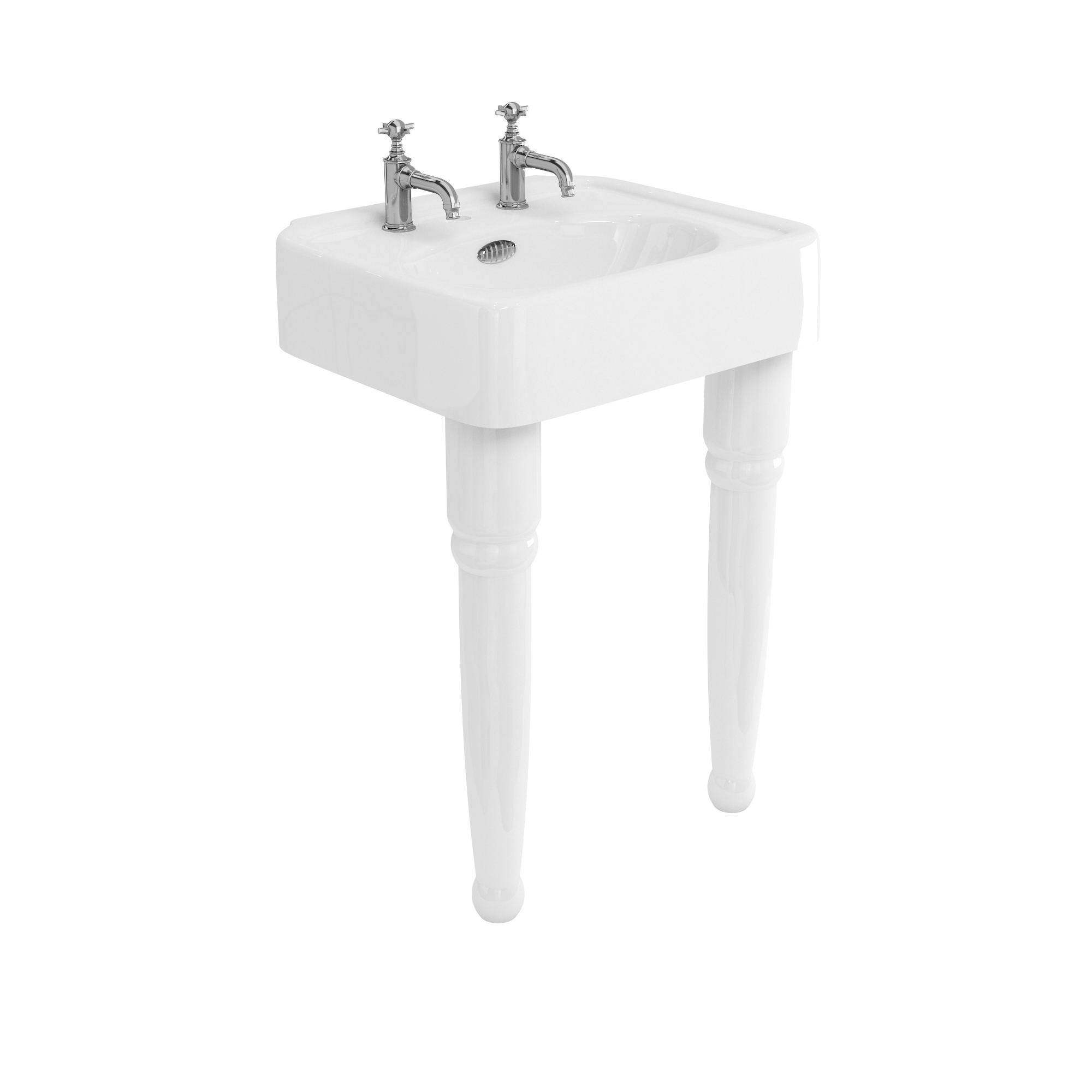

Arcade 600mm basin with chrome overflow & pedestal pedestal Arcade 600mm basin with chrome overflow & basin stand basin stand Arcade 600mm basin with chrome overflow & ceramic console legs ceramic console legs
overflow finish options
Arcade 600mm basin with nickel overflow & pedestal nickel overflow Arcade 600mm basin with chrome overflow & pedestal chrome overflow
tap hole options
Arcade 600mm basin with chrome overflow & pedestal no tap holes Arcade 600mm basin with chrome overflow & pedestal 1 tap hole Arcade 600mm basin with chrome overflow & pedestal 2 tap holes Arcade 600mm basin with chrome overflow & pedestal 3 tap holes
Alternate Text
As Shown
ARC600 2TH 600mm Arcade basin 2TH
ARC1 Arcade pedestal
A68CHR Basin overflow
Colour
ARC600 2TH - basin - Gloss White
ARC1 - pedestal - Gloss White
A68CHR - overflow - Polished Chrome
Material
ARC600 2TH - basin - Fine Fire Clay
ARC1 - pedestal - Fine Fire Clay
A68CHR - overflow - ABS
Size
ARC600 2TH - 525 x 605 x 200mm
ARC1 - 310 x 320 x 712mm
A68CHR - 66 x 31 x 22mm
Nett Weight
ARC600 2TH - basin - 20.4kg
ARC1 - pedestal - 14.45kg
A68CHR - overflow - 0.006kg
Gross Weight Including Packaging
ARC600 2TH - basin - 22.55kg
ARC1 - pedestal - 16.1kg
A68CHR - overflow - 0.01kg
Packed Dimension
ARC600 2TH - 615 x 225 x 545 = 0.0754 m3
ARC1 - 720 x 332 x 330 = 0.0789 m3
A68CHR - 85 x 45 x 35 = 0.0001 m3
Tap Hole Options
0,1,2 or 3
Guarantee
Lifetime guarantee*
*Full terms & conditions here
Standards Information
BS EN 14688:2015
BS EN 31:2011
Additional Information
To order the correct tap hole configuration simply use NTH, 1TH, 2TH or 3TH at the end of the basin product code.
The overflow is to solve the issue of a dripping tap if the plug is left in. It is not designed to take a flowing tap.
A chrome overflow ring availabel as optional item(A68 CHR).
Compatible Products
W18 NKL -    Flip top basin waste (for basins with overflow )
ARCW18 CHR -    Arcade flip top basin waste (for basins with overflow )
A68CHR arcade overflow of basin - chrome
ARCSP8 arcade overflow ring - nickel
Downloads
  • Instructions - PDF - A68CHR (English)
  • 3D DWG - File - DWG  -  ARC600 2TH ARC1 (80041.dwg)
  • 3D DXF - File - DXF  -  ARC600 2TH ARC1 (80041.dxf)
  • 3D IGS - File - IGS  -  ARC600 2TH ARC1 (80041.igs)
  • 3D RFA BIMM Objects - File - RFA  -  ARC600 2TH ARC1 (80041.rfa)
  • Product image 1 - jpg
* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
