600mm basin
Product Options
mounting options
overflow finish options
tap hole options
|
pedestal
|

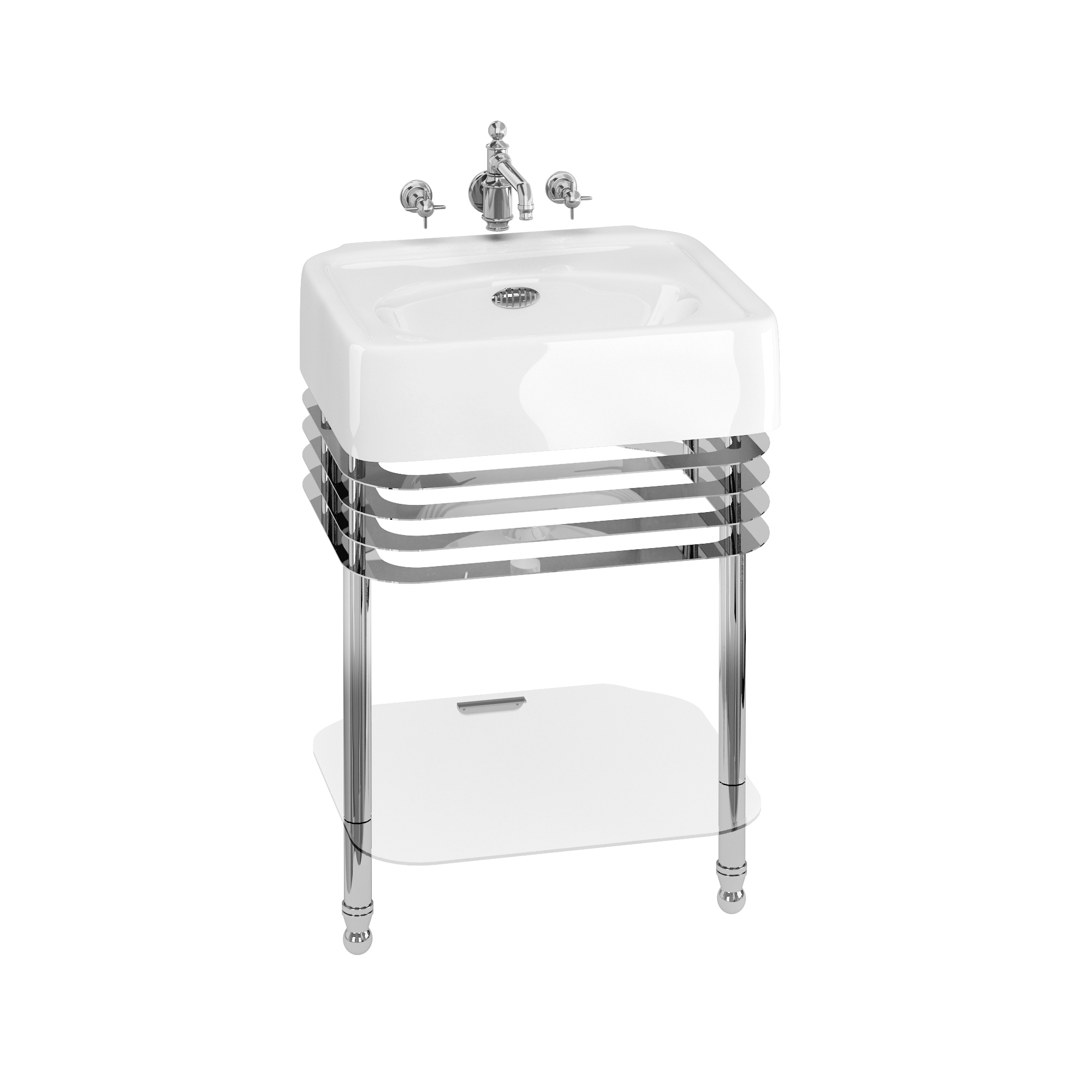

basin stand
|

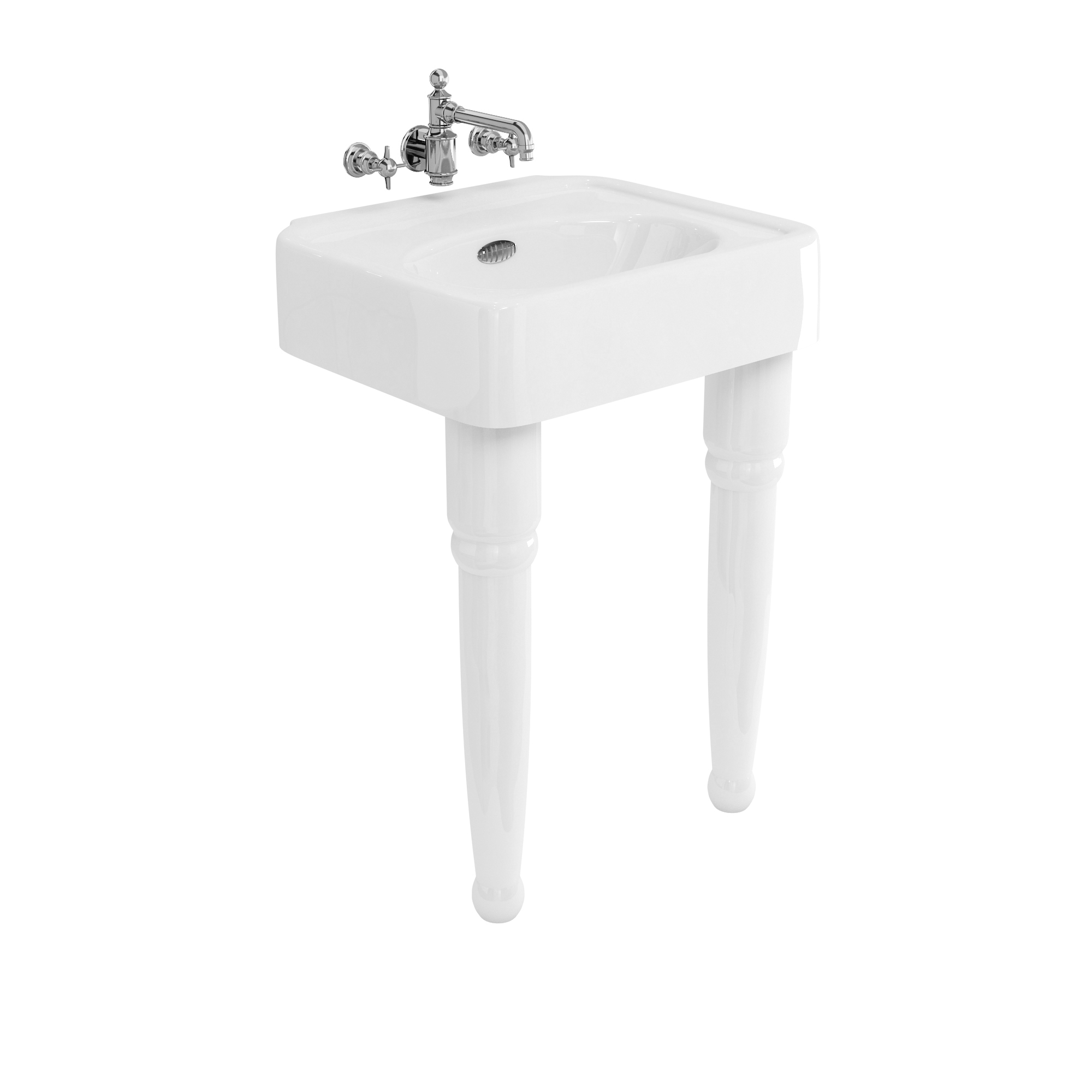

ceramic console legs
|
nickel overflow
|
chrome overflow
|
|
no tap holes
|
1 tap hole
|
2 tap holes
|
3 tap holes
|
As Shown
| ARC600 NTH 600mm Arcade basin |
| ARC1 Arcade pedestal |
| A68CHR Basin overflow |
Colour
| ARC600 NTH - basin - Gloss White |
| ARC1 - pedestal - Gloss White |
| A68CHR - overflow - Polished Chrome |
Material
| ARC600 NTH - basin - Fine Fire Clay |
| ARC1 - pedestal - Fine Fire Clay |
| A68CHR - overflow - ABS |
Gross Weight Including Packaging
| ARC600 NTH - basin - 22.55kg |
| ARC1 - pedestal - 16.1kg |
| A68CHR - overflow - 0.01kg |
Packed Dimension
| ARC600 NTH - 615 x 225 x 545 = 0.0754 m3 |
| ARC1 - 720 x 332 x 330 = 0.0789 m3 |
| A68CHR - 85 x 45 x 35 = 0.0001 m3 |
Tap Hole Options
| Available with no(NT), one(1TH), two(2TH) or three(3TH) tap holes. |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 14688:2015 |
|
BS EN 31:2011 |
Additional Information
|
To order the correct tap hole configuration simply use NTH, 1TH, 2TH or 3TH at the end of the basin product code. |
|
The overflow is to solve the issue of a dripping tap if the plug is left in. It is not designed to take a flowing tap. |
|
A chrome overflow ring availabel as optional item(A68 CHR). |
Compatible Products
| W18 NKL - Flip top basin waste (for basins with overflow ) |
| A68CHR | arcade overflow of basin - chrome |
| ARCSP8 | arcade overflow ring - nickel |
Downloads
-
2D CAD-File - DWG -
ARC600 NTH ARC1
(ARC1-ARC600 NTH_20201127.dwg)
-
2D Drawing - PDF -
ARC600 NTH ARC1
(ARC1-ARC600 NTH_20201127.pdf)
2D Drawing - PDF - ARC600 NTH ARC1
-
3D DWG - File - DWG
-
ARC600 NTH ARC1
(80035.dwg)
-
3D DXF - File - DXF
-
ARC600 NTH ARC1
(80035.dxf)
-
3D IGS - File - IGS
-
ARC600 NTH ARC1
(80035.igs)
-
3D RFA BIMM Objects - File - RFA
-
ARC600 NTH ARC1
(80035.rfa)
