Spey Exposed Thermostatic single function brass valve
Product Options
shower head options
6 inch
|
9 inch
|
12 inch
|
As Shown

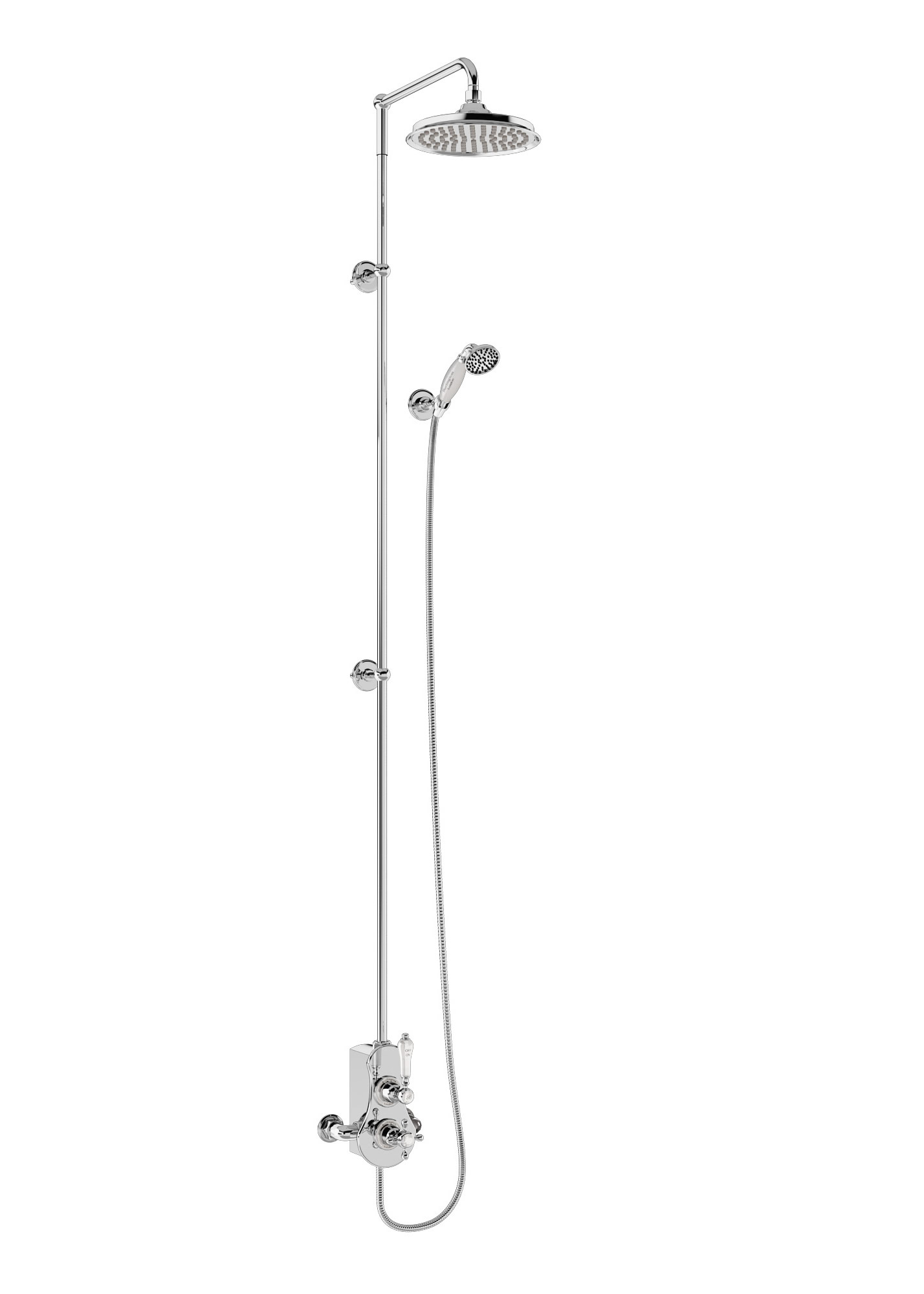

| SF1S Spey Thermostatic Exposed Shower Valve Single Outlet with Swivel Shower Arm |
| V16 6 inch shower rose |
| V22 Extended vertical riser |
| BSF1S.EXT-V16 - Combined product code |
Colour
| SF1S - valve - chrome plated |
| V16 - shower rose - Polished Chrome |
| V22 - riser - Polished Chrome |
Gross Weight Including Packaging
| SF1S - valve - 5.55kg |
| V16 - shower rose - 0.58kg |
| V22 - riser - 2.41kg |
Packed Dimension
| SF1S - 450 x 335 x 190 = 0.0286 m3 |
| V16 - 200 x 190 x 100 = 0.0038 m3 |
| V22 - 1820 x 95 x 70 = 0.0121 m3 |
Guarantee
|
15 year guarantee*
*Full terms & conditions here |
Standards Information
Additional Information
|
Hot & cold inlet ∅22mm |
|
V22 Extended vertical riser is available if required and can be ordered as an option |
|
Traditional brass faceplate, Claremont handle, with ceramic lever |
|
18mm diameter vertical brass shower riser |
|
355mm adjustable swivel shower arm |
|
Image shown is with 6" Airburst shower head. (as shown on image) |
|
The shower head has anti-limescale silicon nipples. |
|
Length of the shower hose is 1500mm. |
|
Large bore shower hose (11mm) |
Compatible Products
| V33 - Slide rail |
| V2 - Anglesey Valve Handle (single) |
| V3 - Birkenhead Valve Handle (single) |
| V23 - Soap basket |
| V24 - Cradle |
Flow Rates
| System Pressure | 0.2 bar | 0.5 bar | 1 bar | 2 bar | 3 bar | 4 bar | 5 bar |
|---|---|---|---|---|---|---|---|
| 12 inch rose | 4.06 | 4.72 | 7.92 | 12.43 | 15.65 | n/a | n/a |
| 6 inch rose | 3.89 | 4.22 | 6.83 | 10.68 | 13.1 | n/a | n/a |
| 9 inch rose | 3.7 | 4.04 | 6.55 | 10.09 | 12.66 | n/a | n/a |
| SP806 | 3x rubber o rings and 1x plastic washer for all finishes products of V21, V22, ARCV21, ARCV22 |
| SP375 | adaptor (pair) G3, 4 male thread to 22mm pipe |
| SP720 | adaptor(pair) G 1, 2 male thread to 22mm |
| SP52 | ceramic part of lever for all finishes products of Burlington showering products (plain version, without any texts) |
| SP614 | ceramic ring for Trent, Severn, Spey |
| SP700 | check valve of all finishes products of TF2S, V34, V36, TF1S, TF3S, SF1S, SF3S |
| SP873 | chrome bevel and threaded part of Burlington & Arcade valve handles |
| SP110 | chrome compression nut and olive for V21, V22, V31, V27 |
| V1 | claremont valve handle 1 (single) |
| SP596 | claremont valve handle for all valves, (except Stour) |
| SP702 | cover plate for V4, SF1S, SF3S, BF1S, BF2S, BF3S |
| SP606 | face plates for SF1S, VF1S |
| SP554 | fixing nut and compression ring of inlet elbow for product SF1S, SF3S, BF1S, BF3S, BF2S |
| SP599 | grub screw (M4x4) |
| SP603 | grub screw (M5x5) for all finishes products of SF1S, SF3S, AF1S, AF3S, GU422DC, GU422DG, GU422DL |
| SP313 | hent F3 flow control cartridge |
| SP753 | lever holder for Trent, Severn, Avon, Spey shower valves |
| SP726 | metal block for Trent, Severn, Eden, Spey shower valves |
| SP662 | one unit of wall Bracket for V21and V22(28-171mm) |
| SP959 | retaining nut for all finishes products of TF1S, TF1H, VF1S, SF1S, TF3S, VF3S, SF3S, ARC73, ARC64 |
| SP815 | retaining sleeve of thermostatic cartridge for product V50, V51, V52, TF1S, TF1H, TF2S, TF3C, VF1S, VF3S, SF1S, SF3S, ARC64 CHR, ARC73 CHR |
| SP601 | small grub screw (M4x4) |
| SP719 | straight adapters of BF1S, BF2S, BF3S, SF1S, SF3S |
| V11_1 | straight shower arm for vertical riser mounting |
| SP1147 | the bracket for BF3S, BF2S, SF3S, V21, V22 (including screws) |
| SP592 | top lever (including thread) for Spey, Stour, Trent, Avon, Severn (on, off indices) |
| SP314 | VQT1 temperature control cartridge |
| SP929 | wall & floor fixing screws & plugs for product AF1S, AF3S, W6, W7, W8N, V12, V22, V33, W24, ARC40 CHR, ARC64 CHR,, ARC74 CHR, TF1H |
