Spey Exposed Thermostatic single function brass valve

Product Options

shower head options

6 inch

9 inch

12 inch

As Shown

SF1S −

V17 −

V22 −

BSF1S.EXT-V17 - Combined product code

Guarantee

15 year guarantee*
*Full terms & conditions here

Standards Information

Additional Information

Hot & cold inlet ∅22mm

V22 Extended vertical riser is available if required and can be ordered as an option

Traditional brass faceplate, Claremont handle, with ceramic lever

18mm diameter vertical brass shower riser

355mm adjustable swivel shower arm

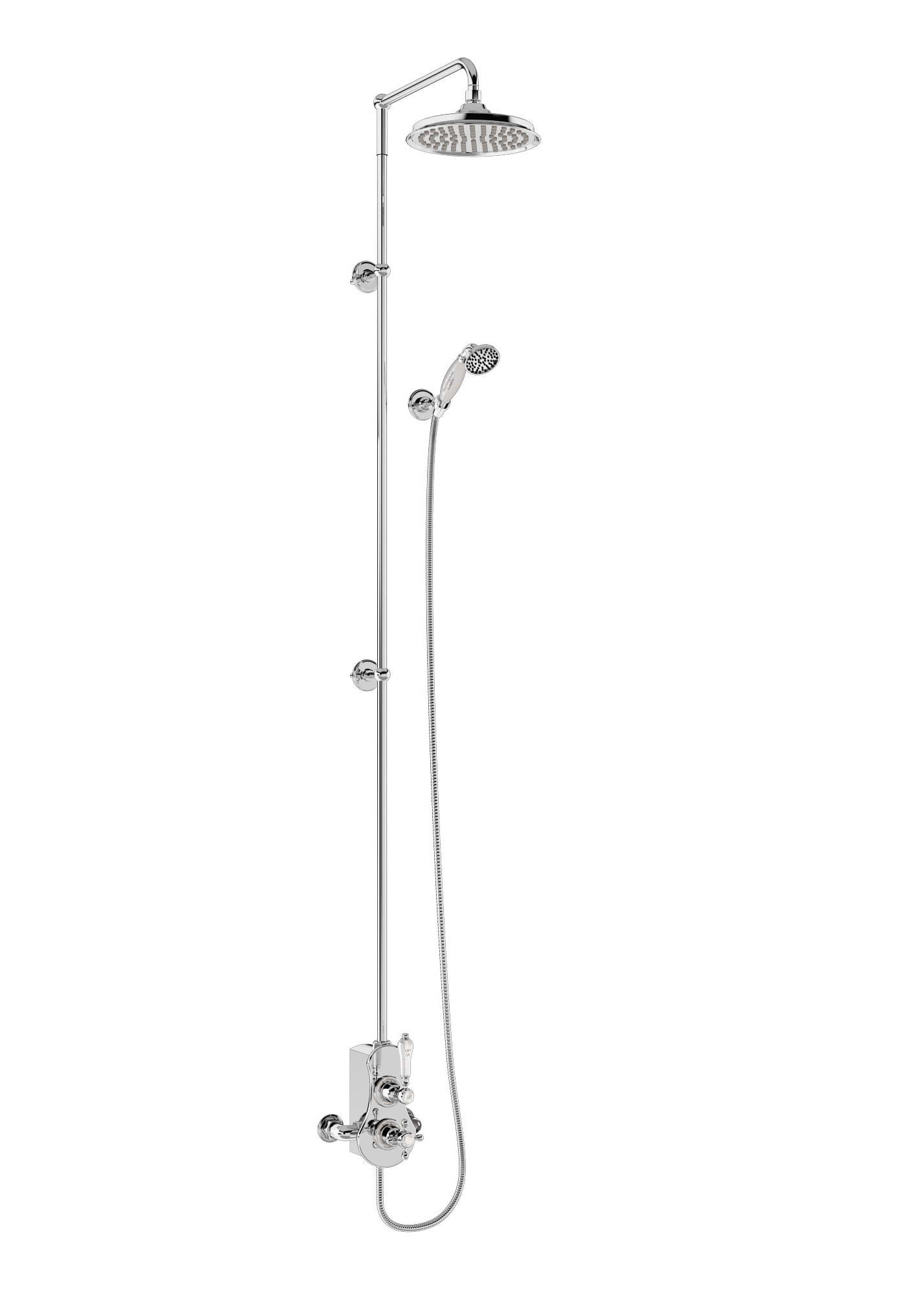

Image shown is with 6" Airburst shower head. (as shown on image)

The shower head has anti-limescale silicon nipples.

Length of the shower hose is 1500mm.

Large bore shower hose (11mm)

Compatible Products

V33 - Slide rail

V2 - Anglesey Valve Handle (single)

V3 - Birkenhead Valve Handle (single)

V23 - Soap basket

V24 - Cradle

Flow Rates

System Pressure	0.2 bar	0.5 bar	1 bar	2 bar	3 bar	4 bar	5 bar
12 inch rose	4.06	4.72	7.92	12.43	15.65	n/a	n/a
6 inch rose	3.89	4.22	6.83	10.68	13.1	n/a	n/a
9 inch rose	3.7	4.04	6.55	10.09	12.66	n/a	n/a

Spare parts

SP806	3x rubber o rings and 1x plastic washer for all finishes products of V21, V22, ARCV21, ARCV22
SP375	adaptor (pair) G3, 4 male thread to 22mm pipe
SP720	adaptor(pair) G 1, 2 male thread to 22mm
SP52	ceramic part of lever for all finishes products of Burlington showering products (plain version, without any texts)
SP614	ceramic ring for Trent, Severn, Spey
SP700	check valve of all finishes products of TF2S, V34, V36, TF1S, TF3S, SF1S, SF3S
SP873	chrome bevel and threaded part of Burlington & Arcade valve handles
SP110	chrome compression nut and olive for V21, V22, V31, V27
V1	claremont valve handle 1 (single)
SP596	claremont valve handle for all valves, (except Stour)
SP702	cover plate for V4, SF1S, SF3S, BF1S, BF2S, BF3S
SP606	face plates for SF1S, VF1S
SP554	fixing nut and compression ring of inlet elbow for product SF1S, SF3S, BF1S, BF3S, BF2S
SP599	grub screw (M4x4)
SP603	grub screw (M5x5) for all finishes products of SF1S, SF3S, AF1S, AF3S, GU422DC, GU422DG, GU422DL
SP313	hent F3 flow control cartridge
SP753	lever holder for Trent, Severn, Avon, Spey shower valves
SP726	metal block for Trent, Severn, Eden, Spey shower valves
SP662	one unit of wall Bracket for V21and V22(28-171mm)
SP959	retaining nut for all finishes products of TF1S, TF1H, VF1S, SF1S, TF3S, VF3S, SF3S, ARC73, ARC64
SP815	retaining sleeve of thermostatic cartridge for product V50, V51, V52, TF1S, TF1H, TF2S, TF3C, VF1S, VF3S, SF1S, SF3S, ARC64 CHR, ARC73 CHR
SP601	small grub screw (M4x4)
SP719	straight adapters of BF1S, BF2S, BF3S, SF1S, SF3S
V11_1	straight shower arm for vertical riser mounting
SP1147	the bracket for BF3S, BF2S, SF3S, V21, V22 (including screws)
SP592	top lever (including thread) for Spey, Stour, Trent, Avon, Severn (on, off indices)
SP314	VQT1 temperature control cartridge
SP929	wall & floor fixing screws & plugs for product AF1S, AF3S, W6, W7, W8N, V12, V22, V33, W24, ARC40 CHR, ARC64 CHR,, ARC74 CHR, TF1H
