High Level Dual Flush WC
asaq2.Model.Web_product_new?.web_name
Product Options
WC options
Standard high level WC with dual flush ceramic cistern with rod dual flush 52cm wide cistern C5 Standard high level WC with chrome lever cistern with chain single flush 52cm wide cistern C28PK Standard high level WC with dual flush aluminium cistern with rod dual flush brushed aluminium cistern T58ALU Standard high level WC with dual flush black aluminium cistern with rod dual flush black aluminium cistern T60BLA Standard high level WC with dual flush white aluminium cistern with rod dual flush white aluminium cistern T59WHI
flush pipe options
Standard high level WC with chrome lever cistern Chrome
Alternate Text

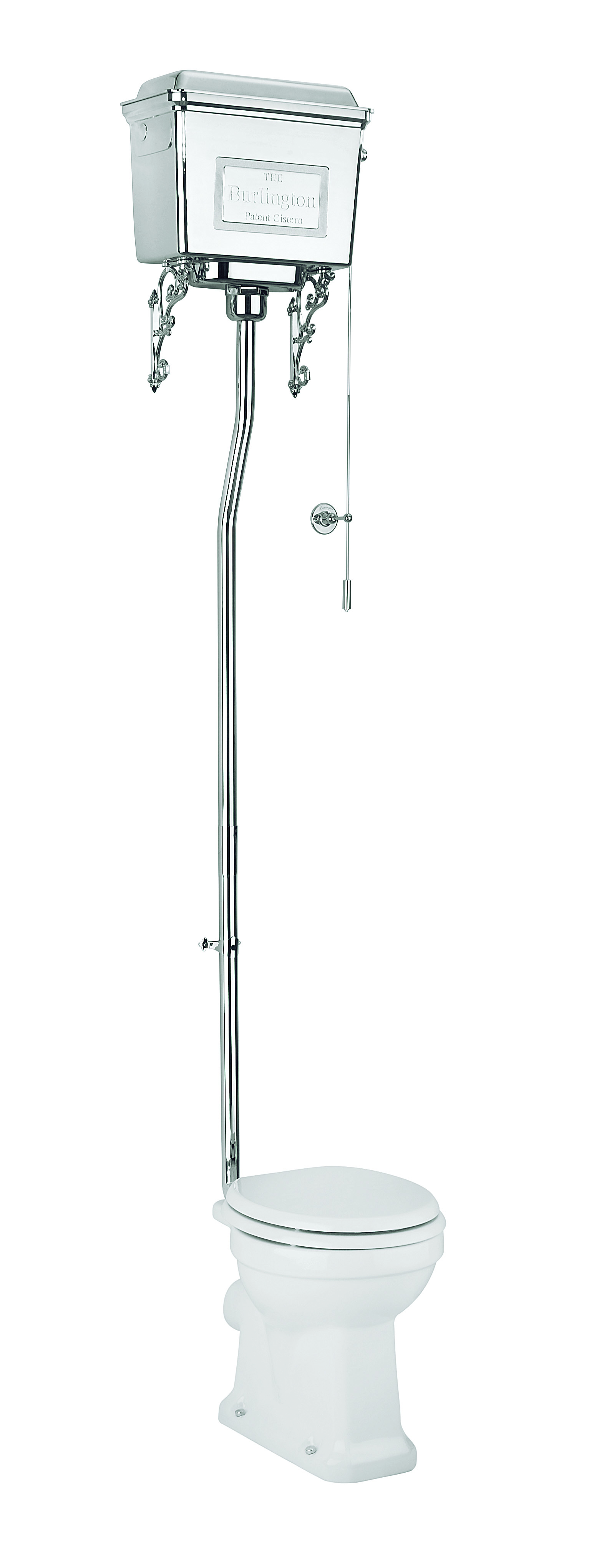

As Shown
T30 CHR High Level Flush Pipe kit including Lever, Rigid pull chain, Flush pipes, reverse screw cistern connector, Stopper and Ornate brackets
P2 Low/high level pan
T70 CHR Chrome Aluminium High Level Cistern including cistern fittings
S14 Traditional high level golden oak WC seat
Guarantee
Lifetime guarantee*
*Full terms & conditions here
Standards Information
T30 CHR  -  WRAS Not Applicable
P2  -  WRAS Not Applicable
T70 CHR  -  WRAS Approved (Cistern Fittings)
S14  -  WRAS Not Applicable
BS EN 997:2012
Chrome plated to BS EN248:2002
Sanitary tapware. General specification for electro deposited coatings of Ni-Cr

BS EN 33:2019
BS EN 14055:2018
Alternate Text
Additional Information
The high level level wc uses a standard low level pan ( P2 ) and specialed high level cistern, connected with a medium level flush pipe kit T30 CHR
The flush mechanism comes in two options : dual flush rod pull cistern C5, or single flush chain pull cistern C28PK
A special flush pipe kit that allows the cistern to be placed on a wall next to the pan is available : Angled Flush Pipe Kit T34 CHR
Low Level wc can be used where the soil pipe is located in the floor. The pan can be located over the soil pipe by cutting the horizontal flush pipe to length.

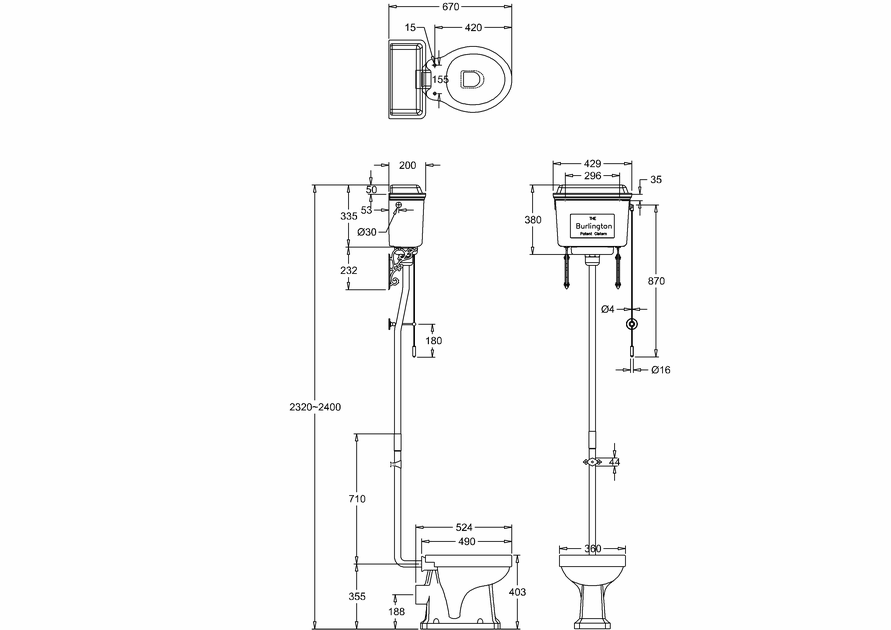

The cistern height can be varied by cutting the vertical flush pipe to length - maximum height is 2,380mm to the top of the cistern, minimum height is 1,625mm.
P trap standard height pan - height from floor to pan rim is 40cm.
Regal Height pan ( floor to pan rim height 48cm ) available : P16
Ceramic soil connection pipes : straight connector to the wall : C29. The S trap connector bending down to the floor : C26
Cistern can be used with optional decorative Ornate Brackets T32 CHR
High level wc can be used with standard Burlington toilet seats or with the Throne seats ( S14 & S15 )
Supplied with floor fixings.
Recommended to be used with cistern tank isolation valve W25
Water Inlet valve hole is located on the side of cistern tank.
Inlet valve (SP7)
SP820 back board of product S14 - oak
SP459 black rubber wedge for T30CHR, T30 GOLD, T30 NKL
SP1353 brass fixing nut for T30 CHR, T31 CHR T33 CHR, T34 CHR, T30 GOLD, T30 NKL
SP429 buffer Clip for T30CHR without black rubber wedge
SP463 buffer used for the ring of S14, S19
SP17A chrome cover caps(pair) for Burlington pans, bidet, semi pedestal and U1
SP1070 cistern lid for T70 CHR, T71 CHR
SP104 control bracket for T30CHR
SP119 decorative cover of cistern connection for T30CHR & T33CHR
SP15 handle for high level cistern from T30CHR kit
SP1044 high level dual flush valve including the cable, control box and cistern lever for product C5, T58 ALU, T59 WHI, T60 BLA, T70 CHR
SP14 high Level Rod for T30 CHR, T34 CHR
SP148 hinge for S14, S15, S19, S20
SP1351 long pull arm for High level cistern from T30CHR kit
SP146 pin screw for T30 CHR
SP918 plastic hole stopper of cistern fittings for high level cisterns
SP17 screw fixing pack for pan and bidet
SP101 spare part for S14, S19
SP1352 spares for T30CHR: screw x 12, rawl plug x 12, rubber spacing washer x 4, pin screw x 1
SP1365 the bottom section of the high level flush pipe
SP387 WC floor fixing plastic plugs and covers - GOLD
