Standard S trap Close Coupled WC
asaq2.Model.Web_product_new?.web_name
Product Options
WC options

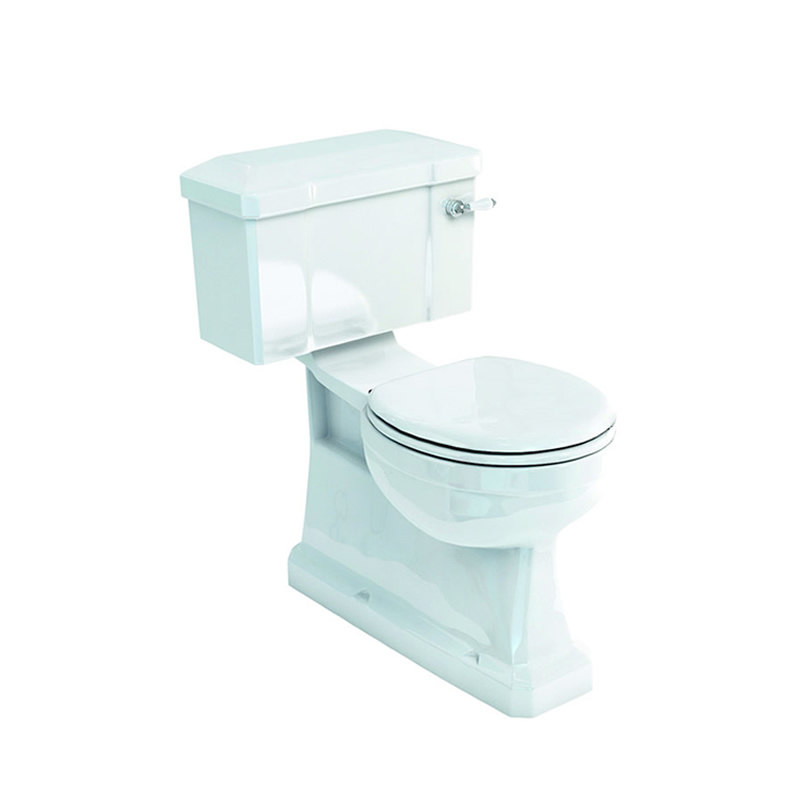

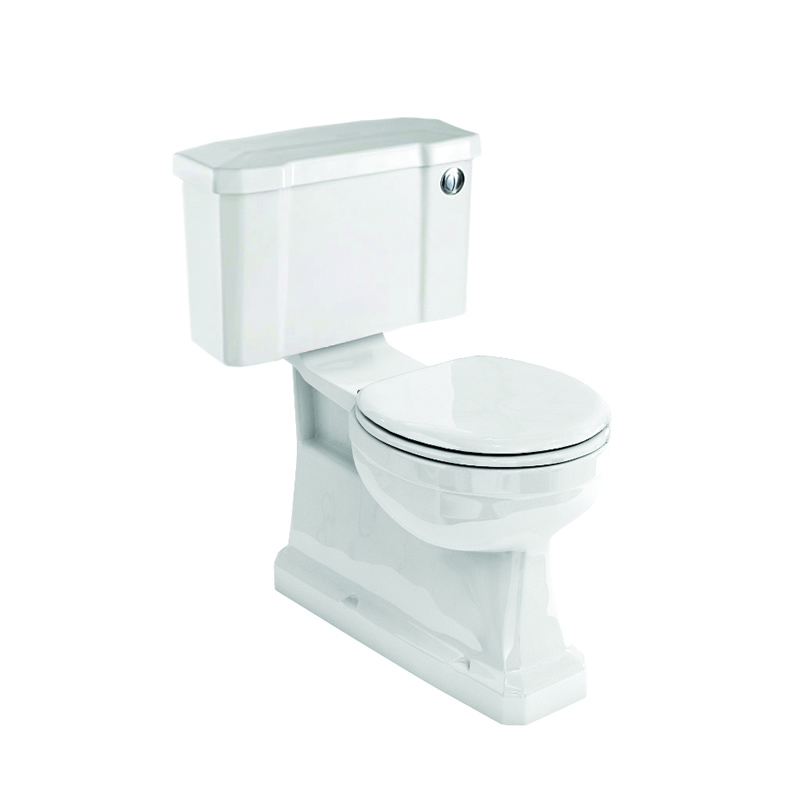

S trap CC WC with 520 lever cistern with lever flush 52cm wide cistern C1 S trap CC WC with 440 lever cistern with lever flush 44cm wide cistern C3 S trap CC WC with 520 front push button cistern with push button flush 52cm wide cistern C2 S trap CC WC with 440 front push button cistern with push button flush 44cm wide cistern C4 S trap CC WC with 520 rear entry lever cistern with lever flush 52cm wide extended depth cistern C30
handle options
lever_chrome.jpg white & chrome S trap CC WC with 520 lever cistern white & nickel S trap CC WC with 520 lever cistern white & gold
S trap CC WC with 520 lever cistern black & chrome S trap CC WC with 520 lever cistern walnut & chrome S trap CC WC with 520 lever cistern - Copy white & brushed nickel
Alternate Text
As Shown

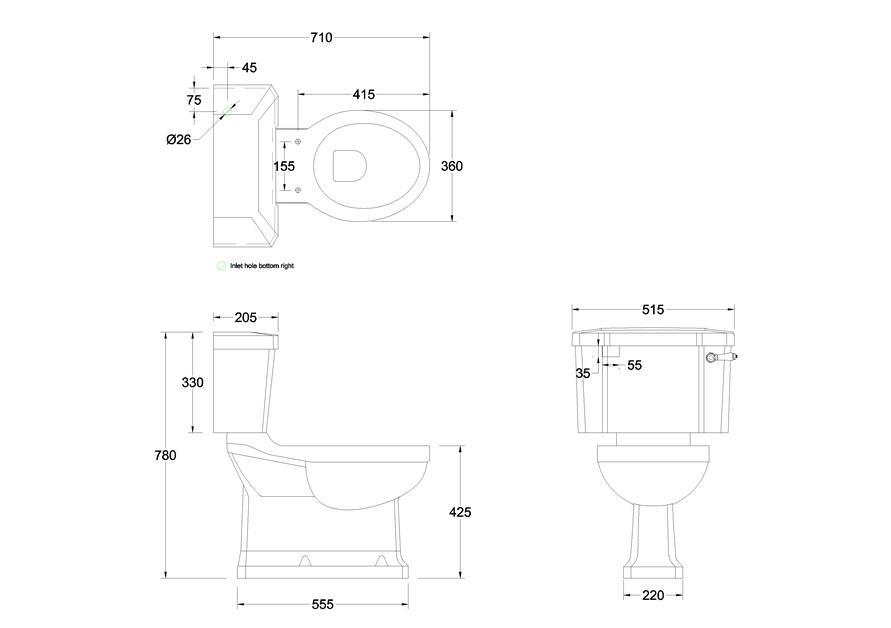

P18 Burlington close coupled S trap pan
C1 510mm close coupled/low level ceramic lever cistern
S18 Gloss white soft close hinge seat
Guarantee
Lifetime guarantee*
*Full terms & conditions here
Standards Information
BS EN 14055:2018
BS EN 997:2018
BS EN 33:2019
Additional Information
Supplied with floor fixings.
Recommended to be used with cistern tank isolation valve W25
If the wall to soil pipe distance is 21cm, then use the combination of P18&C1/C2/C3/C4.
The S trap P18 pan & C30 cistern combination should be used where the distance from the wall to the center of the soil pipe in the floor is 24cm.
The soil pipe is fully enclosed and not visible.
Water Inlet valve hole is located on the base of cistern tank on the right hand side.
Bottom inlet valve (SP5A). Back inlet valve available as optional item (SP511).
SP511 : Back entry kit for C1/C2/C3/C4/C30, including back entry inlet valve with flexible hose and plug.
Dual flush cistern fittings with ceramic lever on the right.
Press lever down for 6 litre flush and up for 3 litre flush.
Cistern connected to pan with internal bolts.
Close coupled wc must be used with standard Burlington toilet seats
SP11 51cm Cistern Lid for C1 & C2
SP511 back entry kit for C1, C3, C2, C4, C30, ARC5, including back entry inlet valve with flexible hose and plug
SP1021 bottom sealing washer of flush valve for product C1, C3, C3, C4
SP8 ceramic Cistern lever for Close Coupled, Low Level Cistern
SP17A chrome cover caps(pair) for Burlington pans, bidet, semi pedestal and U1
SP84 cistern flush valve with control cable for cistern fitting SP5 (excluding lever and inlet valve)
SP390 GOLD cistern Lever for C1, C3 - GOLD
SP504-2 inlet valve for Burlington close coupled cisterns
SP1022 inner box of product P18
SP508 kit for close couple cistern
SP507 kit for low level installation for close coupled cisterns C1, C2, C3, C4, T71 CHR
SP5A lever Flush Bottom Entry cistern fitting with ceramic lever
SP17 screw fixing pack for pan and bidet
SP802 the bigger stopper for SP5A, ARCSP7, C24C, SP7
SP387 WC floor fixing plastic caps - GOLD
SP1744 white caps & inserts (2 pieces) of floor fixings for Burlington pans, bidets and urinals
