Edwardian 120cm Basin with classic pedestal JET
Product Options
mounting options
with pedestal
|
with wash stand
|
As Shown
| B19 3TH JET Edwardian 120cm Basin 3TH Jet |
| T51 CHR Edwardian 120cm Basin Wash Stand Chrome Plated Brass Fittings |
| B19 3TH JET T51 CHR - Combined product code |
Gross Weight Including Packaging
| B19 3TH JET - basin - 44.3kg |
| T51 CHR - wash stand - 4.4kg |
Tap Hole Options
| Available with one (1TH), two (2TH) or three (3TH) tap holes |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 14688:2015 |
|
BS EN 31:2011 |
Additional Information
|
The 2 legs are held securely in place by 2 floor mounted nipples. |
|
To order the correct tap hole configuration simply use 1TH, 2TH or 3TH at the end of the basin product code. |
|
The overflow is to solve the issue of a dripping tap if the plug is left in. It is not designed to take a flowing tap. |
|
To raise the height of the wash stand by 6cm use the additional item T62. |
| SP843 | adjustable screw of Burlington basin stands (piece) |
| SP824 | floor fixings of Burlington basin stands (including 6pcs plug, 6pcs screws, 6pcs nipples washers and 2pcs floor nipples) |
| SP838 | foot for Burlington basin stands (piece) |
| SP1587 | grub screw for Burlington basin stands |
| SP1708 | leg for Burlington basin stand T21A CHR, T22A CHR, T23A CHR, T24A CHR, T50 CHR, T51 CHR |
| SP225 | rubber washer for basin stands |
Downloads
-
2D CAD-File - DWG -
B19 3TH JET T51 CHR
(B19 3TH T51 CHR 20201127.dwg)
-

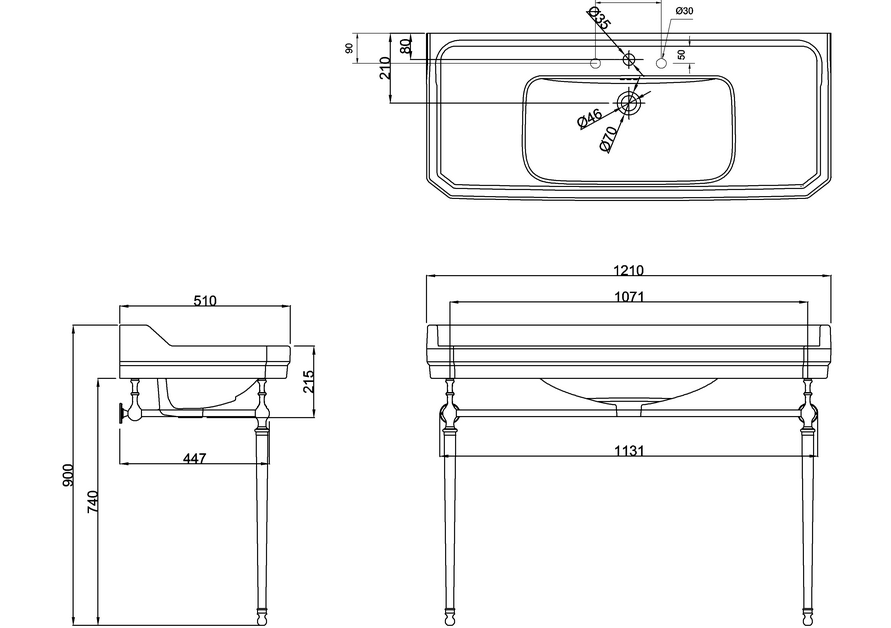

2D Drawing - PDF -
B19 3TH JET T51 CHR
(B19 3TH T51 CHR 20201127.pdf)
2D Drawing - PDF - B19 3TH JET T51 CHR
-
3D DWG - File - DWG
-
B19 3TH JET T51 CHR
(100029.dwg)
-
3D RFA BIMM Objects - File - RFA
-
B19 3TH JET T51 CHR
(100029.rfa)
