Design 8 Single Sliding Door with Soft Close & Side Panel
asaq2.Model.Web_product_new?.web_name
Product Options
Sizes (click on size to refresh details)
sliding_option_inline.jpg 110cm (A), 80cm (B) Design 8 Single Sliding Door with Soft Close 1100 & Side Panel 900 110cm (A), 90cm (B) Design 8 Single Sliding Door with Soft Close 1100 & Side Panel 1000 110cm (A), 100cm (B)
Design 8 Single Sliding Door with Soft Close 1200 & Side Panel 800 120cm (A), 80cm (B) Design 8 Single Sliding Door with Soft Close 1200 & Side Panel 900 120cm (A), 90cm (B) Design 8 Single Sliding Door with Soft Close 1200 & Side Panel 1000 120cm (A), 100cm (B)
Design 8 Single Sliding Door with Soft Close 1400 & Side Panel 800 140cm (A), 80cm (B) Design 8 Single Sliding Door with Soft Close 1400 & Side Panel 900 140cm (A), 90cm (B) Design 8 Single Sliding Door with Soft Close 1400 & Side Panel 1000 140cm (A), 100cm (B)
Design 8 Single Sliding Door with Soft Close 1500 & Side Panel 800 150cm (A), 80cm (B) Design 8 Single Sliding Door with Soft Close 1500 & Side Panel 900 150cm (A), 90cm (B) Design 8 Single Sliding Door with Soft Close 1500 & Side Panel 1000 150cm (A), 100cm (B)
Design 8 Single Sliding Door with Soft Close 1600 & Side Panel 800 160cm (A), 80cm (B) Design 8 Single Sliding Door with Soft Close 1600 & Side Panel 900 160cm (A), 90cm (B) Design 8 Single Sliding Door with Soft Close 1600 & Side Panel 1000 160cm (A), 100cm (B)
Design 8 Single Sliding Door with Soft Close 1700 & Side Panel 800 170cm (A), 80cm (B) Design 8 Single Sliding Door with Soft Close 1700 & Side Panel 900 170cm (A), 90cm (B) Design 8 Single Sliding Door with Soft Close 1700 & Side Panel 1000 170cm (A), 100cm (B)
Alternate Text
As Shown

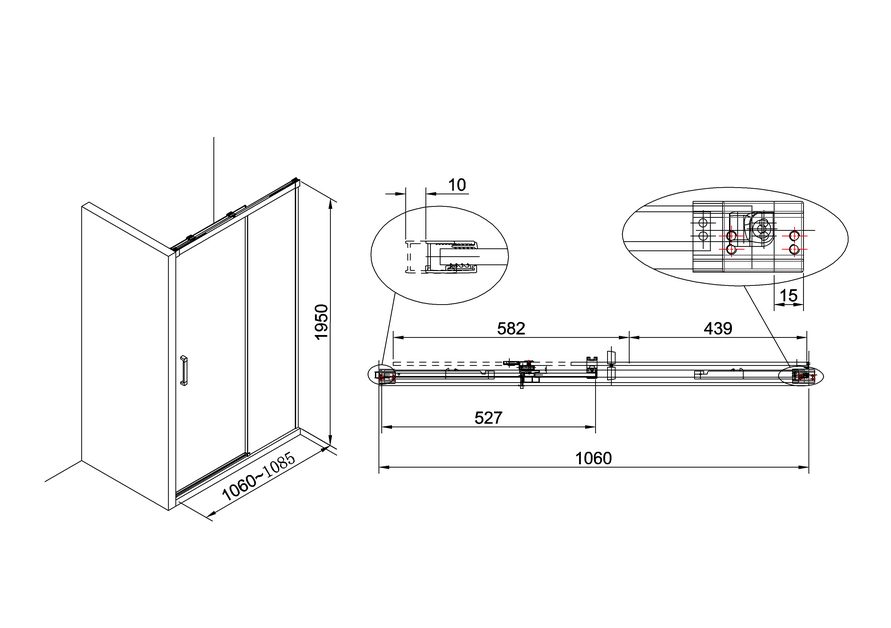

DSLSC1100 Design 8 soft close sliding door
DSLSP0800 Design 8 soft close side panel
Colour
DSLSC1100 - sliding door - Polished Aluminum
DSLSP0800 - panel - Polished Aluminum
Material
DSLSC1100 - sliding door - Aluminum
DSLSP0800 - panel - Aluminum
Size
DSLSC1100 - 8 x 1060 x 1950mm
DSLSP0800 - 8 x 775 x 1950mm
Nett Weight
DSLSC1100 - sliding door - 44.23kg
DSLSP0800 - panel - 30kg
Gross Weight Including Packaging
DSLSC1100 - sliding door - 47.23kg
DSLSP0800 - panel - 32.9kg
Packed Dimension
DSLSC1100 - 2040 x 685 x 95 = 0.1328 m3
DSLSP0800 - 2050 x 870 x 85 = 0.1516 m3
Guarantee
Lifetime guarantee*
*Full terms & conditions here
Standards Information
FXDSL11 design slider waterproof strip (L=592) with glass clip used for DSLSC1100
DSL000020 glass clip
DSL000035 glass clip set
DSL000031 handle
DSL000019 M4*5mm screw
DSL000009 moving door waterproof strip L=1939
DSLADJPROFILE profile for design Slider
DSL000017 roller
DSL000018 roller clip
DSL000033 sealing strip L=1950
DSL000007 soft close for DSLSC1100, DSLSC1200
DSL000030 ST4*40mm screw
DSL000034 top Cap
DSL000011 top sealing strip L=508
DSL000001 track L=1035
DSL000028 wall bracket
DSL000027 wall bracket
DSL000026 wall Bracket (LH)
DSL000025 wall Bracket (RH)
DSL000006 wall frame sealing strip L=1901
DSL000016 wall frame sealing strip L=1901
DSL000032 wall frame sealing strip L=1950
DSL000029 wall plug
DSL000024 waterproof cap(LH)
DSL000021 waterproof cap(RH)
DSL000023 waterproof cap(RH)
DSL000022 waterproof part(LH)
Downloads
  • Instructions - PDF - DSLSC1100 (English)
  • 3D STP - File - STP  -  DSLSC1100 DSLSP0800 pending
  • Product image 1 - jpg
* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
