Design 8 Hinged Door & Side Panel

asaq2.Model.Web_product_new?.web_name

Product Options

Sizes (click on size to refresh details)

80cm (A), 70cm (C)	80cm (A), 70cm (C)	90cm (A), 70cm (C)	90cm (A), 70cm (C)	80cm (A), 76cm (C)
80cm (A), 76cm (C)	90cm (A), 76cm (C)	90cm (A), 76cm (C)	80cm (A), 80cm (C)	80cm (A), 80cm (C)
90cm (A), 80cm (C)	90cm (A), 80cm (C)	80cm (A), 90cm (C)	80cm (A), 90cm (C)	90cm (A), 90cm (C)
90cm (A), 90cm (C)	80cm (A), 100cm (C)	80cm (A), 100cm (C)	90cm (A), 100cm (C)	90cm (A), 100cm (C)
80cm (A), 110cm (C)	80cm (A), 110cm (C)	90cm (A), 110cm (C)	90cm (A), 110cm (C)	80cm (A), 120cm (C)
80cm (A), 120cm (C)	90cm (A), 120cm (C)	90cm (A), 120cm (C)	80cm (A), 140cm (C)	80cm (A), 140cm (C)
90cm (A), 140cm (C)	90cm (A), 140cm (C)

Alternate Text

As Shown

DSPSC0700+ Side panel 700mm

DWHSC0800L+ Design 8 wall mounted self-closing hinged door 800, left hand 8mm glass

Colour

DSPSC0700+ - panel - Polished Aluminum

DWHSC0800L+ - hinged Door - Polished Aluminum

Material

DSPSC0700+ - panel - Aluminum

DWHSC0800L+ - hinged Door - Aluminum

Size

DSPSC0700+ - 8 x 675 x 1950mm

DWHSC0800L+ - 8 x 780 x 1950mm

Nett Weight

DSPSC0700+ - panel - 26kg

DWHSC0800L+ - hinged Door - 30kg

Gross Weight Including Packaging

DSPSC0700+ - panel - 28.7kg

DWHSC0800L+ - hinged Door - 35.1kg

Packed Dimension

DSPSC0700+ - 2045 x 745 x 85 = 0.1295 m3

DWHSC0800L+ - 2030 x 835 x 95 = 0.161 m3

Guarantee

Lifetime guarantee*
*Full terms & conditions here

Standards Information

DS0000005+	bottom seat(LH)
DS0000006+	bottom seat(RH)
DS0000011+	cap
DS0000012+	cap
DS0000023+	cap(LH)
DS0000022+	cap(RH)
DS0000009+	cover of hinge for all Design products
DS0000018+	cover(LH)
DS0000017+	cover(RH)
DS0000020+	cover- IM-AL
DS0000007+	end part(RH)
DS0000016+	fixed part
DS0000019+	glass clamp for all Design products
DS0000021+	hinge for all Design products
DS0000010+	M4 *8mm Screw for all Design products
DS0000014+	wall bracket
DS0000015+	wall bracket cover
DS0000004+	wall frame sealing strip I L=1926
DS0000003+	wall frame sealing strip, L=1950
DS0000001+	wall profile, L=1926 for Hinge door, Side panel, quadrant door

Downloads

Instructions - PDF - DSPSC0700+ (English)
Instructions - PDF - DWHSC0800L+ (English)

2D CAD-File - DWG - DWHSC0800L+ DSPSC0700+ (DWHSC0800L_.dwg)

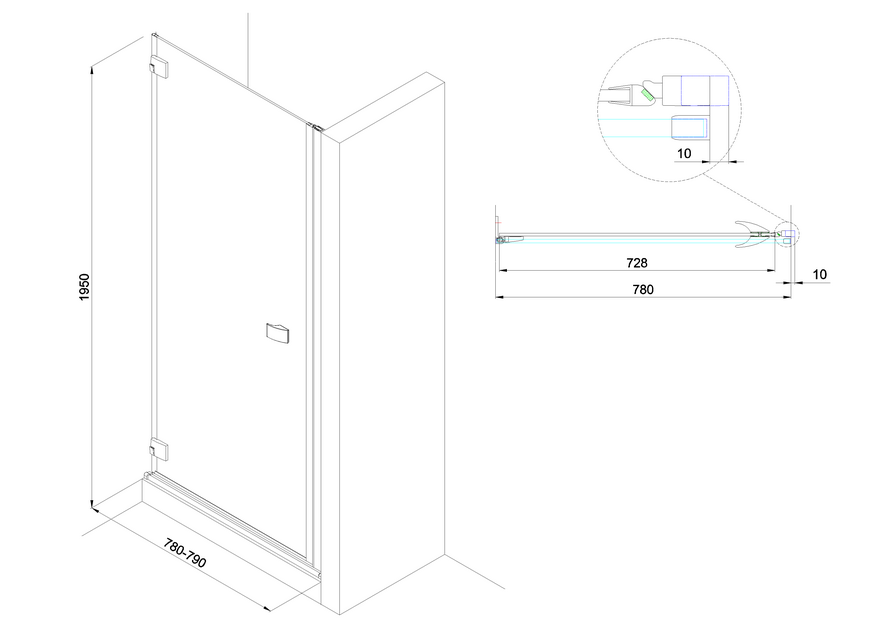

2D Drawing - PDF - DWHSC0800L+ DSPSC0700+ (DWHSC0800L_.pdf) 2D Drawing - PDF - DWHSC0800L+ DSPSC0700+

3D STP - File - STP - DWHSC0800L+ DSPSC0700+ (DWHSC0800L_.stp)

Product image 1 - jpg

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
