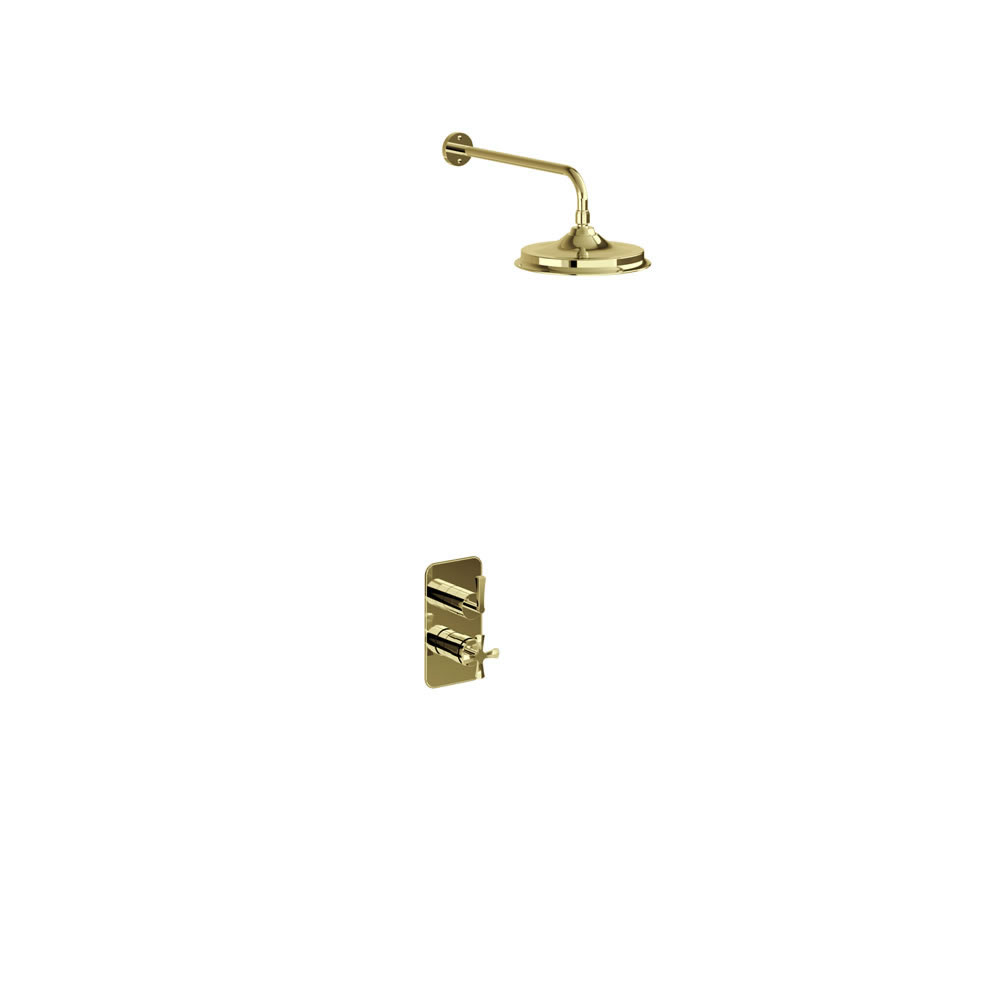

Riviera Shower valve with fixed shower head
Product Options
Finish Options
shower head options
|
Chrome
|
Gold
|
6 inch
|
9 inch
|
12 inch
|
As Shown
| V11 Straight shower arm for wall mounting |
| V17 9 inch shower rose |
| HOX006V Concealed Valve without Diverter |
| RIV2_CHR Riviera 1000 shower plate and handles Chrome |
| R1S CHR+V17 - Combined product code |
Colour
| V11 - shower arm - Polished Chrome |
| V17 - shower rose - chrome |
| HOX006V - valve - No Finish |
| RIV2_CHR - tap - Polished Chrome |
Material
| V11 - shower arm - Brass |
| V17 - shower rose - ABS |
| HOX006V - valve - Brass |
| RIV2_CHR - tap - Brass |
Size
| V11 - 416 x 60 x 96mm |
| V17 - 236 x 236 x 87mm |
| HOX006V - 107 x 124 x 151.5mm |
| RIV2_CHR - 127 x 120 x 215mm |
Nett Weight
| V11 - shower arm - 0.304kg |
| V17 - shower rose - 1.1kg |
| HOX006V - valve - 1.1kg |
| RIV2_CHR - tap - 3.28kg |
Gross Weight Including Packaging
| V11 - shower arm - 0.39kg |
| V17 - shower rose - 1.26kg |
| HOX006V - valve - 1.2kg |
| RIV2_CHR - tap - 3.7kg |
Packed Dimension
| V11 - 85 x 65 x 450 = 0.0025 m3 |
| V17 - 280 x 270 x 130 = 0.0098 m3 |
| HOX006V - 155 x 115 x 140 = 0.0025 m3 |
| RIV2_CHR - 235 x 285 x 72 = 0.0048 m3 |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 1111:2017 |
Additional Information
|
390mm adjustable fixed shower arm. |
|
Image shown is with 9" Airburst shower head. |
|
The shower head has anti-limescale silicon nipples. |
|
Hot & cold inlet 3/4 female thread |
Flow Rates
| System Pressure | 0.2 bar | 0.5 bar | 1 bar | 2 bar | 3 bar | 4 bar | 5 bar |
|---|---|---|---|---|---|---|---|
| 9 inch rose | 4.11 | 5.15 | 8.11 | 11.44 | 14.36 | n/a | n/a |
| 6 inch rose | 3.84 | 4.94 | 7.95 | 11.29 | 13.21 | n/a | n/a |
| 12 inch rose | 3.52 | 4.73 | 7 | 9.86 | 12.68 | n/a | n/a |
| SP315 | hent F2 flow control cartridge |
| SP1486 | metal blocks parts for HOX.006V, HOX.005V, V50, V51, V52 |
| SP853 | plastic ring for product V50, V51, V52, HOX.005V, HOX.006V (piece) |
| SP959 | retaining nut for all finishes products of TF1S, TF1H, VF1S, SF1S, TF3S, VF3S, SF3S, ARC73, ARC64 |
| SP314 | VQT1 temperature control cartridge |
Downloads
- Instructions - PDF - V11 (English)
- Instructions - PDF - V17 (English)
- Instructions - PDF - HOX006V (English)
- Instructions - PDF - RIV2_CHR (English)
- Instructions - PDF - V11 (French)
- Instructions - PDF - RIV2_CHR (French)
- Instructions - PDF - HOX006V (French)
-
2D CAD-File - DWG -
R1S CHR+V17
(R1S_V16V17V60_DD.dwg)
-

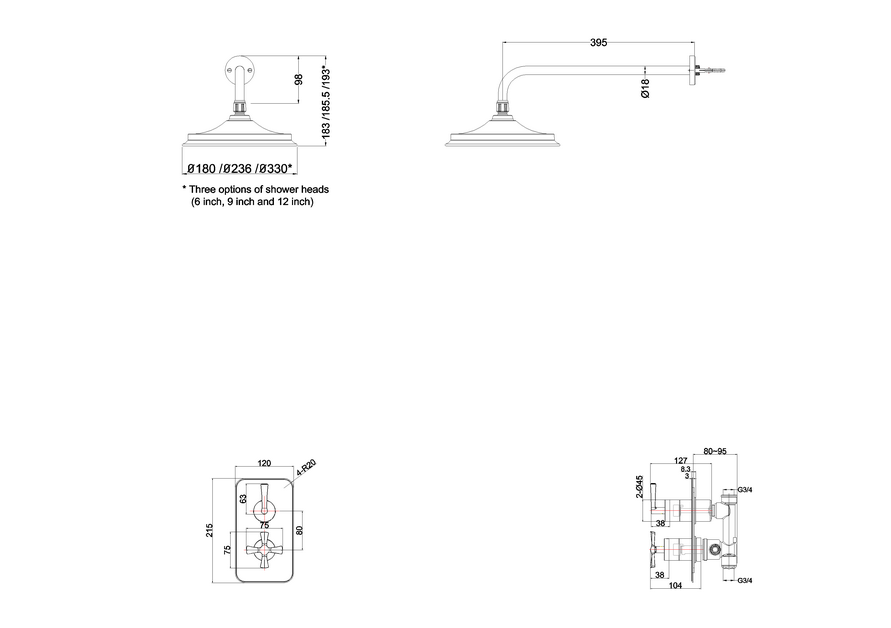

2D Drawing - PDF -
