End Bath Panel

asaq2.Model.Web_product_new?.web_name

Product Options

Panel size options

End bath panel 700

End Bath Panel 700

End bath panel 750

End Bath Panel 750

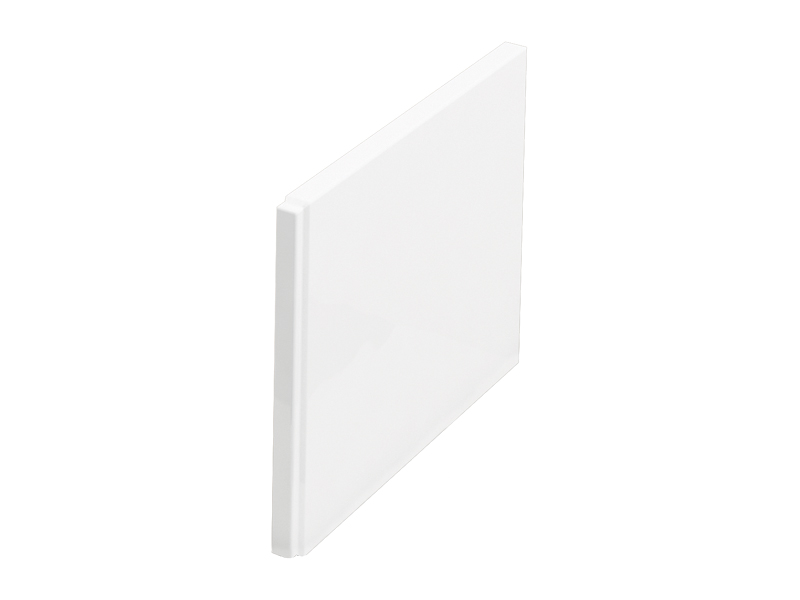

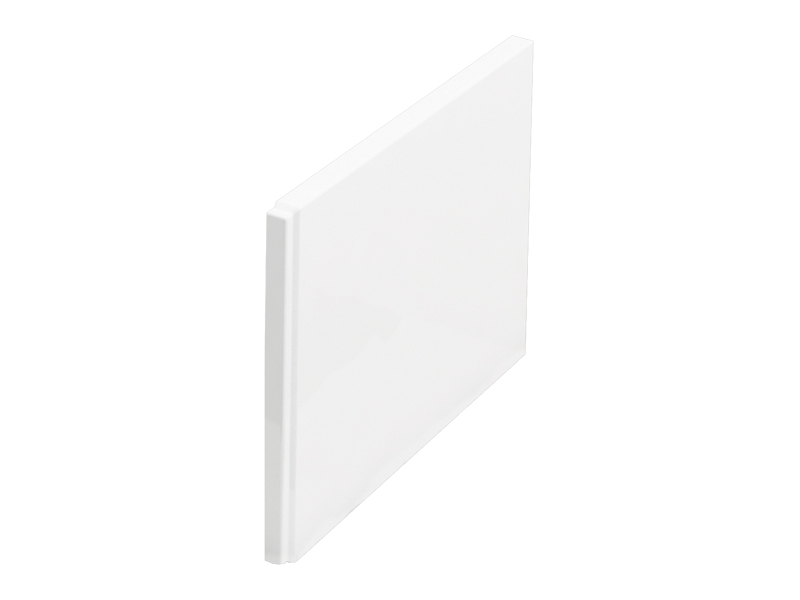

End bath panel 800

End Bath Panel 800

Alternate Text

As Shown

R27ECW End Bath Panel 700

Colour

R27ECW - bath panel - Gloss White

Material

R27ECW - bath panel - Acrylic

Size

R27ECW - 40 x 682 x 540mm

Nett Weight

R27ECW - bath panel - 2.6kg

Gross Weight Including Packaging

R27ECW - bath panel - 3.1kg

Packed Dimension

R27ECW - 690 x 550 x 45 = 0.0171 m3

Guarantee

2 year guarantee*
*Full terms & conditions here

Standards Information

BS EN 14516:2015+A1:2018

SP379	cleargreen bath panel spares
SP628	set of clips for bath panels (1 set of 8 pieces)

Downloads

Instructions - PDF - R27ECW (English)
Instructions - PDF - R27ECW (French)

2D CAD-File - DWG - R27ECW (R27E_LD.dwg)

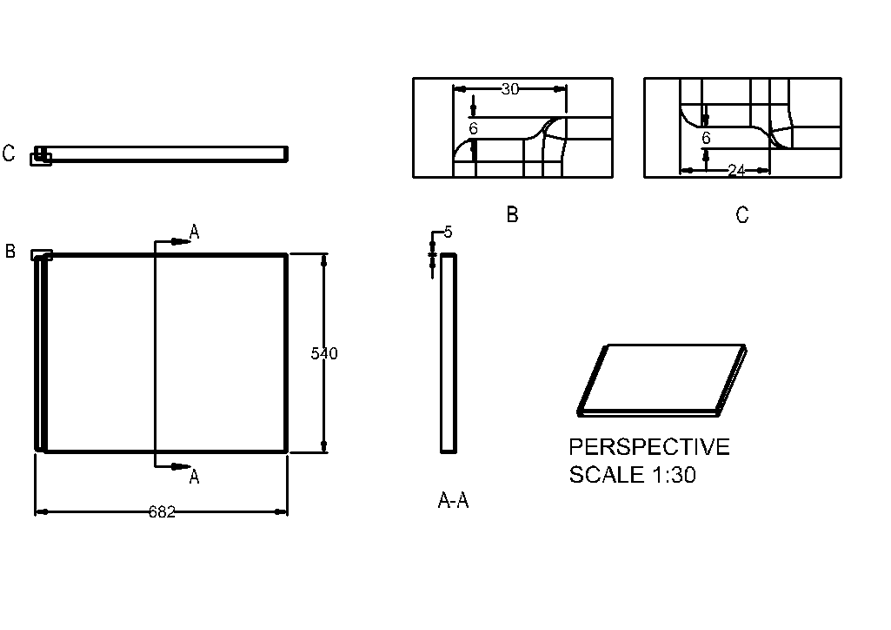

2D Drawing - PDF - R27ECW (R27E_LD.pdf) 2D Drawing - PDF - R27ECW

3D DWG - File - DWG - R27ECW (41405002250.dwg)
3D DXF - File - DXF - R27ECW (41405002250.dxf)
3D IGS - File - IGS - R27ECW (41405002250.igs)
3D RFA BIMM Objects - File - RFA - R27ECW (R27E.rfa)

Product image 1 - jpg

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
