Classic Invisible Overflow Rectangular basin
asaq2.Model.Web_product_new?.web_name
Product Options
mounting options

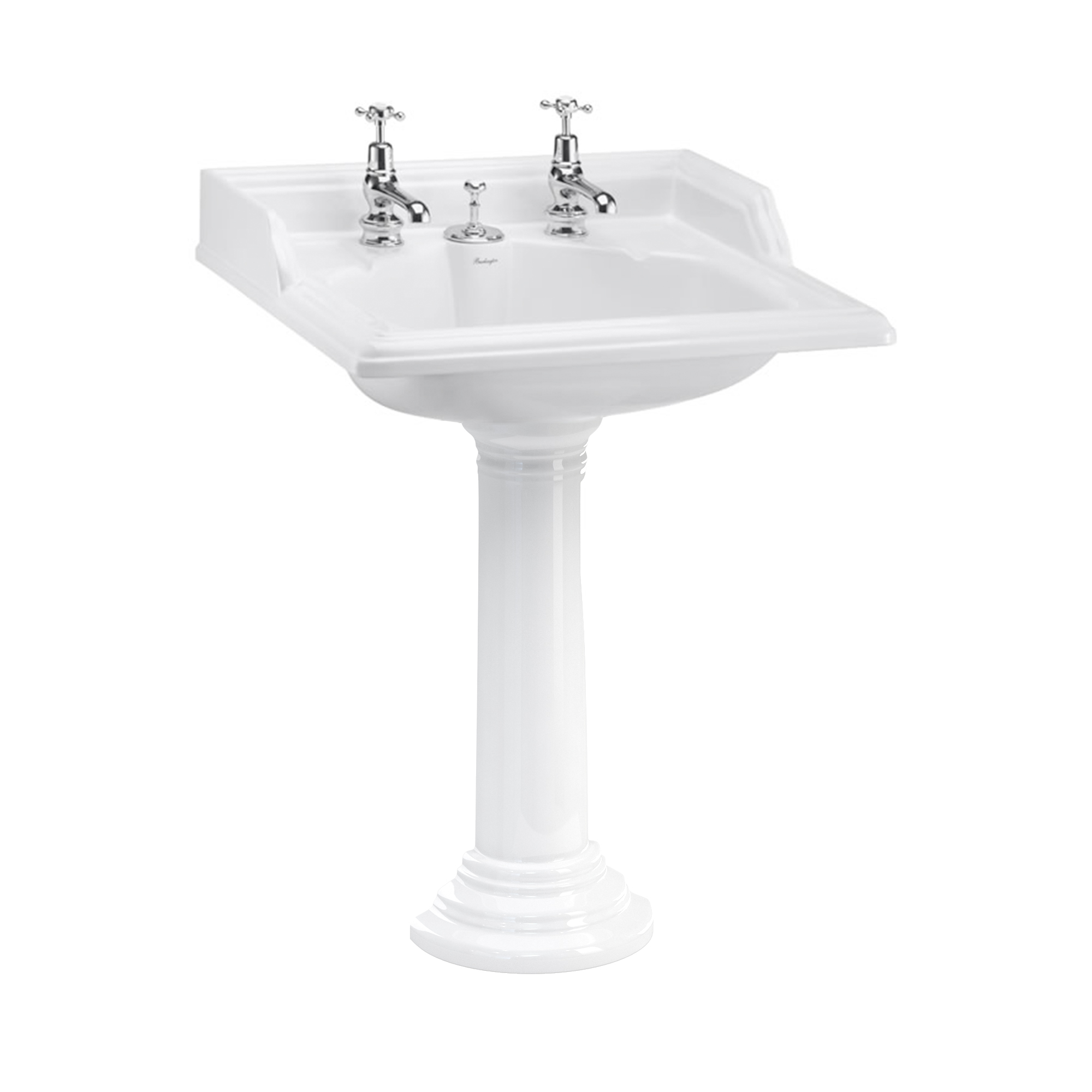

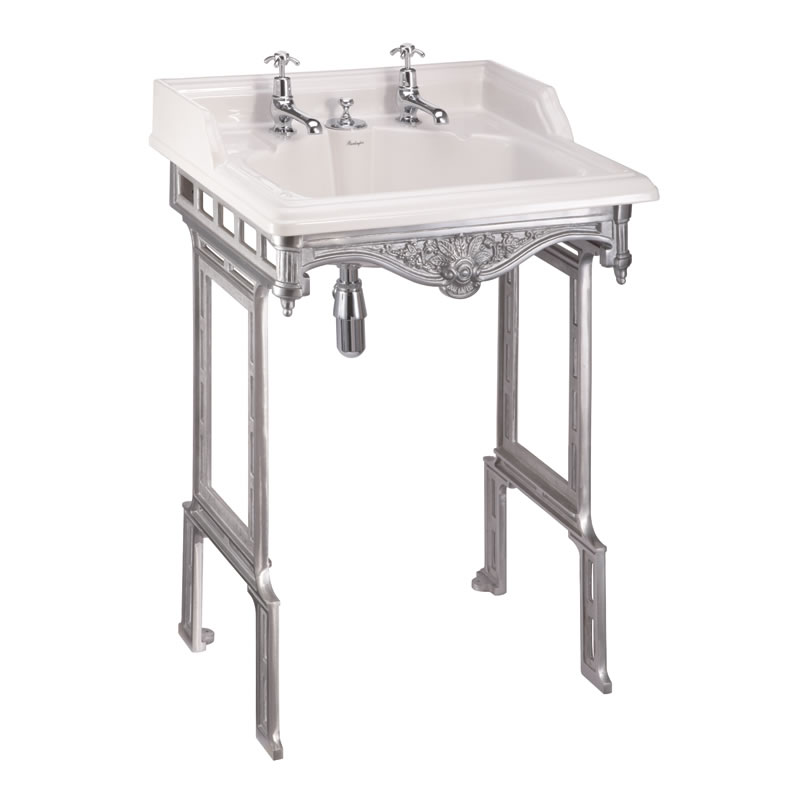

Classic 65cm basin with invisible overflow and Classic standard pedestal standard pedestal Classic 65cm basin with invisible overflow and regal round pedestal regal pedestal Classic 65cm basin with invisible overflow and brushed aluminium basin stand with aluminium stand with furniture
Alternate Text
As Shown

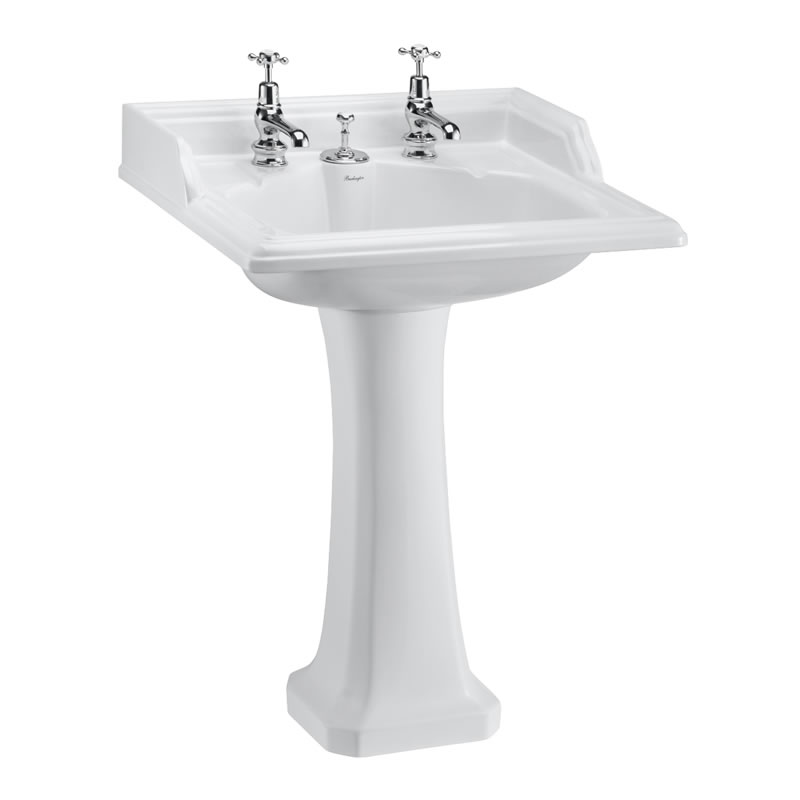

B14 Classic 65cm basin for integrated waste & overflow
P6 Classic pedestal
W9 Classic basin invisible overflow & waste
Colour
B14 - basin - Gloss White
P6 - pedestal - Gloss White
W9 - waste - Polished Chrome
Material
B14 - basin - Fine Fire Clay
P6 - pedestal - Fine Fire Clay
W9 - waste - Brass

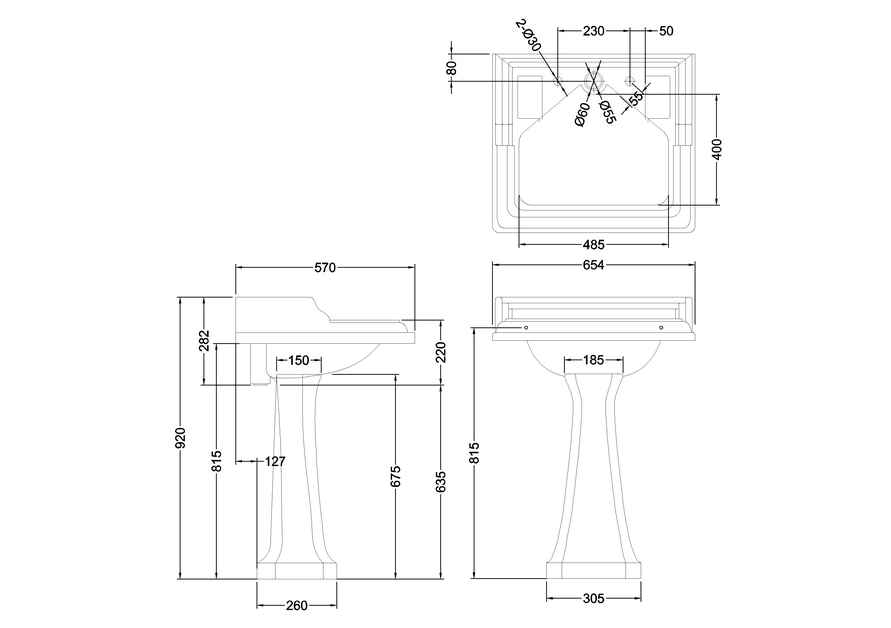

Size
B14 - 570 x 645 x 282mm
P6 - 260 x 310 x 675mm
W9 - 74 x 74 x 300mm
Nett Weight
B14 - basin - 16.95kg
P6 - pedestal - 12.25kg
W9 - waste - 1.09kg
Gross Weight Including Packaging
B14 - basin - 21.15kg
P6 - pedestal - 14.15kg
W9 - waste - 1.3kg
Packed Dimension
B14 - 670 x 597 x 315 = 0.126 m3
P6 - 687 x 325 x 275 = 0.0614 m3
W9 - 295 x 75 x 75 = 0.0017 m3
Tap Hole Options
Available with two (2TH) tap holes only
Guarantee
Lifetime guarantee*
*Full terms & conditions here
Standards Information
BS EN 247:2002
BS EN 14688:2015
BS EN 31:2011
Additional Information
The invisible overflow drains the water when the water level reaches the top of the basin.
Available with two (2TH) tap holes only. This basin has 230mm tap hole centres which means it much be used with the arch basin mixer with 230mm tap centres or pillar taps.
Compatible Products
W9 -    Classic Basin Invisible Overflow & Waste
SP433 ceramic OPEN-CLOSE-LIFT knob for W9
SP1155 complete packaging for W9
SP1665 rubber washer (outer) adjacent fixing nut for W9
SP919 silicone gasket of product W9
SP442 waste cover for W9
Downloads
  • Instructions - PDF - P6 (English)
  • Instructions - PDF - W9 (English)
  • Instructions - PDF - W9 (French)
  • Instructions - PDF - P6 (French)
  • 3D DWG - File - DWG  -  B14 P6 (2702.dwg)
  • 3D DXF - File - DXF  -  B14 P6 (2702.dxf)
  • 3D IGS - File - IGS  -  B14 P6 (2702.igs)
  • 3D RFA BIMM Objects - File - RFA  -  B14 P6 (2702.rfa)
  • Lifestyle image 1 - tiff
    jpg
  • Lifestyle image 2 - tiff
    jpg
  • Lifestyle image 3 - tiff
    jpg
  • Product image 1 - jpg
  • Product image 2 - jpg
* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
