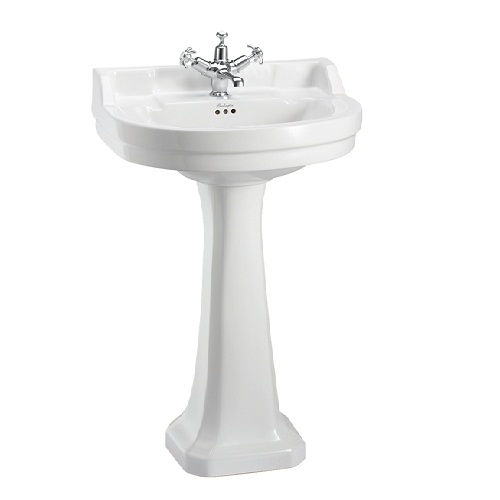

Edwardian Round basin
Product Options
mounting options
pedestal options
|
with pedestal
|
with pedestal & towel rail
|
with wash stand
|
standard
|
regal
|
As Shown
| B61TH − |
| P9 − |
Tap Hole Options
| Available with one(1TH), two(2TH) or three(3TH) tap holes. |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 31:2011 |
|
BS EN 14688:2015 |
Additional Information
|
To order the correct tap hole configuration simply use 1TH or 2TH at the end of the basin product code. |
|
The overflow is to solve the issue of a dripping tap if the plug is left in. It is not designed to take a flowing tap. |
|
Not suitable for use on furniture. |
Compatible Products
| W1 - Basin plug and chain (option for two tap hole basin only) |
| W11 - "Click-clack" Basin waste slotted |
| W18 - Flip-top basin waste slotted |
| T4 CHR - 56cm Round towel rail chrome |
| SP1714 | basin fixings for Burlington & Britton basins |
Downloads
-
2D CAD-File - DWG -
B6 1TH P9
(B6 1TH_P9_20210805.dwg)
-

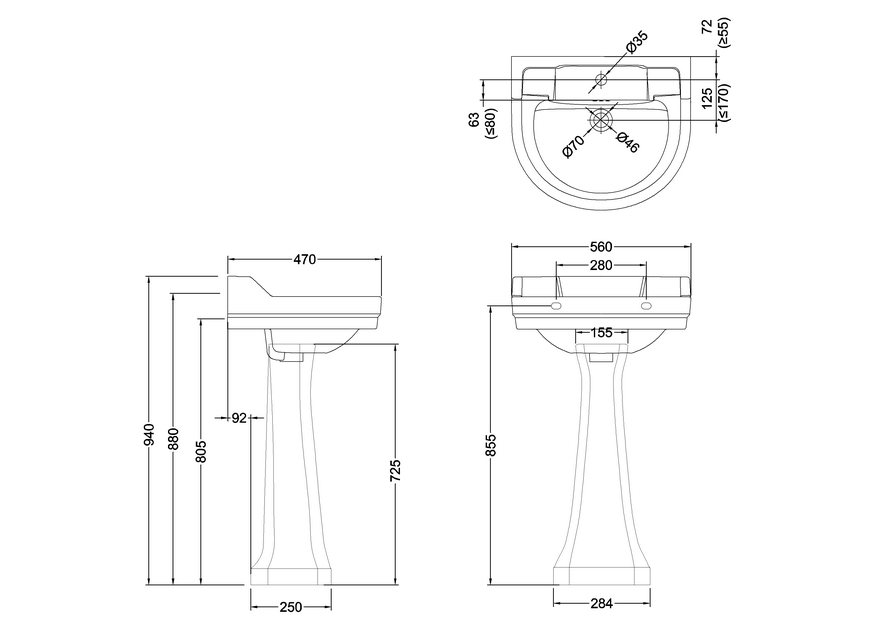

2D Drawing - PDF -
B6 1TH P9
(B6 1TH_P9_20210805.pdf)
2D Drawing - PDF - B6 1TH P9
-
3D DWG - File - DWG
-
B6 1TH P9
(2734.dwg)
-
3D DXF - File - DXF
-
B6 1TH P9
(2734.dxf)
-
3D IGS - File - IGS
-
B6 1TH P9
(2734.igs)
-
3D RFA BIMM Objects - File - RFA
-
B6 1TH P9
(2734.rfa)
