Welcome to the Bathroom Brands Technical Whitebook


Low Level P trap horizontal outlet P2

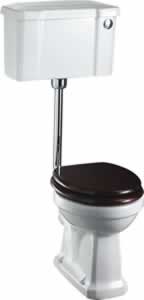

Standard low level WC with 520 front push button cistern
Product Options
WC options
Standard low level WC with 520 lever cistern with lever flush 52cm wide cistern C1 Standard low level WC with 440 lever cistern with lever flush 44cm wide cistern C3 Standard low level WC with 520 front push button cistern with push button flush 52cm wide cistern C2 Standard low level WC with 440 front push button cistern with push button flush 44cm wide cistern C4
Alternate Text
As Shown
A51 CHR Set of 2 handles with screws & template for Burlington - chrome
C2 510mm close coupled/low level front button cistern
P2 Low/high level pan
S12 Mahogaony seat
T31 CHR Low level flush pipe kit
Guarantee
Lifetime guarantee*
*Full terms & conditions here
Standards Information
A51 CHR  -  WRAS Not Applicable
C2  -  WRAS Approved (Cistern Fittings)
P2  -  WRAS Not Applicable
S12  -  WRAS Not Applicable
T31 CHR  -  WRAS Not Applicable
BS EN 997:2018
BS EN 33:2019
BS EN 14055:2018
BS EN 248:2002
Alternate Text
Additional Information

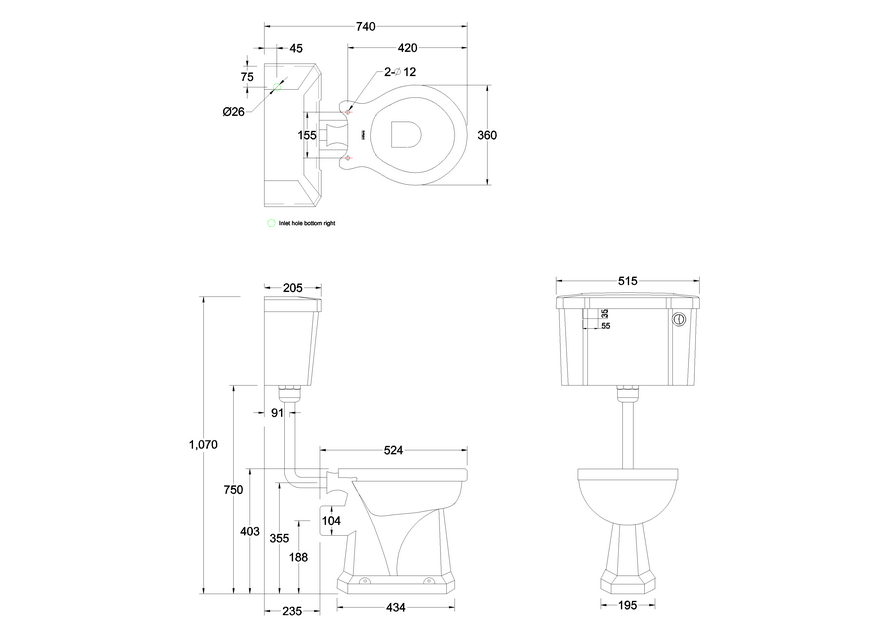

Low Level wc can be used where the soil pipe is located in the floor. The pan can be located over the soil pipe by cutting the horizontal flush pipe to length.
The cistern height can be varied by cutting the vertical flush pipe to length - maximum height is 1,075mm to the top of the cistern, minimum height is 900mm.
Water Inlet valve hole is located on the base of cistern tank on the right hand side
Bottom inlet valve (SP6). Back inlet valve available as optional item (SP511).
SP511 : Back entry kit for C1/C2/C3/C4/C30, including back entry inlet valve with flexible hose and plug.
P trap standard height pan - height from floor to pan rim is 40cm.
Regal Height pan ( floor to pan rim height 48cm ) available : P16.
Cistern can be used with optional decorative Ornate Brackets T32 CHR.
Ceramic soil connection pipes : straight connector to the wall : C29. The S trap connector bending down to the floor : C26.
Low level wc must be used with standard Burlington toilet seats.
Supplied with floor fixings.
Recommended to be used with cistern tank isolation valve W25.
Ceramic soil connection pipes.
SP11 51cm Cistern Lid for C1 & C2
SP511 back entry kit for C1, C3, C24, including back entry inlet valve with flexible hose and plug
SP1021 bottom sealing washer of flush valve for product C1, C3, C3, C4
SP1353 brass fixing nut for T30 CHR, T31 CHR T33 CHR, T34 CHR, T30 GOLD, T30 NKL
SP509 buffers for the seat ring & lid for S11, S12, S16, S17
SP6 button Dual Flush Bottom Entry cistern fitting
SP439 chrome Burlington seat plate (including screws)
SP85 cistern flush valve with control cable SP6 (excluding button and inlet valve)
SP9 cistern Push Button
SP620 complete bar hinges for S11, S12
SP404 complete set of lift handles for S11, S12, S16, S17
SP973 cone shaped washer, plastic washer and plastic fixing nut of cistern fittings C1, C2, C3, C4, C30, C1D
SP192 hinge fixings for S11, S12, S16, S17 seats
SP504 inlet valve for C2
SP508 kit for close couple cistern
SP160 l shape bracket(pair) for T31CHR
SP17 screw fixing pack for pan and bidet
SP1365 the bottom section of the high level flush pipe
SP507 washers and fixing nuts used for SP5
