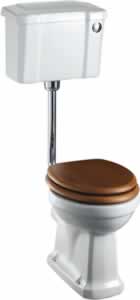

Standard Low Level WC
Product Options
WC options
Cistern Options
flush pipe options
with lever flush 52cm wide cistern C1
|
with lever flush 44cm wide cistern C3
|
with push button flush 52cm wide cistern C2
|
with push button flush 44cm wide cistern C4
|
|
Standard Cistern
|
|
Chrome
|
As Shown
| T31CHR Low Level Flush Pipe kit including Flush pipes and reverse screw cistern connector |
| C4 Close coupled/low level front button cistern |
| P2 Low/high level pan |
| S11 Golden oak seat |
| A51CHR Burlington seat handle Chrome |
Colour
| T31CHR - fittings - Polished Chrome |
| C4 - cistern - Gloss White |
| P2 - pan - Gloss White |
| S11 - seat - Oak |
| A51CHR - accessories - Polished Chrome |
Material
| T31CHR - fittings - Brass |
| C4 - cistern - Vitreous China |
| P2 - pan - Vitreous China |
| S11 - seat - Molded Wood |
| A51CHR - accessories - Zinc Alloy |
Size
| T31CHR - 221 x 38 x 420mm |
| C4 - 215 x 450 x 330mm |
| P2 - 524 x 360 x 403mm |
| S11 - 432 x 371 x 65mm |
| A51CHR - 50 x 56 x 8mm |
Nett Weight
| T31CHR - fittings - 1.27kg |
| C4 - cistern - 12.4kg |
| P2 - pan - 17kg |
| S11 - seat - 2.62kg |
| A51CHR - accessories - 0.04kg |
Gross Weight Including Packaging
| T31CHR - fittings - 1.59kg |
| C4 - cistern - 14.6kg |
| P2 - pan - 18.7kg |
| S11 - seat - 2.84kg |
| A51CHR - accessories - 0.07kg |
Packed Dimension
| T31CHR - 440 x 230 x 65 = 0.0066 m3 |
| C4 - 537 x 227 x 360 = 0.0439 m3 |
| P2 - 542 x 372 x 428 = 0.0863 m3 |
| S11 - 440 x 373 x 65 = 0.0107 m3 |
| A51CHR - 60 x 60 x 100 = 0.0004 m3 |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 248:2002 |
|
BS EN 33:2019 |
|
BS EN 14055:2018 |
|
BS EN 997:2018 |
Additional Information
|
Low Level wc can be used where the soil pipe is located in the floor. The pan can be located over the soil pipe by cutting the horizontal flush pipe to length. |
|
The cistern height can be varied by cutting the vertical flush pipe to length - maximum height is 1,075mm to the top of the cistern, minimum height is 900mm. |
|
Water Inlet valve hole is located on the base of cistern tank on the right hand side |
|
Bottom inlet valve (SP6). Back inlet valve available as optional item (SP511). |
|
SP511 : Back entry kit for C1/C2/C3/C4/C30, including back entry inlet valve with flexible hose and plug. |
|
P trap standard height pan - height from floor to pan rim is 40cm. |
|
Regal Height pan ( floor to pan rim height 48cm ) available : P16. |
|
Cistern can be used with optional decorative Ornate Brackets T32 CHR. |
|
Ceramic soil connection pipes : straight connector to the wall : C29. The S trap connector bending down to the floor : C26. |
|
Low level wc must be used with standard Burlington toilet seats. |
|
Supplied with floor fixings. |
|
Recommended to be used with cistern tank isolation valve W25. |
|
Ceramic soil connection pipes. |
| SP12 | 44cm Cistern Lid for C3 & C4 |
| SP511 | back entry kit for C1, C3, C2, C4, C30, ARC5, including back entry inlet valve with flexible hose and plug |
| SP1021 | bottom sealing washer of flush valve for product C1, C3, C3, C4 |
| SP965 | brass decorative cover of cistern connection for product T31 CHR |
| SP1353 | brass fixing nut for all finishes products of T30, T31, T33, T34 |
| SP509 | buffers for the seat ring & lid for S11, S12, S16, S17 |
| SP6 | button Dual Flush Bottom Entry cistern fitting |
| SP17A | chrome cover caps(pair) for Burlington pans, bidet, semi pedestal and U1 |
| SP85 | cistern flush valve with control cable SP6 (excluding button and inlet valve) |
| SP9 | cistern Push Button |
| SP620 | complete bar hinges for S11, S12 |
| SP890 | flush pipe of product T31 CHR |
| SP192 | hinge fixings for S11, S12, S16, S17 seats |
| SP504_2 | inlet valve for Burlington close coupled cisterns |
| SP508 | kit for close couple cistern |
| SP507 | kit for low level installation for close coupled cisterns C1, C2, C3, C4, T71 CHR |
| SP160 | l shape bracket(pair) for T31CHR |
| SP17 | screw fixing pack for pan and bidet |
| SP193 | spare Parts for S11, S12 |
| SP387 | WC floor fixing plastic caps - GOLD |
| SP1744 | white caps & inserts (2 pieces) of floor fixings for Burlington pans, bidets and urinals |
Downloads
- Instructions - PDF - T31CHR (English)
- Instructions - PDF - C4 (English)
- Instructions - PDF - S11 (English)
- Instructions - PDF - A51CHR (English)
- Instructions - PDF - S11 (French)
- Instructions - PDF - A51CHR (French)
- Instructions - PDF - T31CHR (French)
- Instructions - PDF - C4 (French)
-
2D CAD-File - DWG -
C4 P2 T31 CHR
(P2-C4-T31.dwg)
-

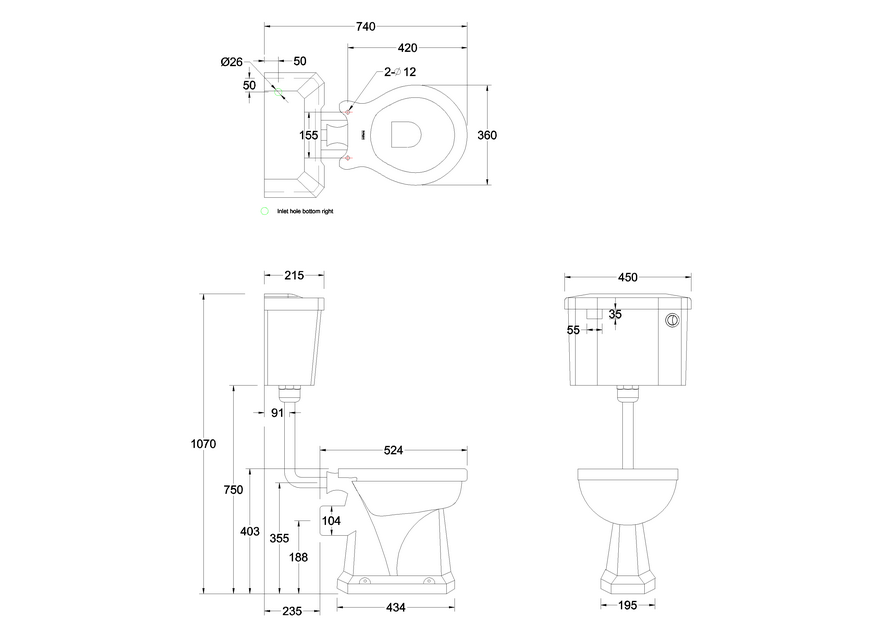

2D Drawing - PDF -
