High Level Dual Flush WC

Product Options

WC options

Standard high level WC with dual flush ceramic cistern

with rod dual flush 52cm wide cistern C5

Standard high level WC with chrome lever cistern

with chain single flush 52cm wide cistern C28PK

Standard high level WC with dual flush aluminium cistern

with rod dual flush brushed aluminium cistern T58ALU

Standard high level WC with dual flush black aluminium cistern

with rod dual flush black aluminium cistern T60BLA

Standard high level WC with dual flush white aluminium cistern

with rod dual flush white aluminium cistern T59WHI

flush pipe options

Chrome

As Shown

T59WHI High level cistern including cistern fittings

T30CHR High Level Flush Pipe kit including Lever, Rigid pull chain, Flush pipes, reverse screw cistern connector, Stopper and Ornate brackets

P2 Low/high level pan

S18 Gloss white soft close hinge seat

Colour

T59WHI - cistern - Matt White

T30CHR - fittings - Polished Chrome

P2 - pan - Gloss White

S18 - seat - Gloss White

Material

T59WHI - cistern - Aluminum

T30CHR - fittings - Brass

P2 - pan - Vitreous China

S18 - seat - Urea

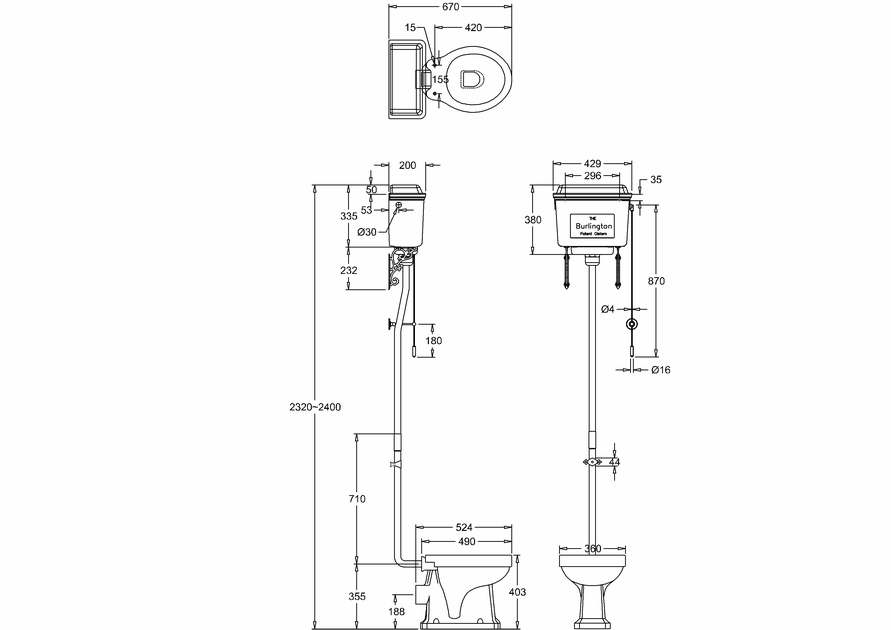

Size

T59WHI - 430 x 200 x 380mm

T30CHR - 188 x 35 x 1720mm

P2 - 524 x 360 x 403mm

S18 - 370 x 439 x 56mm

Nett Weight

T59WHI - cistern - 8.3kg

T30CHR - fittings - 3.45kg

P2 - pan - 17kg

S18 - seat - 2.53kg

Gross Weight Including Packaging

T59WHI - cistern - 8.9kg

T30CHR - fittings - 4.91kg

P2 - pan - 18.7kg

S18 - seat - 2.76kg

Packed Dimension

T59WHI - 450 x 215 x 400 = 0.0387 m3

T30CHR - 1115 x 310 x 70 = 0.0242 m3

P2 - 542 x 372 x 428 = 0.0863 m3

S18 - 462 x 376 x 72 = 0.0125 m3

Guarantee

Lifetime guarantee*
*Full terms & conditions here

Standards Information

BS EN 248:2002

BS EN 33:2019

BS EN 14055:2018

BS EN 997:2018

Additional Information

The water inlet valve hole is located on either side of the cistern tank.

The high level wc uses a standard low level pan and specialed high level cistern, connected with a high level flush pipe kit T30 CHR.

“The flush mechanism is a dual flush rod pull cistern T58 ALU”.

A special flush pipe kit that allows the cistern to be placed on a wall next to the pan is available : Angled Flush Pipe Kit T34 CHR.

High Level wc can be used where the soil pipe is located in the floor. The pan can be located over the soil pipe by cutting the horizontal flush pipe to length.

The cistern height can be varied by cutting the vertical flush pipe to length - maximum height is 2,380mm to the top of the cistern, minimum height is 1,625mm.

Bottom inlet valve (SP5A).

Regal Height pan ( floor to pan rim height 48cm ) available : P16.

Ceramic soil connection pipes : straight connector to the wall : C29. The S trap connector bending down to the floor : C26.

P trap standard height pan - height from floor to pan rim is 40cm.

Spare parts

SP459	black rubber wedge for all finishes products of T30
SP1353	brass fixing nut for all finishes products of T30, T31, T33, T34
SP429	buffer Clip for T30CHR without black rubber wedge
SP17A	chrome cover caps(pair) for Burlington pans, bidet, semi pedestal and U1
SP1034	chrome hole stopper of cistern fittings for high level cisterns C5, C5D, T58 ALU, T59 WHI, T60 BLA
SP104	control bracket for T30CHR
SP119	decorative cover of cistern connection for T30CHR & T33CHR
SP7	fittings for High Level Cistern including Cistern Lever
SP97	flush cone for HL cistern
SP15	handle for high level cistern from T30CHR kit
SP10	high Level Cistern lever
SP1044	high level dual flush valve including the cable, control box and cistern lever for product C5, T58 ALU, T59 WHI, T60 BLA, T70 CHR
SP14	high Level Rod for T30 CHR, T34 CHR
SP384	inlet valve with G1, 2 chromed-Brass shank and nut for High lever cistern fittings (part of SP7)
SP1351	long pull arm for High level cistern from T30CHR kit
SP840	noise reducer for high level cistern fittings
SP146	pin screw for T30 CHR
SP918	plastic hole stopper of cistern fittings for high level cisterns
SP17	screw fixing pack for pan and bidet
SP1352	spares for T30CHR: screw x 12, rawl plug x 12, rubber spacing washer x 4, pin screw x 1
SP1365	the bottom section of the high level flush pipe
SP95	washers & plastic fixing nut for flush pipe
SP387	WC floor fixing plastic caps - GOLD
SP1744	white caps & inserts (2 pieces) of floor fixings for Burlington pans, bidets and urinals
