OffSet Quadrants
asaq2.Model.Web_product_new?.web_name
Product Options
Sizes

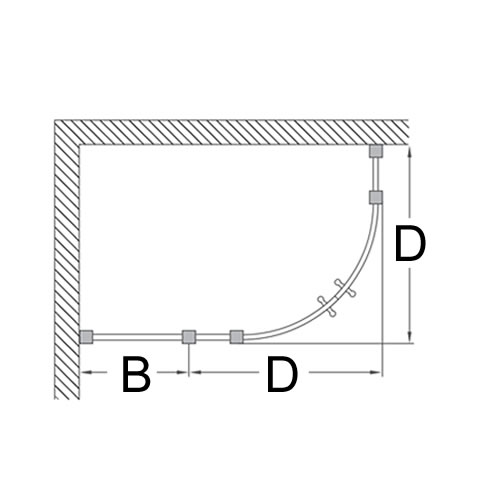

quadrant_offset_option.jpg 80cm (D), 20cm (B) Quadrant 90cm & 30cm in-line panel 90cm (D), 30cm (B) Quadrant 80cm & 40cm in-line panel 80cm (D), 40cm (B)
Alternate Text
As Shown

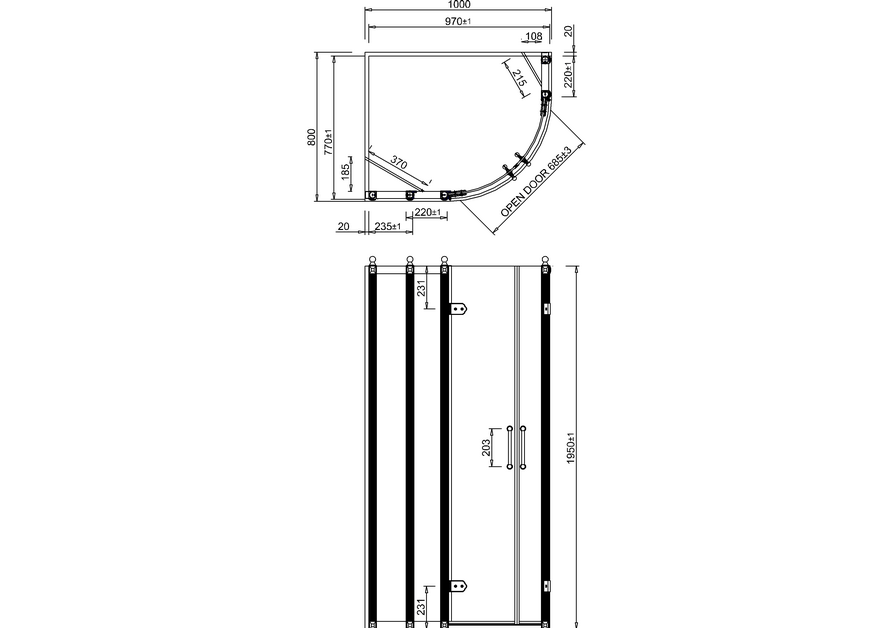

C22A 800 x 800 Quadrant door BOX A ONLY
C15 200mm inline panel
C22B 800 x 800 Quadrant door BOX B ONLY
BU41  -  Combined product code
Guarantee
10 year guarantee*
*Full terms & conditions here
Standards Information
C22A  -  WRAS Not Applicable
C15  -  WRAS Not Applicable
C22B  -  WRAS Not Applicable
BS EN14428:2015
BS EN 12150-1:2015
Additional Information
Quadrant door 8mm glass, in-line panel 6mm glass
Safety glass with 3M™ Easy Clean Coating
SP124 aluminium frame, 2 x hinges and screws for C22 & C23 (Left version)
SP241 base rail - B037 for C23, C22
SP61 bottom Waterproof Strip for C19, C20, C21, C22, C23 (single) (B035, B036)
SP1187 bottom waterproof strip used for BS5L, BS5R
SP60 burlington Shower Enclosure Handle (B018)
SP59 inline Panel Spare Kit
SP1023 right door of C22, C23
SP242 side profile - B015 for C23, C22, C21, C20, C19 (pair)
SP406 support bar for C15, C22 (B031, L=215mm)
SP1221 the black magnetic strips for Burlington quadrant C22, C23, L=1902mm
SP921 top cap of door profile for product C10, C19, C20, C21, C22, C23, C6S, C7S, C8S, BS3, BS8L, BS8R
