Sliding doors
Product Options
Sizes
110cm (A)
|
120cm (A)
|
140cm (A)
|
120cm (A), 30cm (B)
|
140cm (A), 20cm (B)
|
140cm (A), 30cm (B)
|
As Shown
| C6S 1100mm soft close slider |
| BU68 - Combined product code |
Material
| C6S - door - Aluminum |
Size
| C6S - 1060 x 1950mm |
Nett Weight
| C6S - door - 38.6kg |
Gross Weight Including Packaging
| C6S - door - 43.8kg |
Packed Dimension
| C6S - 2010 x 1125 x 90 = 0.2035 m3 |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN14428:2015 |
|
BS EN 12150-1:2015 |
Additional Information
|
Slider door 8mm glass, fix panel 6mm glass |
|
Safety glass with 3M™ Easy Clean Coating |
| SP94 | 4 runners (one set) for slider C6S, C7S, C8S. |
| SP885 | bottom sealing strip of fixed panel for product C6S, C7S, C8S |
| SP514 | decorative cap for C6S, C7S, C8S (B047) |
| SP1116 | magnetic strip B108 for C8S, C6S, C7S (L=1896, 1930) |
| SP1356 | moving glass for C6S including magnetic strip |
| SP477 | part BO46 for C6S, C7S, C8S |
| SP242 | side profile - B015 for C23, C22, C21, C20, C19 (pair) |
| SP129 | soft Close Mechanism |
| SP921 | top cap of door profile for product C10, C19, C20, C21, C22, C23, C6S, C7S, C8S, BS3, BS8L, BS8R |
Downloads
-
2D CAD-File - DWG -
BU68
(BU68_LD.dwg)
-

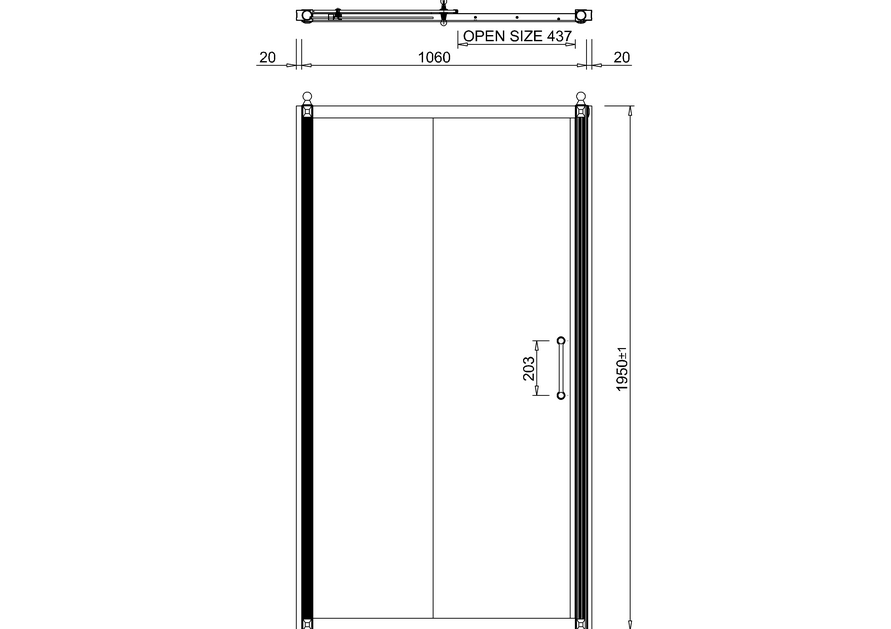

2D Drawing - PDF -
BU68
(BU68_LD.pdf)
2D Drawing - PDF - BU68
