EcoSquare Showering Bath
asaq2.Model.Web_product_new?.web_name
Product Options
Bath size options

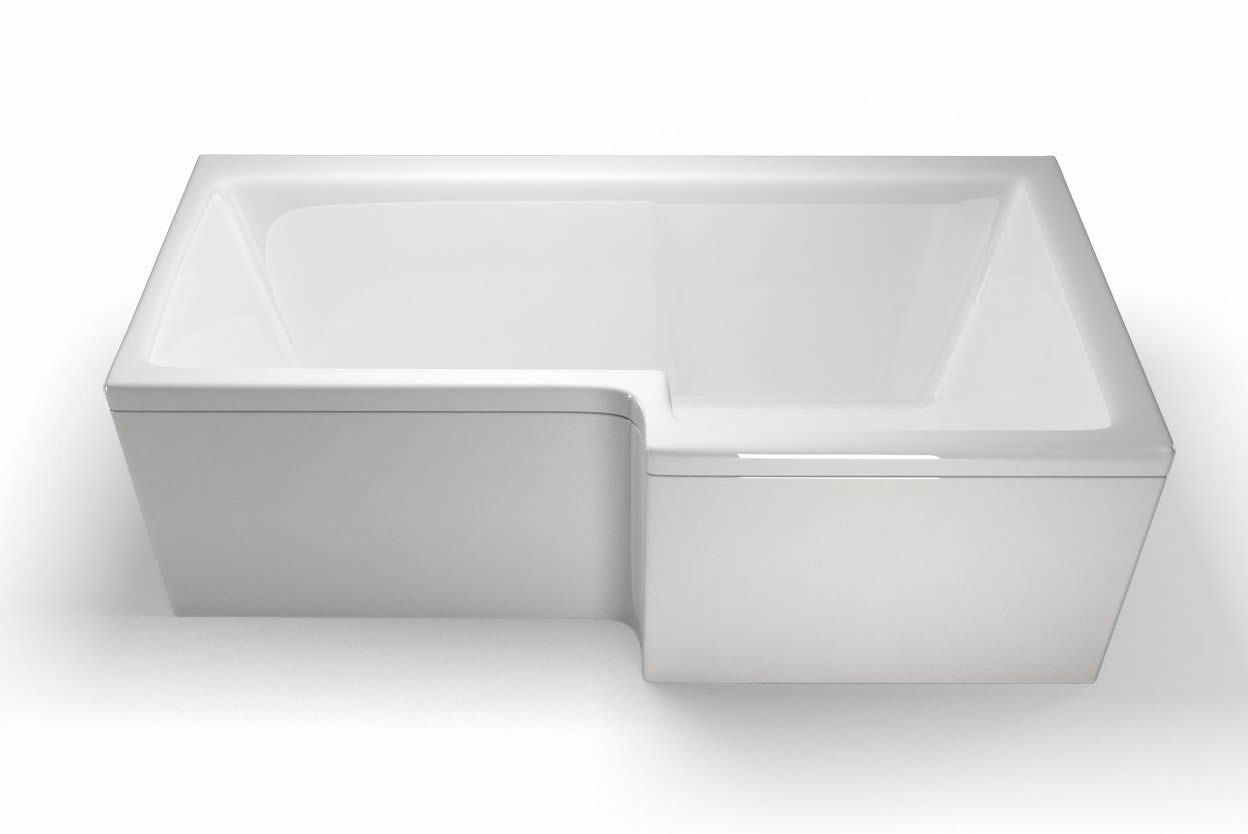

EcoSquare showering bath - left hand left hand EcoSquare showering bath - right hand right hand
Alternate Text
As Shown
R17 EcoSquare bath LH
Colour
R17 - bath - Gloss White
Material
R17 - bath - Acrylic
Size
R17 - 850 x 1700 x 433mm
Nett Weight
R17 - bath - 31.7kg
Gross Weight Including Packaging
R17 - bath - 32.3kg
Packed Dimension
R17 - 1710 x 860 x 450 = 0.6618 m3
Bath water capacity
165 litres displaced water capacity
Tap Hole Options
0, 1, 2
Guarantee
10 year guarantee*
*Full terms & conditions here
Standards Information
R17  -  WRAS Not Applicable
BS EN 14516:2015+A1:2018
Additional Information
Overflow hole is predrilled
Compatible Products
R18F -    EcoSquare Front Panel
R27E -    End bath panel 700
BS8R -    EcoSquare bathscreen right with access panel
CW8 -    Click-clack bath waste
Downloads
  • Instructions - PDF - R17 (English)
  • Instructions - PDF - R17 (French)
  • 3D DWG - File - DWG  -  R17 (BS-1786L.dwg)
  • 3D DXF - File - DXF  -  R17 (BS-1786L.dxf)
  • 3D IGS - File - IGS  -  R17 (BS-1786L.igs)
  • 3D RFA BIMM Objects - File - RFA  -  R17 (R17.rfa)

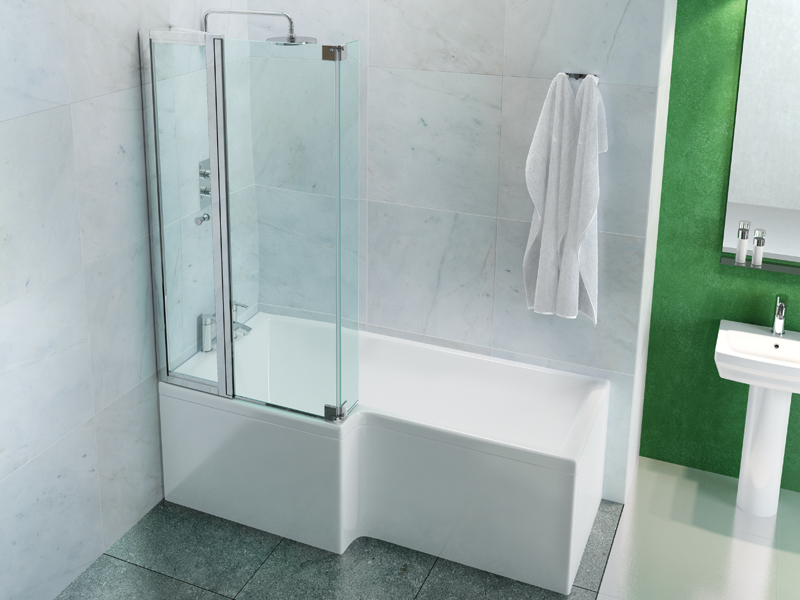

  • Lifestyle image 1 -
    jpg

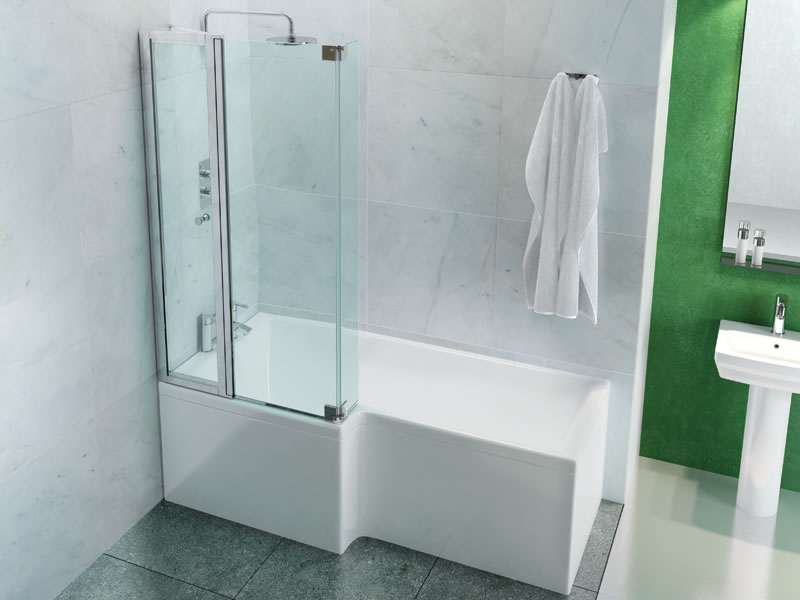

  • Lifestyle image 2 - tiff
    jpg
  • Product image 1 - jpg

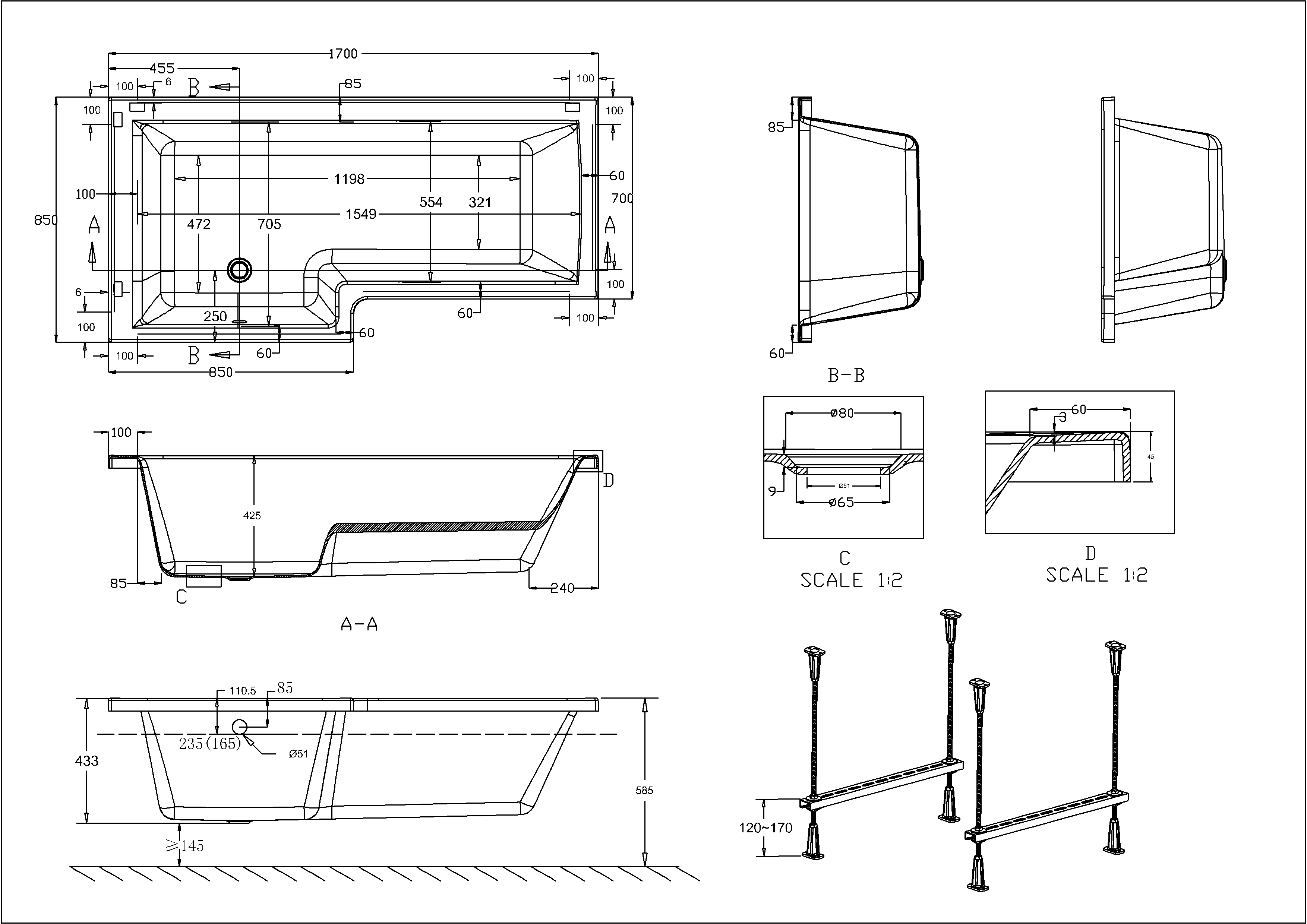

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
