Front bath panel

asaq2.Model.Web_product_new?.web_name

Product Options

Front bath panel size options

Front bath panel 1500

1500mm

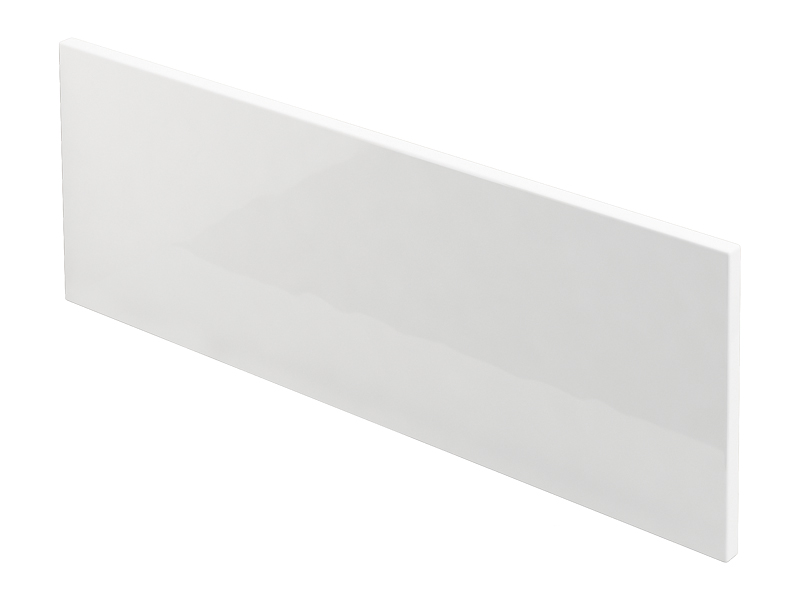

Front bath panel 1600

1600mm

Front bath panel 1700

1700mm

Front bath panel 1800

1800mm

Front bath panel 1900

1900mm

Alternate Text

As Shown

R23F 1500mm front bath panel

Colour

R23F - bath panel - Gloss White

Material

R23F - bath panel - Acrylic

Size

R23F - 40 x 1500 x 540mm

Nett Weight

R23F - bath panel - 4.8kg

Gross Weight Including Packaging

R23F - bath panel - 5.3kg

Packed Dimension

R23F - 1510 x 550 x 45 = 0.0374 m3

Guarantee

2 year guarantee*
*Full terms & conditions here

Standards Information

BS EN 14516:2015+A1:2018

SP379	cleargreen bath panel spares
SP628	set of clips for bath panels (1 set of 8 pieces)

Downloads

Instructions - PDF - R23F (English)
Instructions - PDF - R23F (French)

2D CAD-File - DWG - R23F (R23F.dwg)

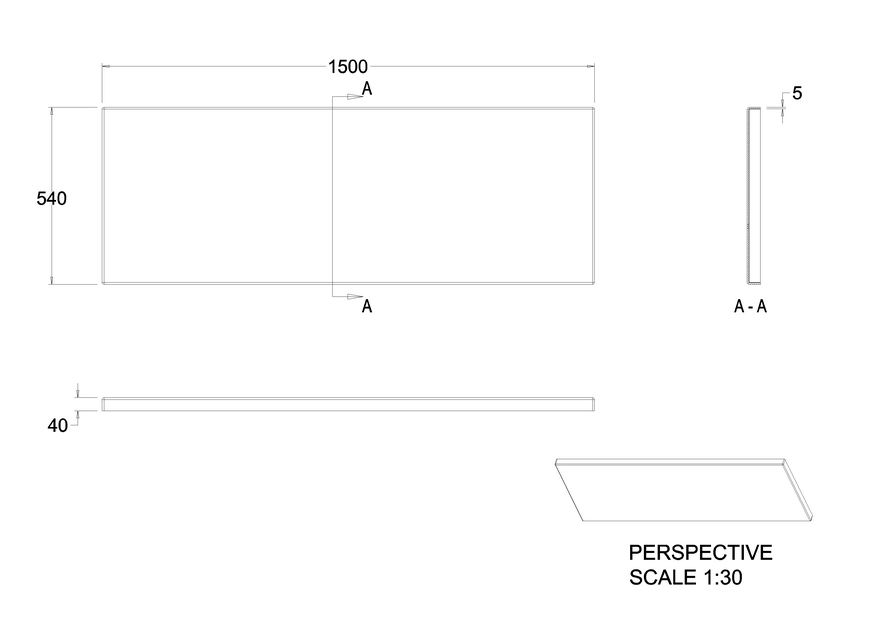

2D Drawing - PDF - R23F (R23F.pdf) 2D Drawing - PDF - R23F

3D DWG - File - DWG - R23F (41405002290.dwg)
3D DXF - File - DXF - R23F (41405002290.dxf)
3D IGS - File - IGS - R23F (41405002290.igs)
3D RFA BIMM Objects - File - RFA - R23F (R23F.rfa)

Product image 1 - jpg

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
