EcoSquare bathscreen
Product Options
EcoSquare bathscreen options
|
bathscreen left with access panel
|

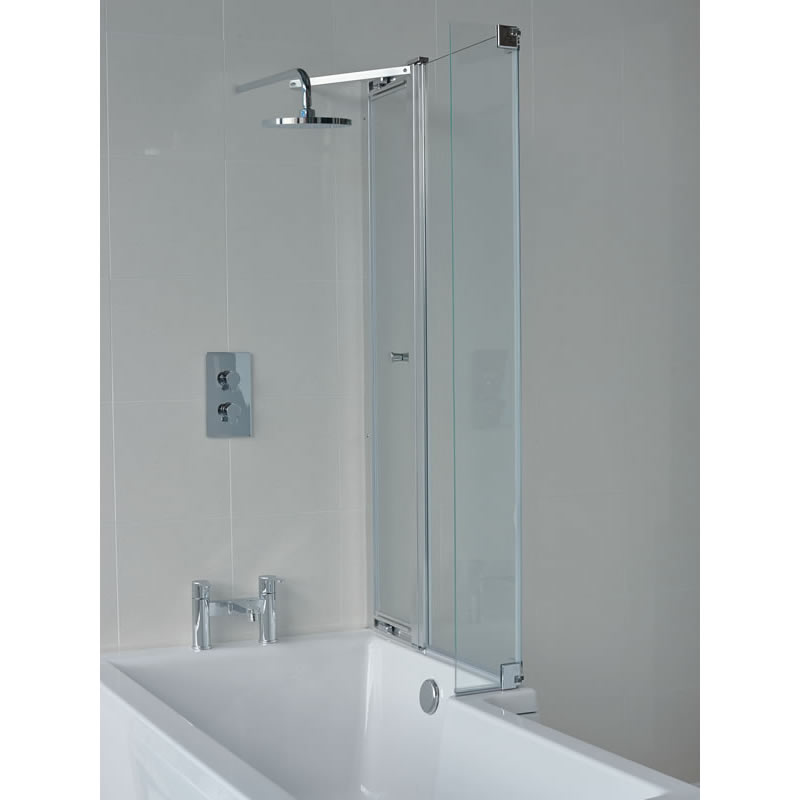

bathscreen right with access panel
|

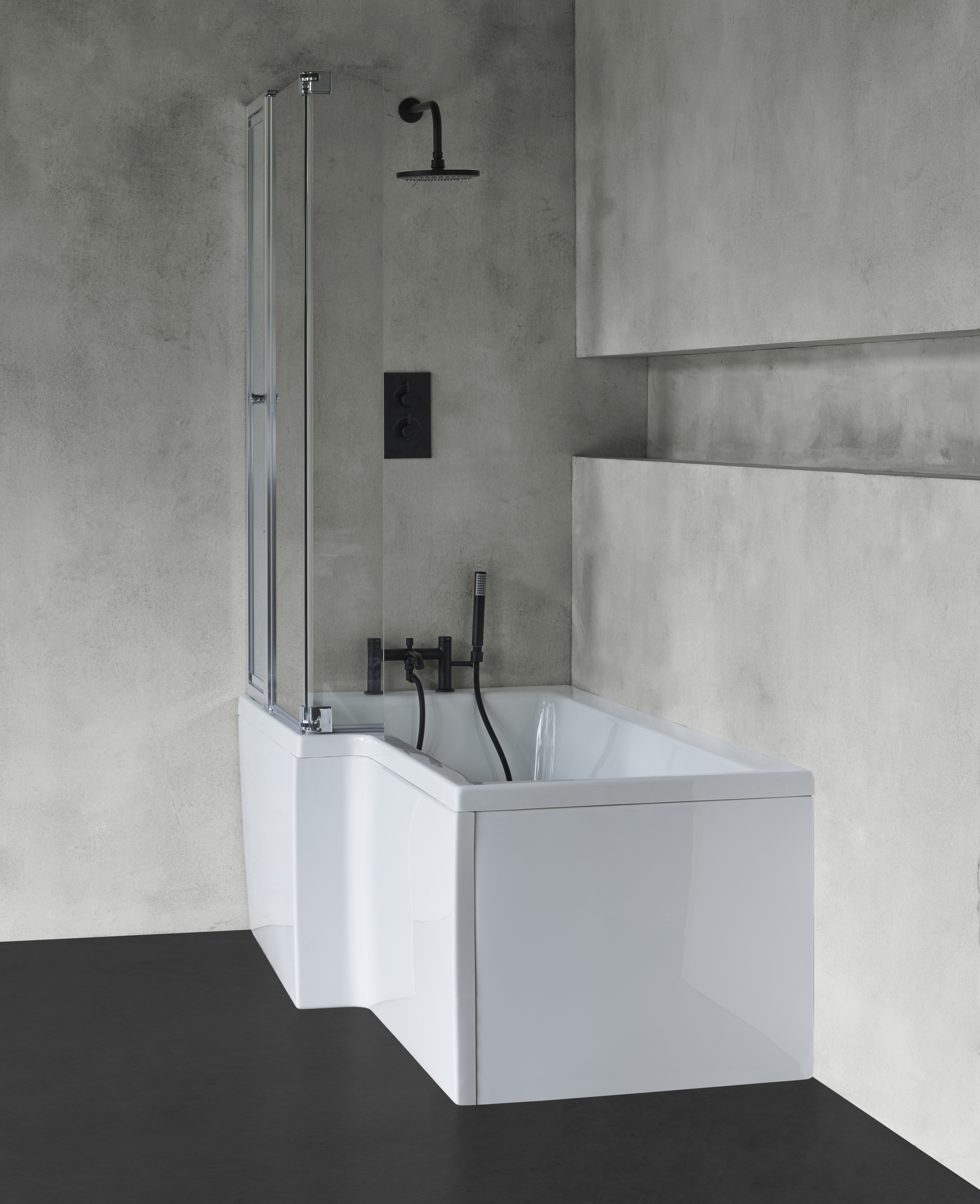

As Shown
| BS8L − |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN14428:2015 |
|
BS EN 12150-1:2015 |
Additional Information
|
Glass thickness: 6mm & 8mm |
|
Screen opens both inwards and outwards |
|
Safety glass with 3M Easy Clean Coating |
| SP184 | bottom waterproof strip for BS8L, BS8R |
| SP221 | spare fitting kit for BS8L bathscreen |
| SP229 | support bar L=370 for BS2, BS3, BS8L, BS8R |
| SP181 | top and bottom waterproof strips for access panel door on product BS8L, BS8R, BS3 – pair |
| SP180 | vertical seal between glass for BS4L, BS4R, BS5L, BS5R, BS8L & BS8R bathscreens |
| SP179 | vertical seal between profile & glass for access panel on BS3, BS8L & BS8R screens |
| SP182 | vertical seal between profile & glass for BS2, BS3, BS8L & BS8R bathscreens |
Downloads
-
2D CAD-File - DWG -
BS8L
(DCP9KXLBS8L.dwg)
-

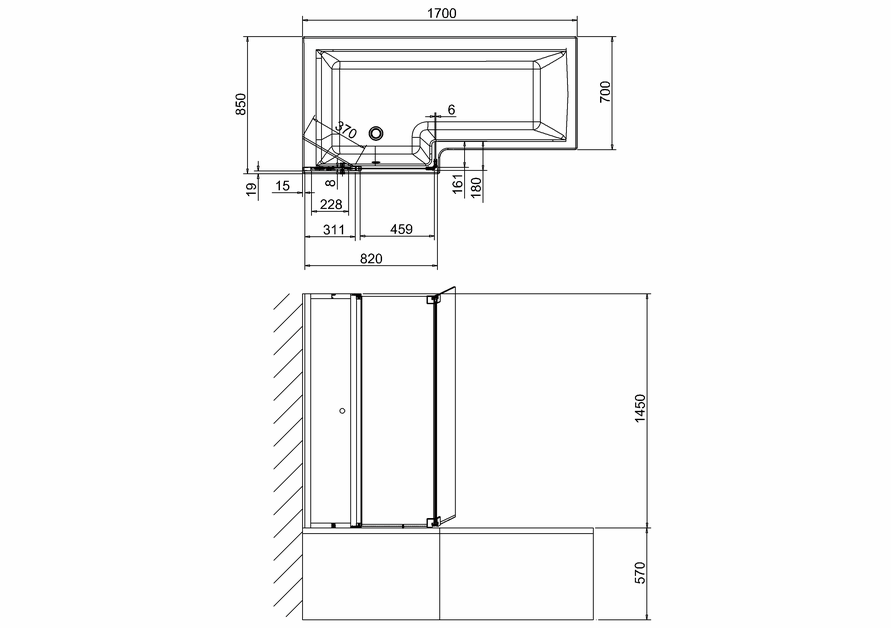

2D Drawing - PDF -
BS8L
(DCP9KXLBS8L.pdf)
2D Drawing - PDF - BS8L
-
3D DWG - File - DWG
-
BS8L
(BS8L.dwg)
-
3D DXF - File - DXF
-
BS8L
(BS8L.dxf)
-
3D IGS - File - IGS
-
BS8L
(BS8L.igs)
-
3D RFA BIMM Objects - File - RFA
-
BS8L
(BS8L.rfa)
