Edwardian 80cm basin
Product Options
Options
wash stand options
with Classic pedestal
|
with regal pedestal
|
with wash stand
|
|
chrome
|
gold
|
brushed nickel
|
As Shown

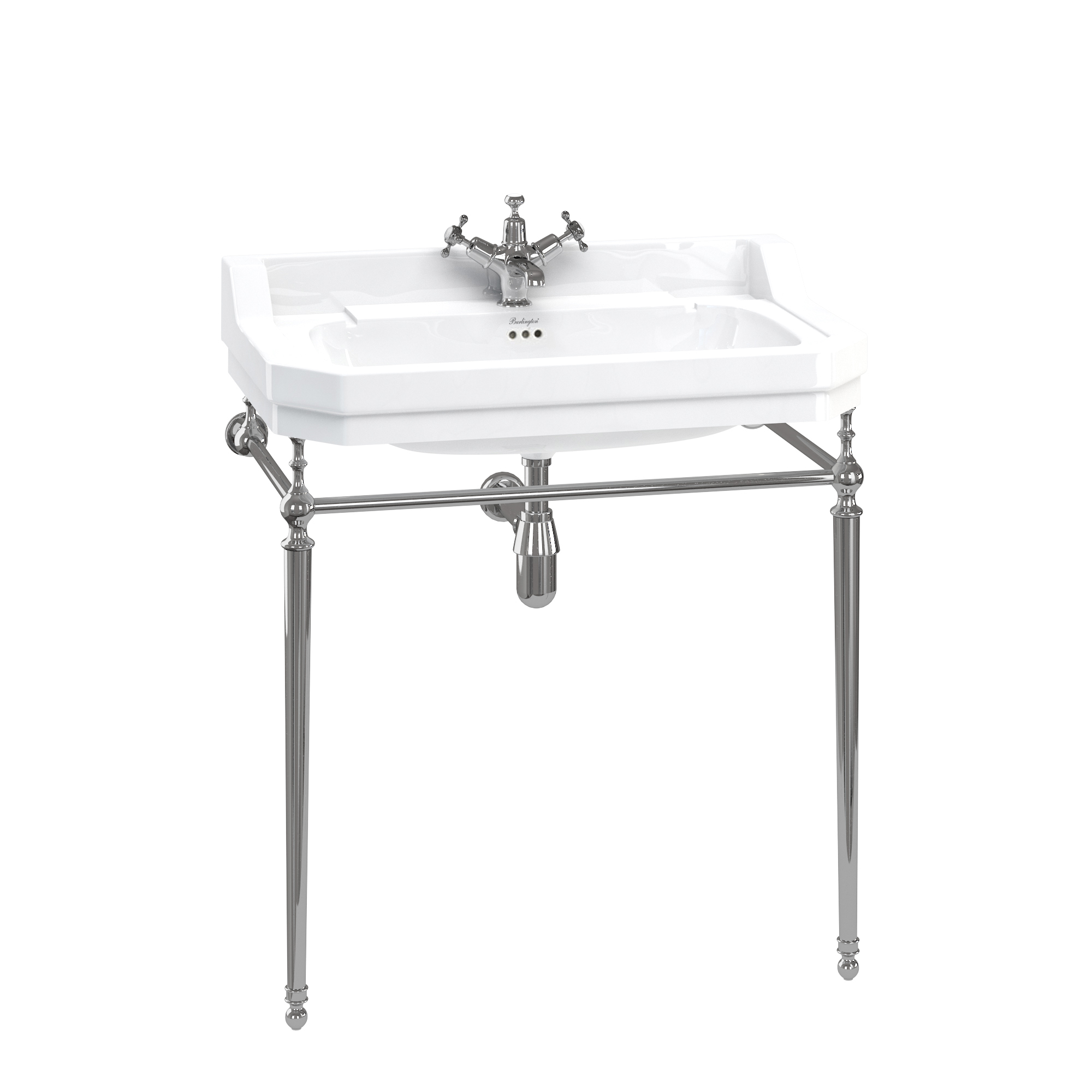

| B181TH Edwardian 80cm basin one tap hole |
| T50CHR Edwardian 80cm basin wash stand chrome plated brass fittings |
Nett Weight
| B181TH - basin - 22.5kg |
| T50CHR - wash stand - 3.6kg |
Gross Weight Including Packaging
| B181TH - basin - 25.88kg |
| T50CHR - wash stand - 4.5kg |
Packed Dimension
| B181TH - 815 x 520 x 295 = 0.125 m3 |
| T50CHR - 750 x 435 x 125 = 0.0408 m3 |
Tap Hole Options
| Available with one (1TH), two (2TH) or three (3TH) tap holes |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 31:2011 |
|
BS EN 14688:2015 |
Additional Information
|
The 2 legs are held securely in place by 2 floor mounted nipples. |
|
To order the correct tap hole configuration simply use 1TH, 2TH or 3TH at the end of the basin product code. |
|
The overflow is to solve the issue of a dripping tap if the plug is left in. It is not designed to take a flowing tap. |
|
To raise the height of the wash stand by 6cm use the additional item T62. |
Compatible Products
| W1 - Basin plug and chain (option for two tap hole basin only) |
| W11 - "Click-clack" Basin waste slotted |
| W14 - Traditional basin bottle trap |
| W18 - Flip-top basin waste slotted |
| SP843 | adjustable screw of Burlington basin stands (piece) |
| SP1714 | basin fixings for Burlington & Britton basins |
| SP824 | floor fixings of Burlington basin stands (including 6pcs plug, 6pcs screws, 6pcs nipples washers and 2pcs floor nipples) |
| SP838 | foot for Burlington basin stands (piece) |
| SP1587 | grub screw for Burlington basin stands |
| SP1708 | leg for Burlington basin stand T21A CHR, T22A CHR, T23A CHR, T24A CHR, T50 CHR, T51 CHR |
| SP225 | rubber washer for basin stands |
Downloads
-
2D CAD-File - DWG -
B18 1TH T50 CHR
(B18 1TH T50 CHR_LD.dwg)
-

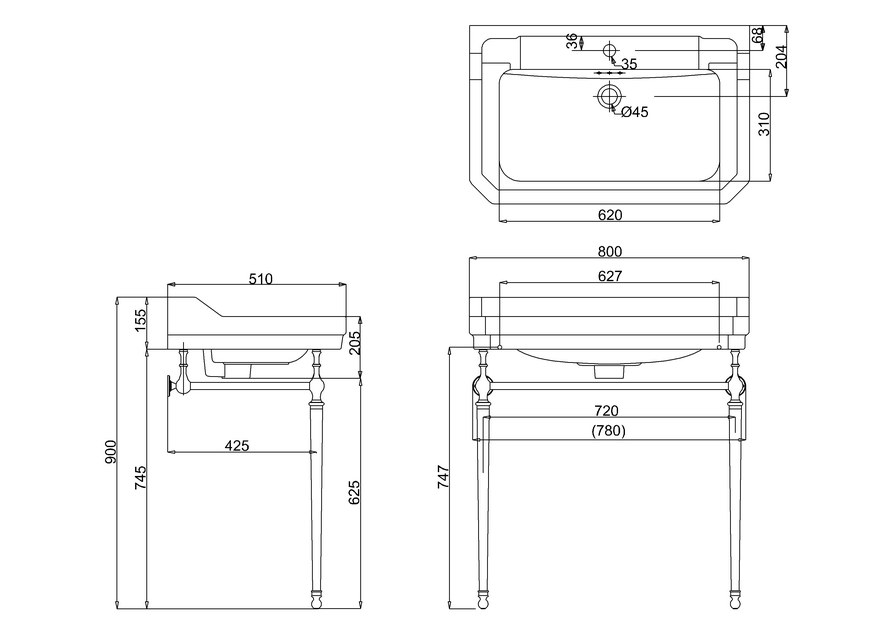

2D Drawing - PDF -
B18 1TH T50 CHR
(B18 1TH T50 CHR_LD.pdf)
2D Drawing - PDF - B18 1TH T50 CHR
-
3D DWG - File - DWG
-
B18 1TH T50 CHR
(70009.dwg)
-
3D DXF - File - DXF
-
B18 1TH T50 CHR
(70009.dxf)
-
3D IGS - File - IGS
-
B18 1TH T50 CHR
(70009.igs)
-
3D RFA BIMM Objects - File - RFA
-
B18 1TH T50 CHR
(70009.rfa)
