Viride offset bath panel

asaq2.Model.Web_product_new?.web_name

Product Options

size options

Viride offset bath panel 1700 x 750mm

1700mm

Viride offset bath panel 1800 x 750mm

1800mm

Alternate Text

As Shown

R40 Viride offset bath panel

Colour

R40 - bath panel - Gloss White

Material

R40 - bath panel - Acrylic

Size

R40 - 750 x 1700 x 540mm

Nett Weight

R40 - bath panel - 7.2kg

Gross Weight Including Packaging

R40 - bath panel - 7.7kg

Packed Dimension

R40 - 1710 x 760 x 550 = 0.7148 m3

Guarantee

2 year guarantee*
*Full terms & conditions here

Standards Information

BS EN 14516:2015+A1:2018

SP1176	fixing kit for R40
SP628	set of clips for bath panels (1 set of 8 pieces)

Downloads

Instructions - PDF - R40 (English)
Instructions - PDF - R40 (French)

2D CAD-File - DWG - R40 (R40.dwg)

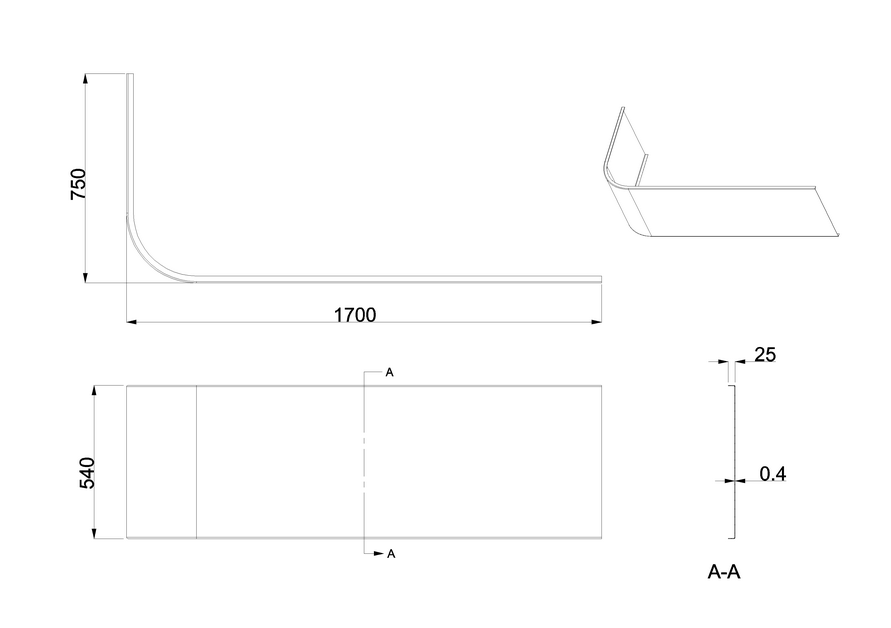

2D Drawing - PDF - R40 (R40.pdf) 2D Drawing - PDF - R40

3D DWG - File - DWG - R40 (R40BSAB-1777H_5.dwg)
3D DXF - File - DXF - R40 (R40BSAB-1777H_5.dxf)
3D IGS - File - IGS - R40 (R40BSAB-1777H_5.igs)
3D RFA BIMM Objects - File - RFA - R40 (R40.rfa)

Product image 1 - jpg

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
