130 Freestanding Vanity Unit with Doors
Product Options
Finish Options
Worktop options
Dark Olive
|
Sand
|
Matt White
|
Classic Grey
|
Blue
|
Matt Green
|
Minerva Carrara white worktop
|
Minerva white worktop
|
Minerva black granite worktop
|

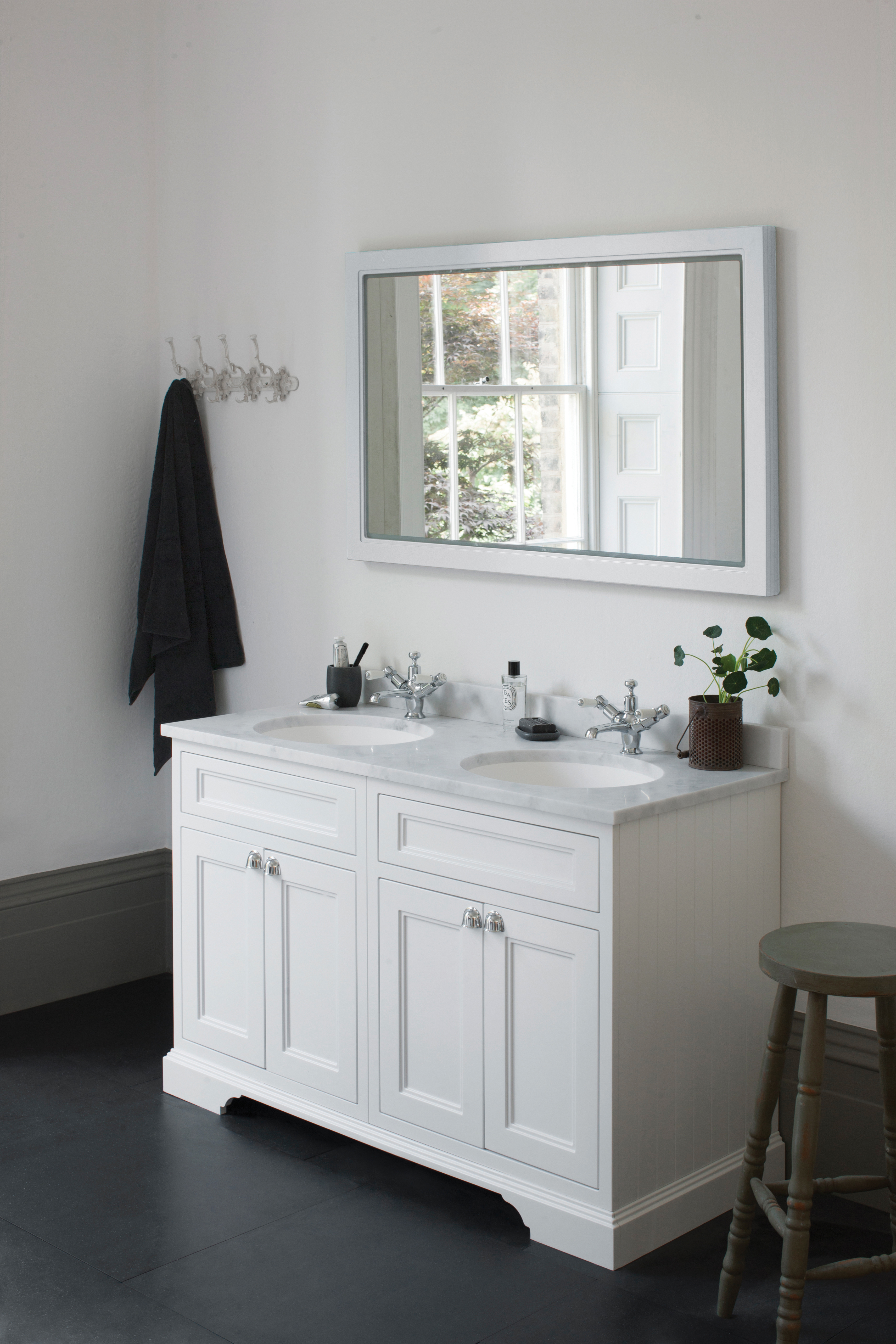

As Shown
| BW12 Minerva white with double vanity bowl |
| FC9W 1300 Freestanding Vanity Unit with Doors |
Material
| BW12 - worktop with intergrated basin - minerva solid surface material |
| FC9W - base unit - Engineered Wood - MDF |
Gross Weight Including Packaging
| BW12 - worktop with intergrated basin - 44kg |
| FC9W - base unit - 72kg |
Packed Dimension
| BW12 - 1420 x 625 x 255 = 0.2263 m3 |
| FC9W - 1384 x 660 x 1075 = 0.9819 m3 |
Tap Hole Options
| Tap holes are drilled by the installer. |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
|
EN14749:2016 |
Additional Information
|
Minerva worktops are supplied with an integrated bowl with overflow, and no tap holes. Tap holes are drilled by the installer in the required position and configuration. A template is provided with the Minerva tops indicating tap hole positions and sizes. |
|
A lacquered top coat with 3 layers of primer featuring UV stabilization to minimise colour fading from exposure to sunlight. |
|
Doors are soft closing |
|
Chrome plated metal handles |
|
Fully assembled |
|
One adjustable glass shelf |
|
A backsplash is supplied with the worktop but is optional as to whether you want to use it. This can be fit into place using silicon. |
| SPFF8DP-W | flat door panel for FF8W, FC9W, FC1W, FC2W, FC3W |
| SP1638 | packaging for P130 plinth |
| P130W | plinth for Freestanding 130 Vanity Unit- Matt White |
| SP762 | rectangular glass shelf for FF8, FC9 (588*358*5mm) |
| SP1637 | spare FC9 Carcass packaging box including inner honeycomb cardboards & plastic bag (no label) |
| SPFF8TF-W | top fascia for FF8W, FC9W |
Downloads
-
2D CAD-File - DWG -
FC9W_BW12
(FC9_FT2B_1.dwg)
-
2D Drawing - PDF -
FC9W_BW12
(FC9_FT2B_1.pdf)
2D Drawing - PDF - FC9W_BW12
-
3D DWG - File - DWG
-
FC9W_BW12
(90556.dwg)
-
3D DXF - File - DXF
-
FC9W_BW12
(90556.dxf)
-
3D IGS - File - IGS
-
FC9W_BW12
(90556.igs)
-
3D RFA BIMM Objects - File - RFA
-
FC9W_BW12
(90556.rfa)
