Welcome to the Bathroom Brands Technical Whitebook


Regal Close Coupled WC
asaq2.Model.Web_product_new?.web_name
Product Options
WC options

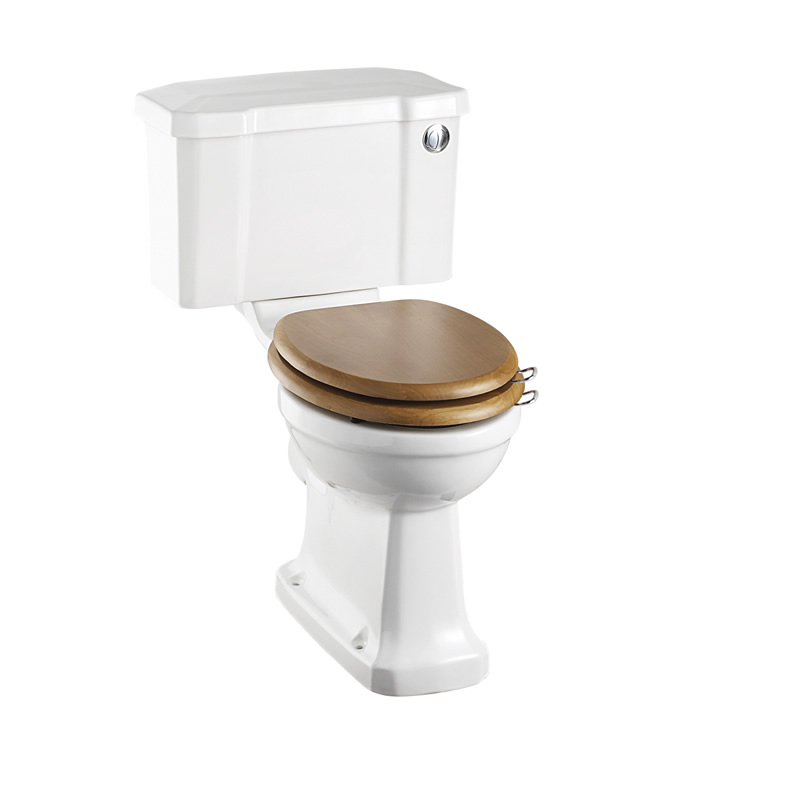

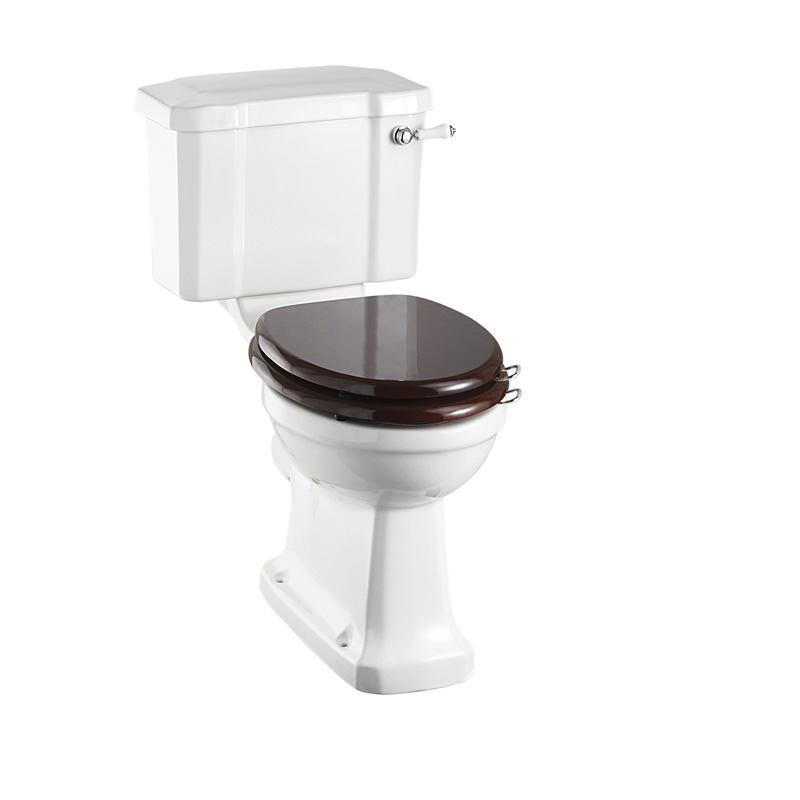

Regal CC WC with 520 lever cistern - Copy with lever flush 52cm wide cistern C1 Regal CC WC with 440 lever cistern - Copy with lever flush 44cm wide cistern C3 Regal CC WC with 520 front push  button cistern with push button flush 52cm wide cistern C2 Regal CC WC with 440 front push  button cistern with push button flush 44cm wide cistern C4
handle options
Regal CC WC with 520 lever cistern white & chrome Regal CC WC with 520 lever cistern white & nickel Regal CC WC with 520 lever cistern white & gold
Regal CC WC with 520 lever cistern black & chrome Regal CC WC with 520 lever cistern walnut & chrome lever_nickel.jpg white & brushed nickel
Alternate Text

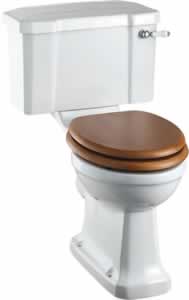

As Shown

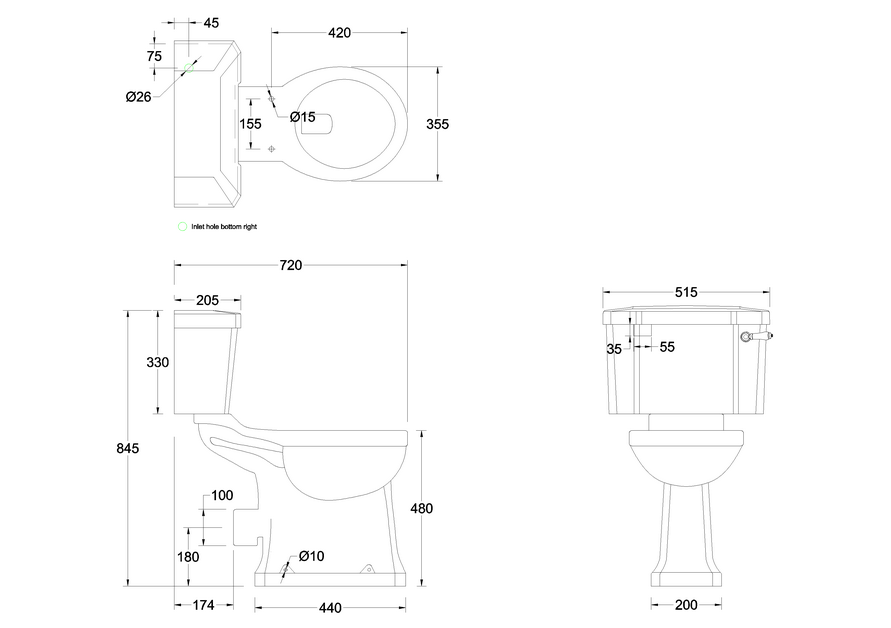

P12 Regal close coupled pan
C1 510mm close coupled/low level ceramic lever cistern
S11 Golden oak seat
A51 BNKL Burlington Seat Handle Brushed Nickel
SP390 BNKL Cistern Lever for C1 & C3 Brushed Nickel
Guarantee
Lifetime guarantee*
*Full terms & conditions here
Standards Information
BS EN 997:2012
BS EN 33:2011
Additional Information
Regal Height pan P12 ( floor to pan rim height 48cm ) is 8cm taller than a standard pan.
Water Inlet valve hole is located on the base of cistern tank on the right hand side
Bottom inlet valve (SP5A). Back inlet valve available as optional item (SP511).
Dual flush cistern fittings with ceramic lever on the right.
Press lever down for 6 litre flush and up for 3 litre flush.
Ceramic soil connection pipes : straight connector to the wall : C29. The S trap connector bending down to the floor : C26
Metal connection bracket.
Supplied with floor fixings.
Recommended to be used with cistern tank isolation valve W25
SP511 : Back entry kit for C1/C2/C3/C4/C30, including back entry inlet valve with flexible hose and plug
SP11 51cm Cistern Lid for C1 & C2
SP511 back entry kit for C1, C3, C2, C4, C30, ARC5, including back entry inlet valve with flexible hose and plug
SP1021 bottom sealing washer of flush valve for product C1, C3, C3, C4
SP509 buffers for the seat ring & lid for S11, S12, S16, S17
SP8 ceramic Cistern lever for Close Coupled, Low Level Cistern
SP17A chrome cover caps(pair) for Burlington pans, bidet, semi pedestal and U1
SP84 cistern flush valve with control cable for cistern fitting SP5 (excluding lever and inlet valve)
SP390 GOLD cistern Lever for C1, C3 - GOLD
SP620 complete bar hinges for S11, S12
SP192 hinge fixings for S11, S12, S16, S17 seats
SP504-2 inlet valve for Burlington close coupled cisterns
SP508 kit for close couple cistern
SP507 kit for low level installation for close coupled cisterns C1, C2, C3, C4, T71 CHR
SP5A lever Flush Bottom Entry cistern fitting with ceramic lever
SP193 spare Parts for S11, S12
SP802 the bigger stopper for SP5A, ARCSP7, C24C, SP7
SP1744 white caps & inserts (2 pieces) of floor fixings for Burlington pans, bidets and urinals
