Welcome to the Bathroom Brands Technical Whitebook
search
autorenew
Edwardian Rectangular
Product Options
tap hole options
Finish Options
options
|
1 tap hole
|
|
white
|

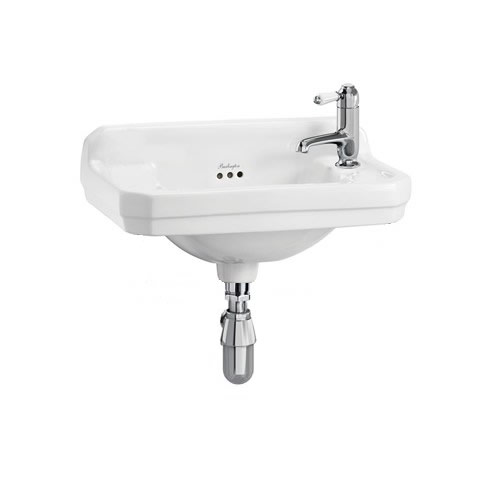

wall hung
|

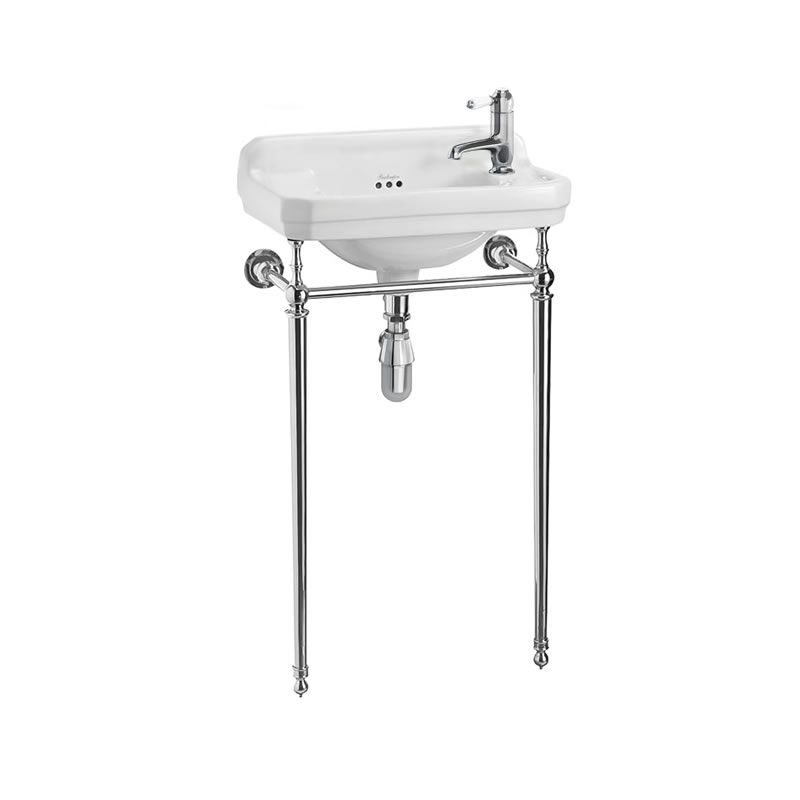

with wash stand
|

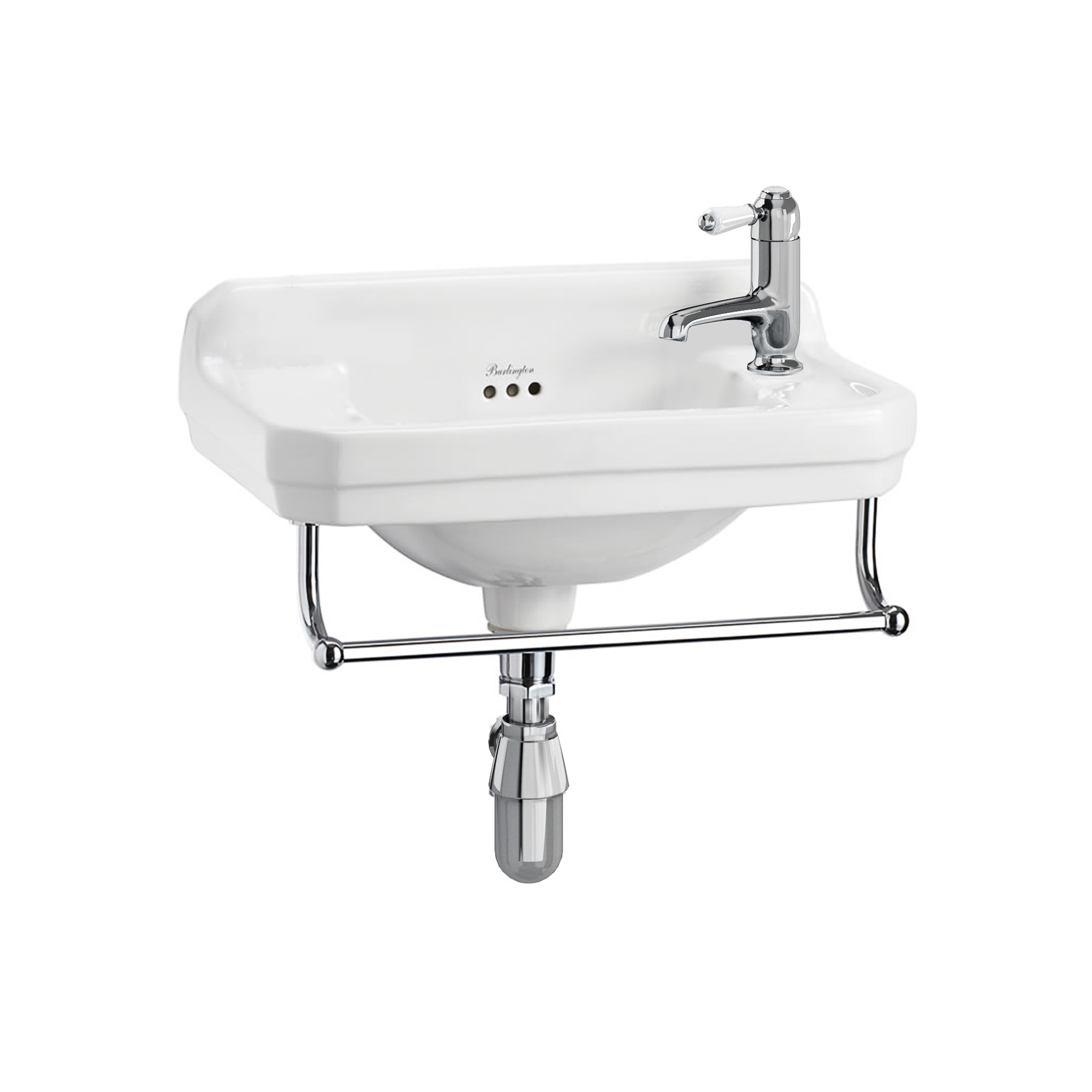

with towel rail
|
with brushed nickel wash stand
|

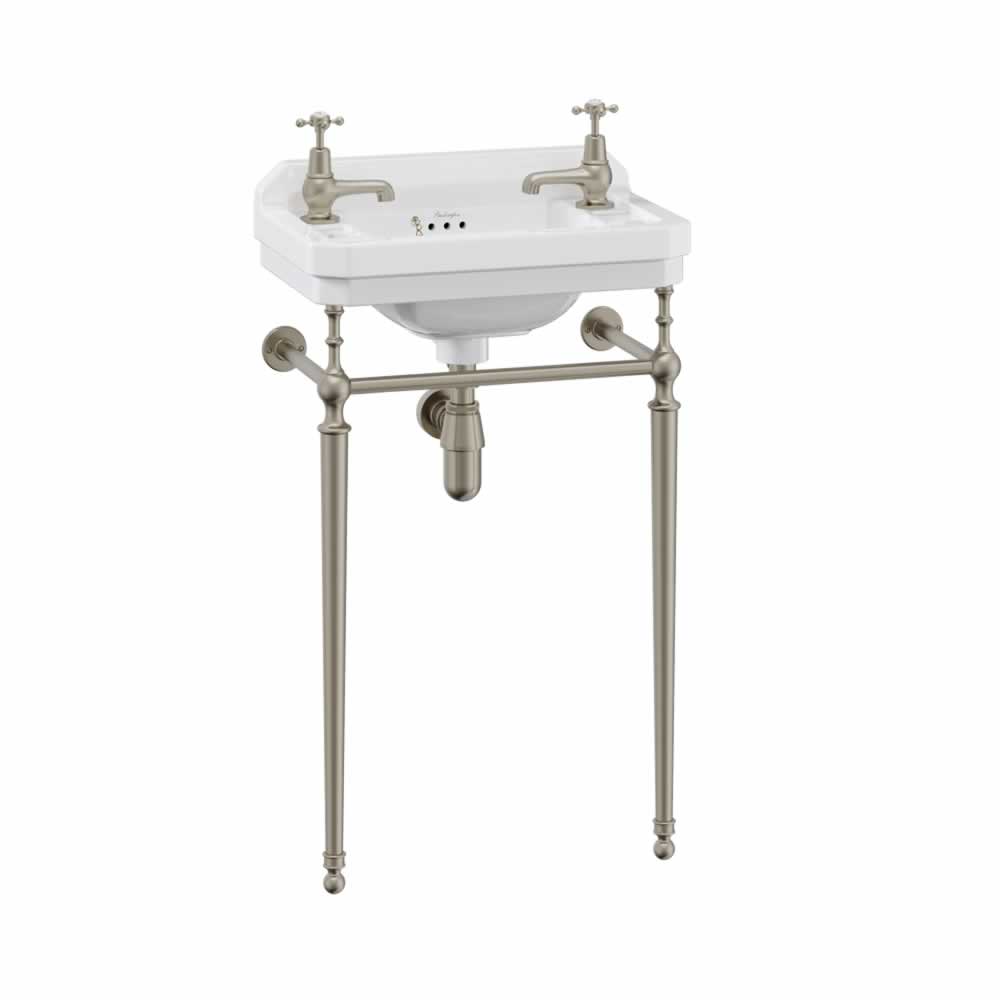

As Shown
| B8 − |
| T21ABNKL − |
Tap Hole Options
| Available with one (B8L or B8R) or two (B8) tap holes |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 31:2011 |
|
BS EN 14688:2015 |
Additional Information
|
The overflow is to solve the issue of a dripping tap if the plug is left in. It is not designed to take a flowing tap. |
|
The 2 legs are held securely in place by 2 floor mounted nipples. |
|
To raise the height of the wash stand by 6cm use the additional item T62. |
Compatible Products
| W1 - Basin plug and chain (option for two tap hole basin only) |
| W14 - Traditional basin bottle trap |
| W18 - Flip-top basin waste slotted |
| SP843BNKL | adjust Screw of Bur Basin Stands BNick |
| SP824BNKL | floor Fixings Bur Basin Stands BrNickel |
| SP838BNKL | foot for Bur Basin Stands in Bru Nickel |
| SP1587 | grub screw for Burlington basin stands |
| SP225 | rubber washer for basin stands |
| SP86 | wall brackets for cloakroom basins |
Downloads
- Instructions - PDF - B8 (English)
- Instructions - PDF - T21ABNKL (English)
- Instructions - PDF - (French)
- Instructions - PDF - (French)
-
2D CAD-File - DWG -
B8 T21A BNKL
(B8 T21A CHR _LD.dwg)
-

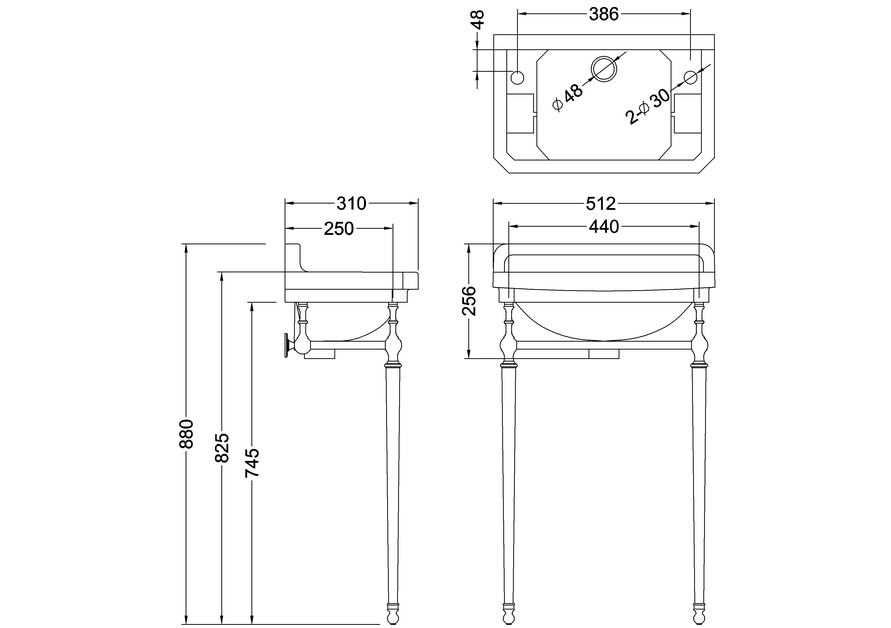

2D Drawing - PDF -
B8 T21A BNKL
(B8 T21A CHR _LD.pdf)
2D Drawing - PDF - B8 T21A BNKL
-
3D DWG - File - DWG
-
B8 T21A BNKL
(2746.dwg)
-
3D DXF - File - DXF
-
B8 T21A BNKL
(2746.dxf)
-
3D IGS - File - IGS
-
B8 T21A BNKL
(2746.igs)
-
3D RFA BIMM Objects - File - RFA
-
B8 T21A BNKL
(2746.rfa)
