Bath Screen
Product Options
Bath Screen options
|

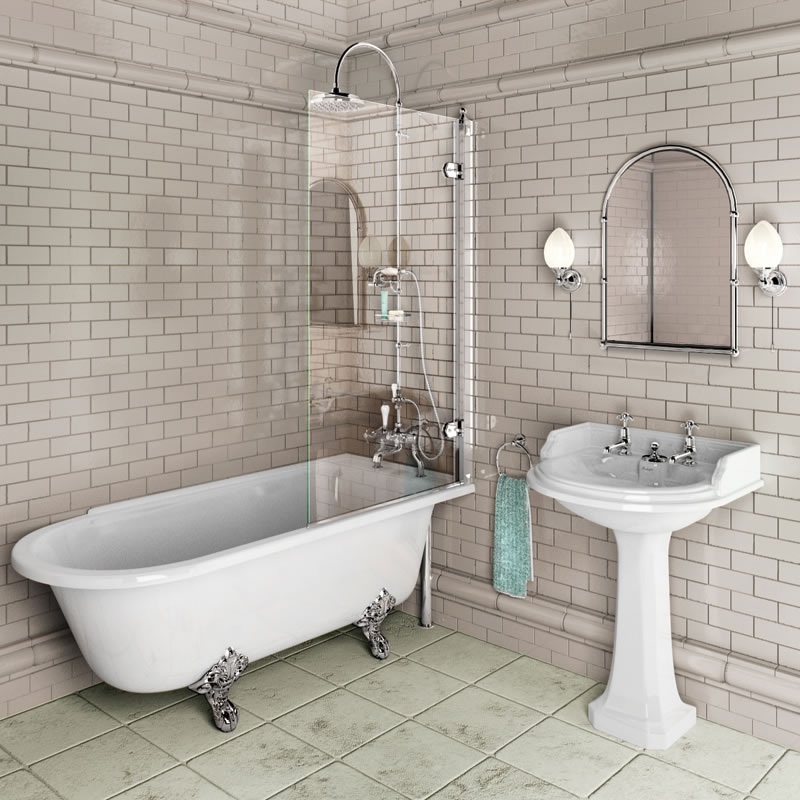

Without Access Panel
|

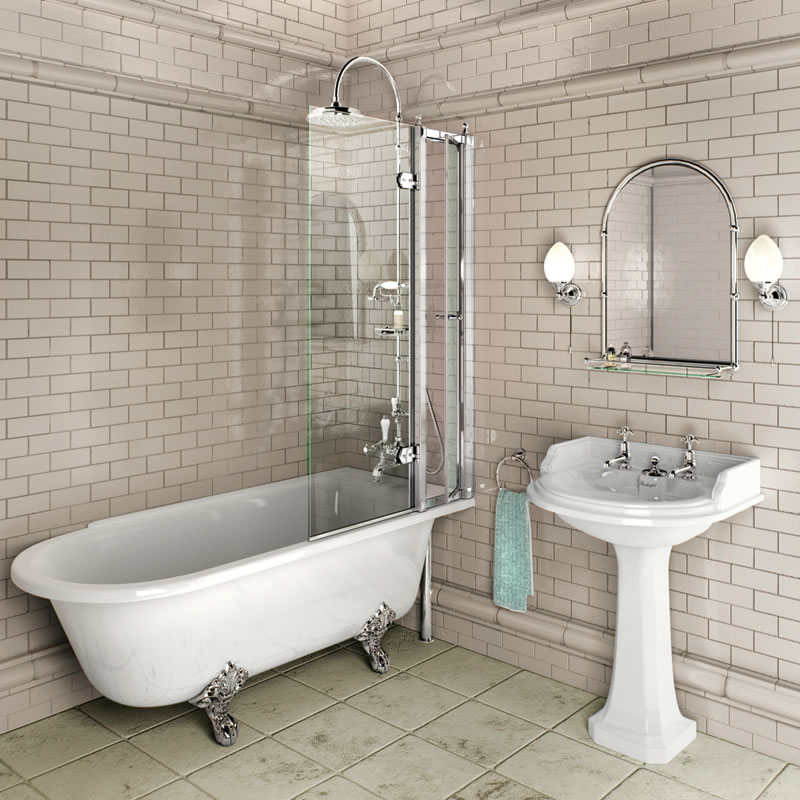

With Access Panel
|
As Shown
| C9 Bath screen |
| BU43 - Combined product code |
Material
| C9 - bathscreen - Aluminum |
Size
| C9 - 850 x 1450mm |
Nett Weight
| C9 - bathscreen - 25.9kg |
Gross Weight Including Packaging
| C9 - bathscreen - 30.7kg |
Packed Dimension
| C9 - 1510 x 915 x 87 = 0.1202 m3 |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN14428:2015 |
|
Safety Glass : BS EN 12150-1:2015 |
Additional Information
|
Safety glass with 3M™ Easy Clean Coating |
|
Screen opens outwards only |
| SP81 | bath screen bottom waterproof strip 1M |
| SP56 | bath Screen Spare kit |
| SP243 | bottom profile and waterproof strip for C9 (L=820mm) |
| SP121 | bottom water proof strip cap for C9, C10 - B050 |
| SP1690 | glass panel for C9 |
| SP912 | hinge of product C19, C20, C21, C9, C10 |
| SP1001 | hinge profile of product C9, C10 (without hinges) |
| SP1687 | hinge screws for Burlington shower enclosure C9, C10, C19, C20, C21, |
| SP405 | vertical waterproof strip for C9 (L =1450mm) |
| SP615 | wall profile for C9, C10 (B051) |
Downloads
-
2D CAD-File - DWG -
BU43
(C9_LD.dwg)
-

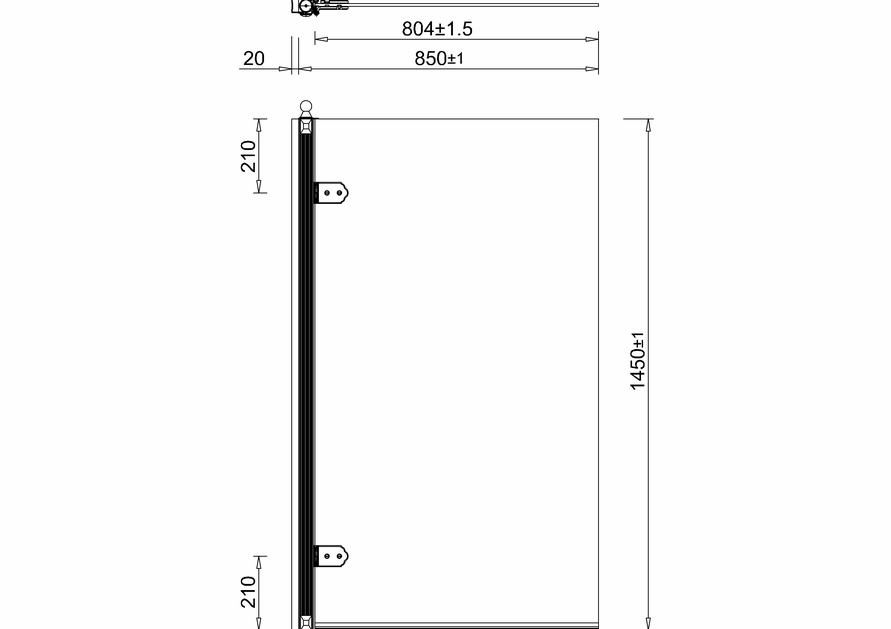

2D Drawing - PDF -
BU43
(C9_LD.pdf)
2D Drawing - PDF - C9
-
3D DWG - File - DWG
-
BU43
(C9.dwg)
-
3D DXF - File - DXF
-
BU43
(C9.dxf)
-
3D IGS - File - IGS
-
BU43
(C9.igs)
-
3D RFA BIMM Objects - File - RFA
-
BU43
(C9.rfa)
