ClearLine Baths - Sustain baths
Product Options
Sustain bath size options
|
1600 x 700mm
|
1700 x 700mm
|
1700 x 750mm
|
1800 x 800mm
|
As Shown
| R4N − |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 14516:2015+A1:2018 |
Additional Information
|
Overflow hole is predrilled |
Compatible Products
| R24F - Front bath panel 1600 |
| R27E - End bath panel 700 |
| CW8 - Click-clack bath waste |
| SP1173 | leg sets for Sustain, Verde, Viride offset baths, Clearline |
Downloads
-

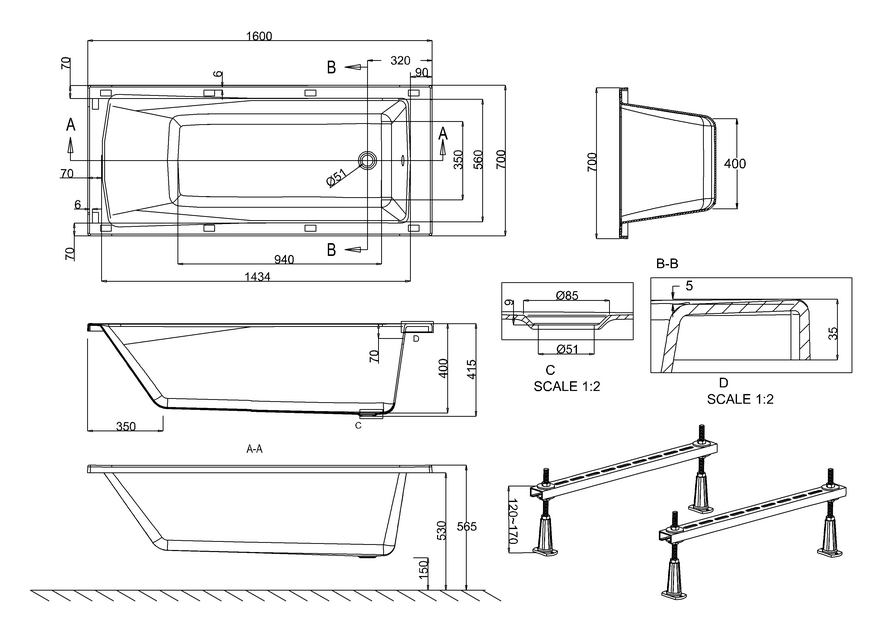

2D CAD-File - DWG -
R4N
(R4N_with_leg_set.dwg)
-
2D Drawing - PDF -
R4N
(R4N_with_leg_set.pdf)
2D Drawing - PDF - R4N
-
3D DWG - File - DWG
-
R4N
(BSA-1602HWC_1.dwg)
-
3D DXF - File - DXF
-
R4N
(BSA-1602HWC_1.dxf)
-
3D IGS - File - IGS
-
R4N
(BSA-1602HWC_1.igs)
-
3D RFA BIMM Objects - File - RFA
-
R4N
(R4.rfa)
