Sapphire basin mixer without waste
Product Options
waste options
|

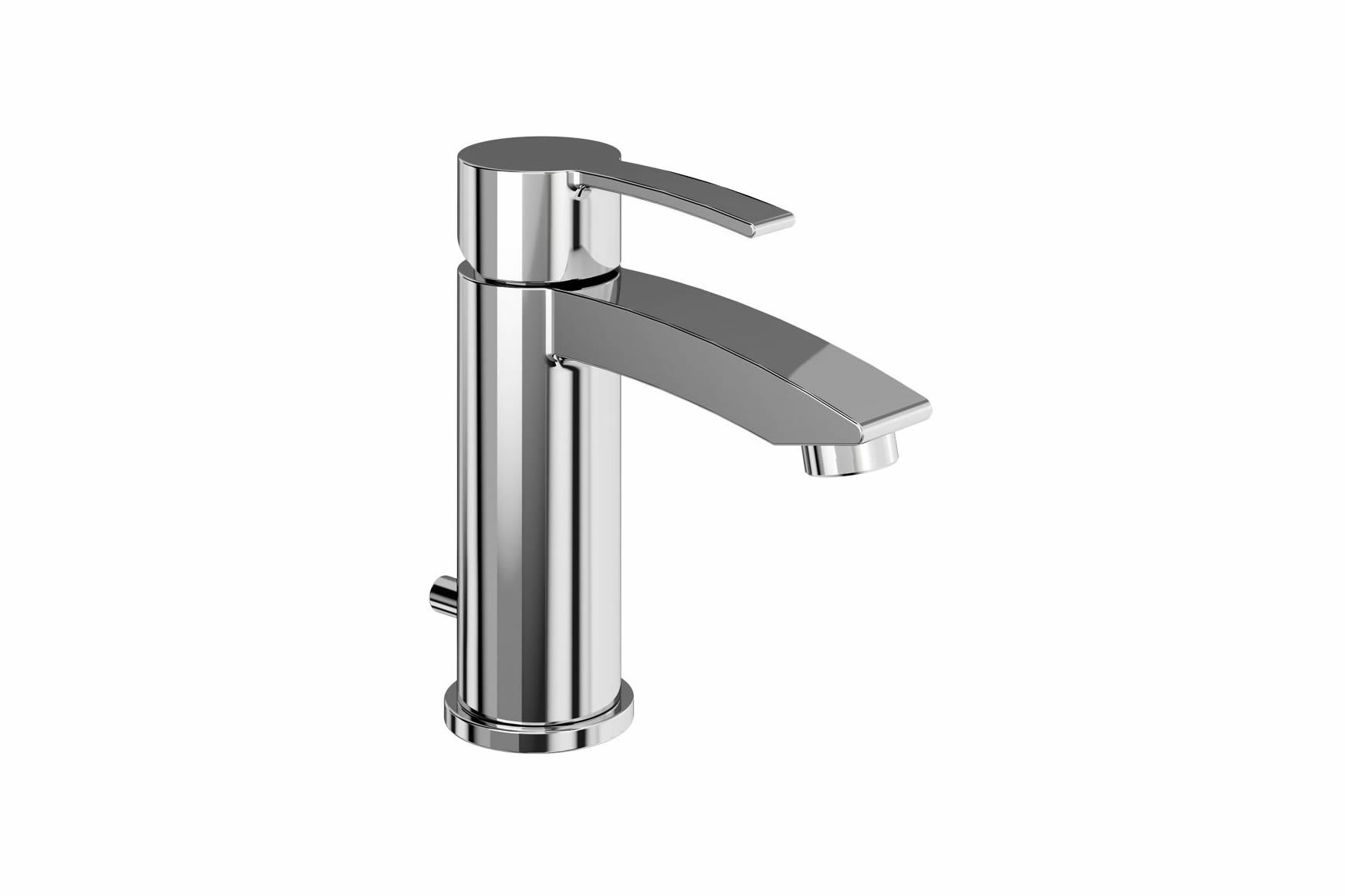

with pop-up waste
|
without waste
|

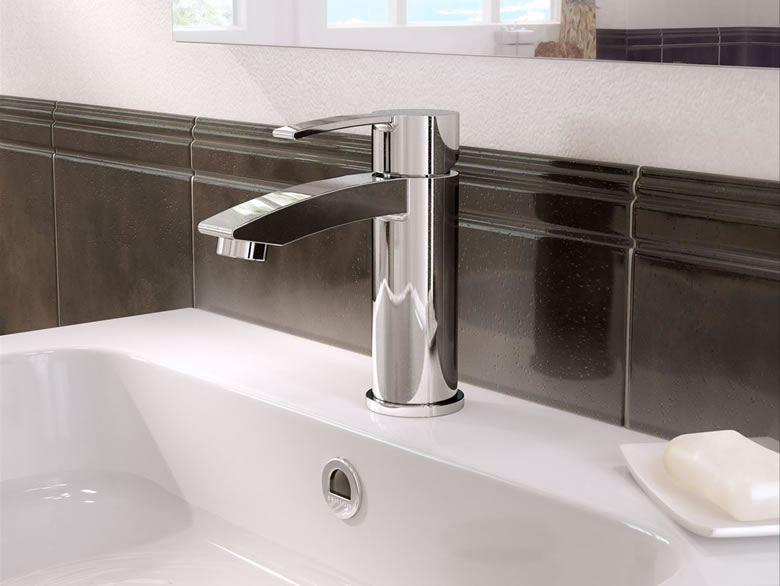

As Shown
| CTA9 − |
Guarantee
|
15 year guarantee*
*Full terms & conditions here |
Standards Information
|
Level 10 salt spray tested |
|
Chrome plated to EN248:2002 |
|
EN817:2008 |
|
Sanitary tapware. Mechanical mixing valves (PN 10). General technical specifications |
|
EN200:2008 |
|
Sanitary tapware. Single taps and combination taps for water supply systems of type 1 and type 2. General technical specification |
Additional Information
|
Supplied with flow straighter for use with low water pressure |
|
Also supplied with aerator for use with high water pressure |
|
All mixers work on 0.2 bar to 5 bar pressure |
Flow Rates
| System Pressure | 0.2 bar | 0.5 bar | 1 bar | 2 bar | 3 bar | 4 bar | 5 bar |
|---|---|---|---|---|---|---|---|
| Spout (straightener) | 3.1 | 6.24 | 9.35 | 13.59 | 16.81 | n/a | n/a |
| Spout (aerator) | 2.26 | 3.79 | 5.4 | 7.67 | 9.42 | n/a | n/a |
Downloads
-
2D CAD-File - DWG -
CTA9
(CTA9_LD.dwg)
-

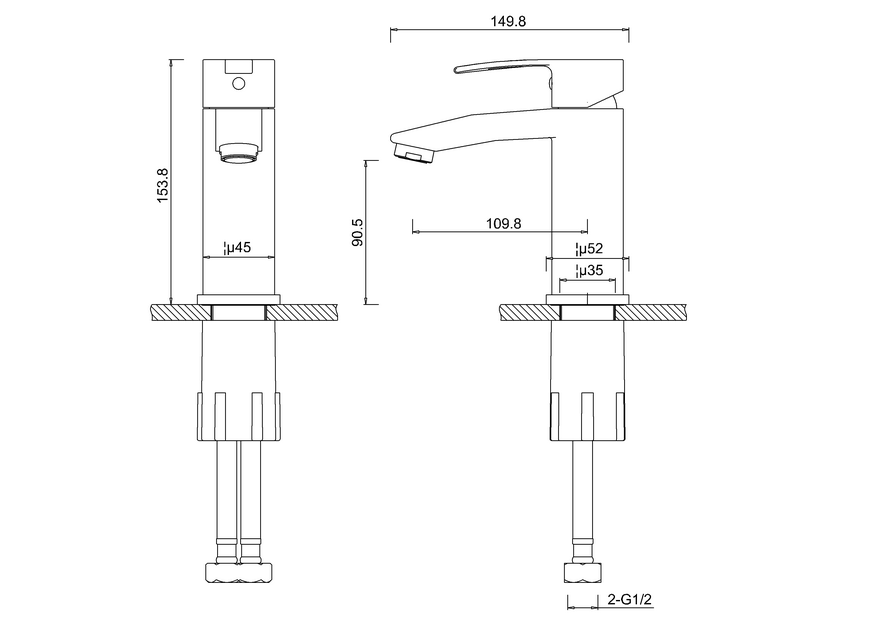

2D Drawing - PDF -
CTA9
(CTA9_LD.pdf)
2D Drawing - PDF - CTA9
-
3D DWG - File - DWG
-
CTA9
(CTA9.dwg)
-
3D DXF - File - DXF
-
CTA9
(CTA9.dxf)
-
3D IGS - File - IGS
-
CTA9
pending
-
3D RFA BIMM Objects - File - RFA
-
CTA9
pending
