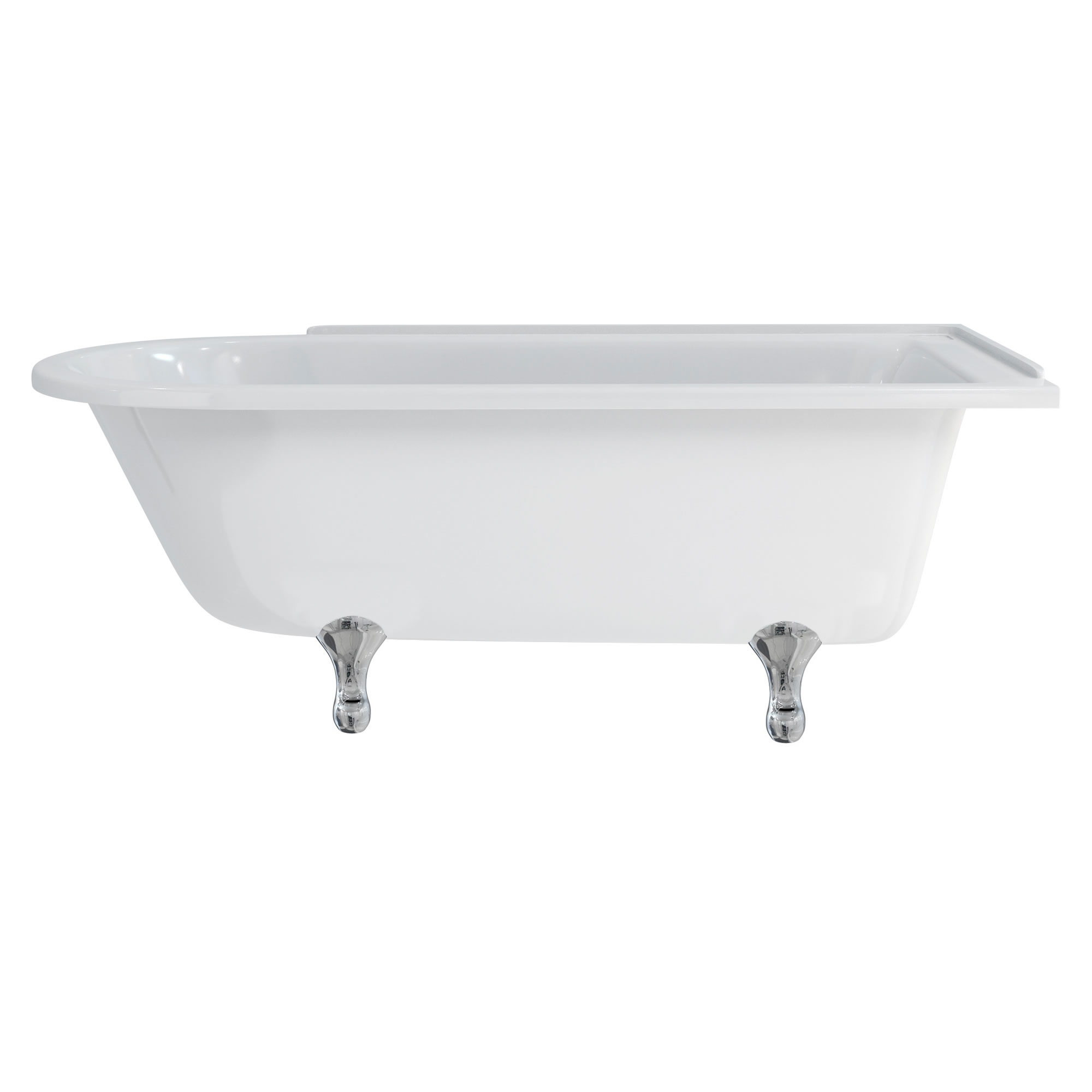

E14 Hampton shower bath (right) |
E10CHR Classical leg set |
E14 - bath - Acrylic |
E10CHR - legs - 0 |
E14 - bath - 46kg |
E10CHR - legs - 2.7kg |
E14 - bath - 48.5kg |
E10CHR - legs - 3.1kg |

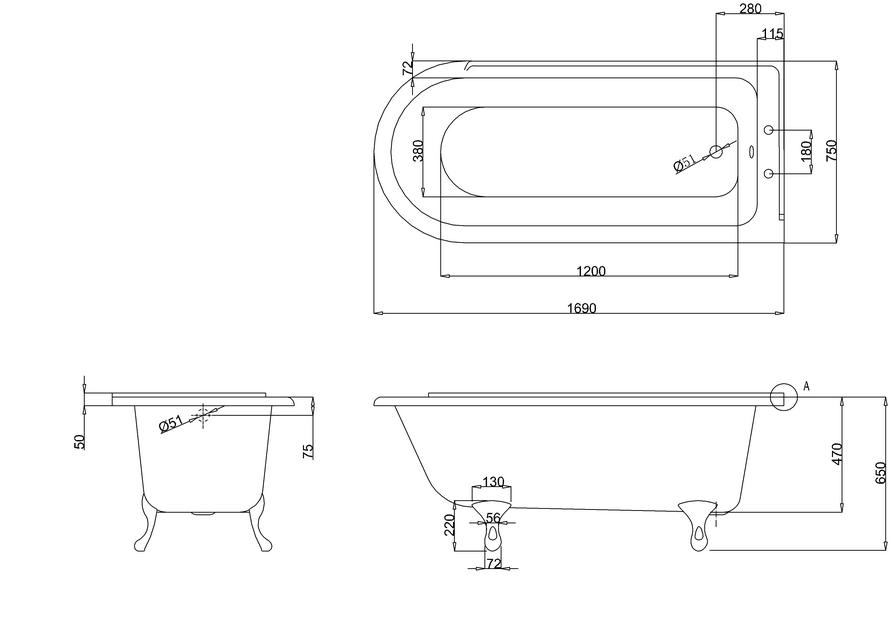

E14 - 1710 x 760 x 520 = 0.6758 m3 |
E10CHR - 280 x 280 x 220 = 0.0172 m3 |
138 litres displaced water capacity |
0,1,2 |
10 year guarantee*
*Full terms & conditions here |
BS EN 14516:2015+A1:2018 |
This is a roll top designed especially for showering. The rim includes a tiling up-stand for waterproofing the showering corner. |
Supplied left or right handed. |
Supplied with a template to define the taps holes or overflow holes on the bath. Tap holes can then be drilled on site as required. |
W4 - Exposed bath overflow, plug & chain |
CW3 - P-trap |
W21 - P-trap connection pipe |
CW2 - Click-clack bath waste unslotted with chrome cover |
CW6 - Exposed bath overflow, click-clack waste |
SP1704 | completed packing for E14 bath (including labels) |
SP25 | spares 2 for L10 and 3 colors of bath leg set (L1, L2, L3, E9, E10, E11) |
