Hampton right handed bath - 170cm with standard legs
Classical legs
Chrome
White
Black
Period legs
Chrome
White
Black
Traditional legs
White
Black
Chrome

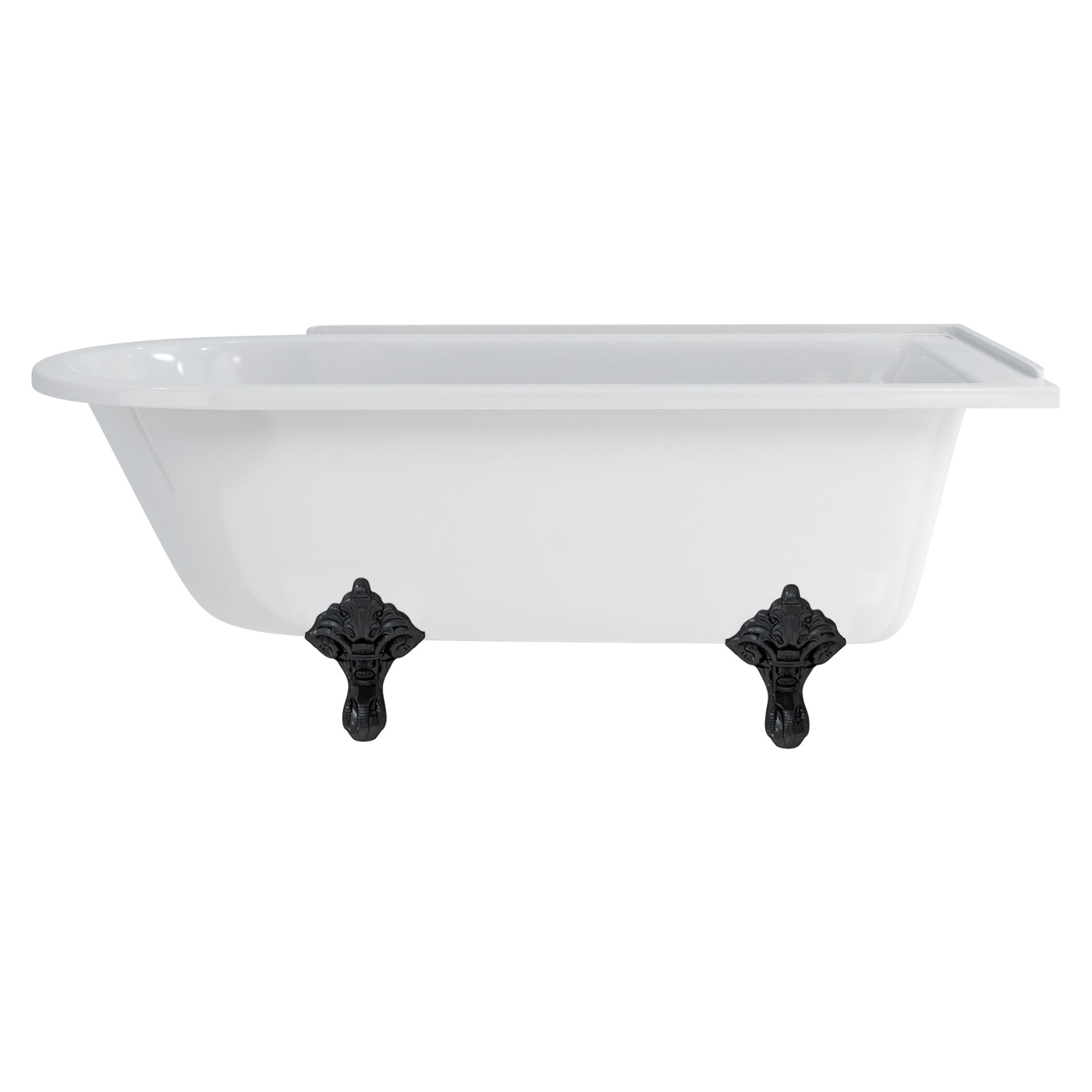

As Shown
| E14 Hampton shower bath (right) |
| E11 BLA Traditional leg set |
Nett Weight
| E14 - bath - 46kg |
| E11 BLA - legs - 3.2kg |
Gross Weight Including Packaging
| E14 - bath - 48.5kg |
| E11 BLA - legs - 3.9kg |
Packed Dimension
| E14 - 1710 x 760 x 520 = 0.6758 m3 |
| E11 BLA - 340 x 340 x 230 = 0.0266 m3 |
Bath water capacity
| 138 litres displaced water capacity |
Tap Hole Options
| 0,1,2 |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 14516:2015+A1:2018 |
Additional Information
|
This is a roll top designed especially for showering. The rim includes a tiling up-stand for waterproofing the showering corner. |
|
Supplied left or right handed. |
|
Supplied with a template to define the taps holes or overflow holes on the bath. Tap holes can then be drilled on site as required. |
Compatible Products
| W4 - Exposed bath overflow, plug & chain |
| CW3 - P-trap |
| W21 - P-trap connection pipe |
| CW2 - Click-clack bath waste unslotted with chrome cover |
| CW6 - Exposed bath overflow, click-clack waste |
| SP1704 | completed packing for E14 bath (including labels) |
Downloads
- Instructions - PDF - E14 (English)
- Instructions - PDF - E11 BLA (English)
- Instructions - PDF - E14 (French)
- Instructions - PDF - E11 BLA (French)
-
2D CAD-File - DWG -
E14 E11 BLA
(E14 - E11 CHR E11 WHI E11 BLA.dwg)
-
2D Drawing - PDF -
E14 E11 BLA
(E14 - E11 CHR E11 WHI E11 BLA.pdf)
2D Drawing - PDF - E14 E11 BLA
-
3D DWG - File - DWG
-
E14 E11 BLA
(AJB-RL-1709R-A.dwg)
-
3D DXF - File - DXF
-
E14 E11 BLA
(AJB-RL-1709R-A.dxf)
-
3D IGS - File - IGS
-
E14 E11 BLA
(AJB-RL-1709R-A.igs)
-
3D RFA BIMM Objects - File - RFA
-
E14 E11 BLA
(AJB-RL-1709R-A.rfa)
