Standard P trap horizontal outlet P5

Product Options

Finish options

White

WC options

with lever flush 52cm wide cistern C1

with lever flush 44cm wide cistern C3

Standard CC WC with 520 front push button cistern

with push button flush 52cm wide cistern C2

Standard CC WC with 440 front push button cistern

with push button flush 44cm wide cistern C4

handle options

white & chrome	white & nickel	white & gold
black & chrome	walnut & chrome	white & brushed nickel

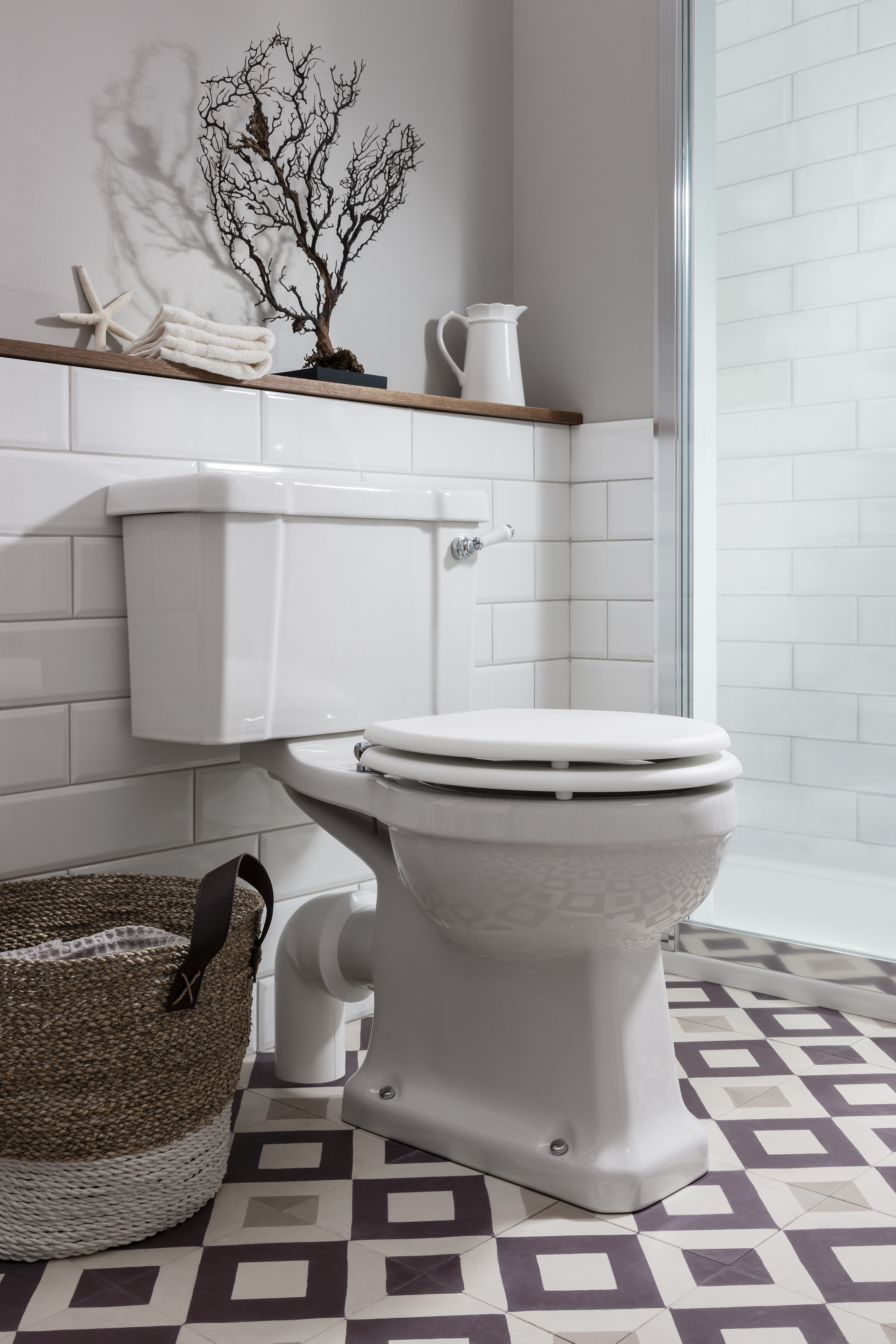

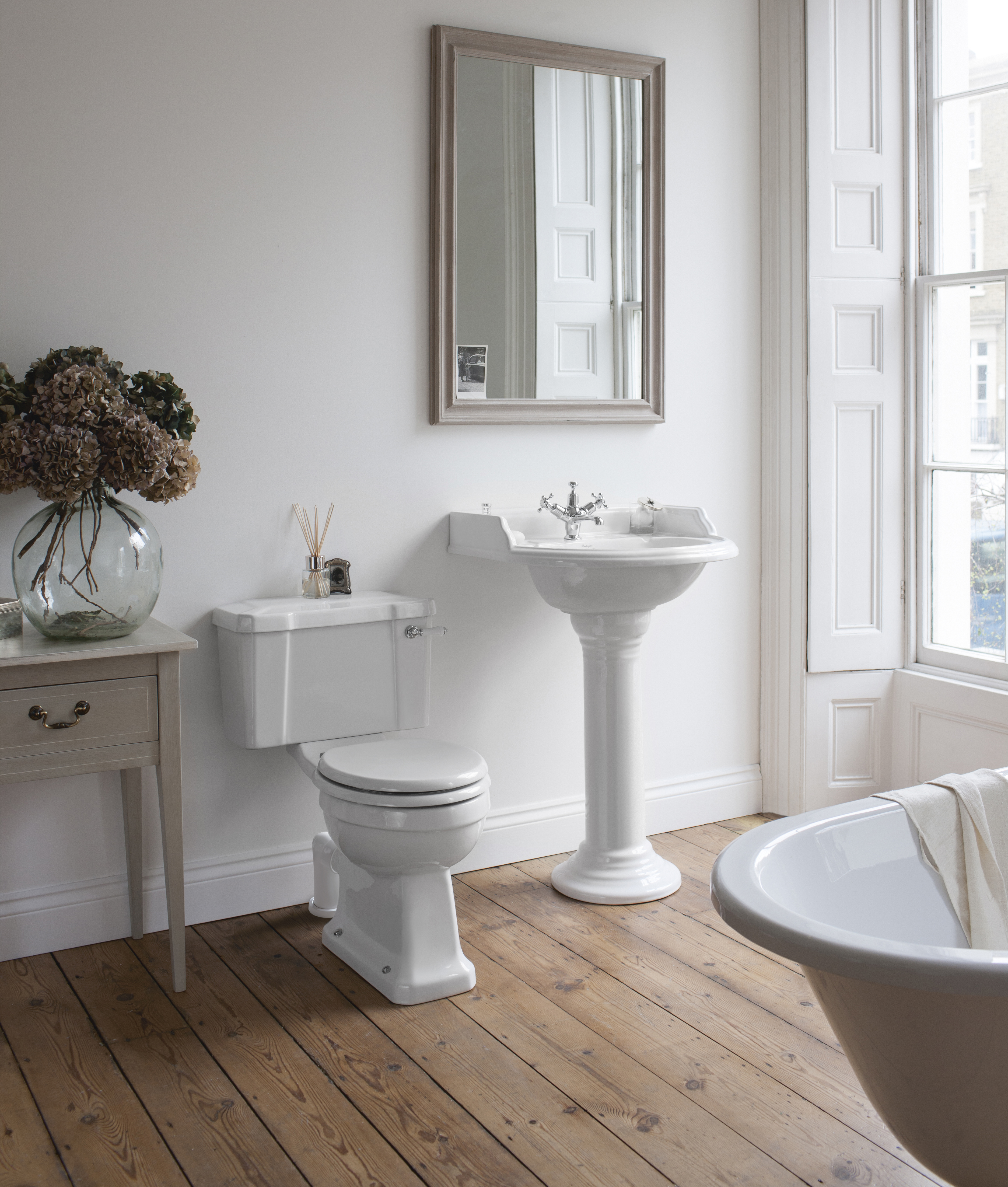

As Shown

C1 510mm close coupled/low level ceramic lever cistern

P5 Close coupled pan

S11 Golden oak seat

A51CHR Burlington seat handle Chrome

BX1 Black cistern lever

Colour

C1 - cistern - Gloss White

P5 - pan - Gloss White

S11 - seat - Oak

A51CHR - accessories - Polished Chrome

BX1 - cistern lever -

Material

C1 - cistern - Vitreous China

P5 - pan - Vitreous China

S11 - seat - Molded Wood

A51CHR - accessories - Zinc Alloy

BX1 - cistern lever - Zinc Alloy

Size

C1 - 205 x 515 x 330mm

P5 - 655 x 355 x 450mm

S11 - 432 x 371 x 65mm

A51CHR - 50 x 56 x 8mm

BX1 - 75 x 25 x 90mm

Nett Weight

C1 - cistern - 16.15kg

P5 - pan - 21.45kg

S11 - seat - 2.62kg

A51CHR - accessories - 0.04kg

BX1 - cistern lever - 0.238kg

Gross Weight Including Packaging

C1 - cistern - 18.45kg

P5 - pan - 24.15kg

S11 - seat - 2.84kg

A51CHR - accessories - 0.07kg

BX1 - cistern lever - 0.25kg

Packed Dimension

C1 - 537 x 227 x 360 = 0.0439 m3

P5 - 672 x 370 x 475 = 0.1181 m3

S11 - 440 x 373 x 65 = 0.0107 m3

A51CHR - 60 x 60 x 100 = 0.0004 m3

BX1 - 90 x 35 x 105 = 0.0003 m3

Guarantee

Lifetime guarantee*
*Full terms & conditions here

Standards Information

BS EN 14055:2018

BS EN 997:2018

BS EN 33:2019

Additional Information

P trap standard height pan - height from floor to pan rim is 42cm.

Water Inlet valve hole is located on the base of cistern tank on the right hand side

Bottom inlet valve (SP5A). Back inlet valve available as optional item (SP511).

SP511 : Back entry kit for C1/C2/C3/C4/C30, including back entry inlet valve with flexible hose and plug.

Dual flush cistern fittings with ceramic lever on the right.

Press lever down for 6 litre flush and up for 3 litre flush.

Regal Height pan ( floor to pan rim height 48cm ) available : P12.

Ceramic soil connection pipes : straight connector to the wall : C29. The S trap connector bending down to the floor : C26.

Metal connection bracket.

Close coupled wc must be used with standard Burlington toilet seats.

Supplied with floor fixings.

Recommended to be used with cistern tank isolation valve W25.

Spare parts

SP11	51cm Cistern Lid for C1 & C2
SP511	back entry kit for C1, C3, C2, C4, C30, ARC5, including back entry inlet valve with flexible hose and plug
SP1021	bottom sealing washer of flush valve for product C1, C3, C3, C4
SP509	buffers for the seat ring & lid for S11, S12, S16, S17
SP8	ceramic Cistern lever for Close Coupled, Low Level Cistern
SP17A	chrome cover caps(pair) for Burlington pans, bidet, semi pedestal and U1
SP84	cistern flush valve with control cable for cistern fitting SP5 (excluding lever and inlet valve)
SP390GOLD	cistern Lever for C1, C3 - GOLD
SP620	complete bar hinges for S11, S12
SP192	hinge fixings for S11, S12, S16, S17 seats
SP504_2	inlet valve for Burlington close coupled cisterns
SP508	kit for close couple cistern
SP507	kit for low level installation for close coupled cisterns C1, C2, C3, C4, T71 CHR
SP5A	lever Flush Bottom Entry cistern fitting with ceramic lever
SP17	screw fixing pack for pan and bidet
SP193	spare Parts for S11, S12
SP802	the bigger stopper for SP5A, ARCSP7, C24C, SP7
SP387	WC floor fixing plastic caps - GOLD
SP1744	white caps & inserts (2 pieces) of floor fixings for Burlington pans, bidets and urinals
