Classic Rectangular basin
Product Options
Colour options
mounting options
|
White
|
standard pedestal
|
regal pedestal
|
with wash stand
|
with aluminium stand
|
with furniture
|
with brushed nickel wash stand
|

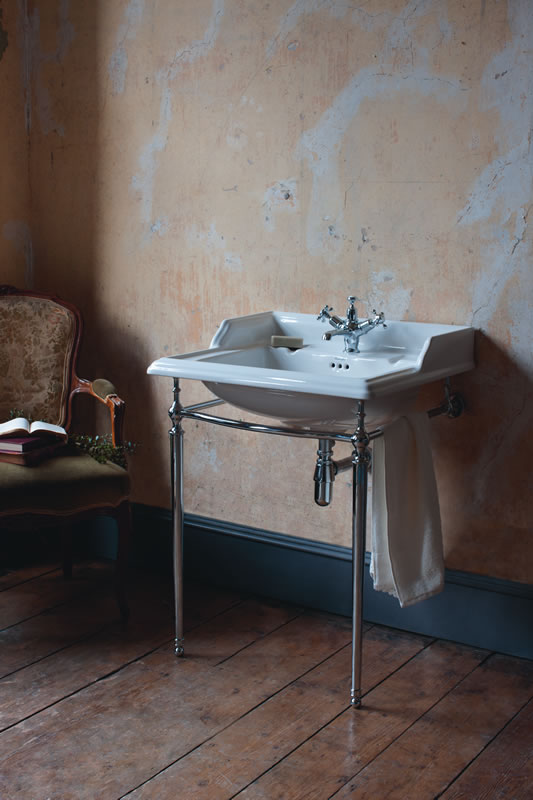

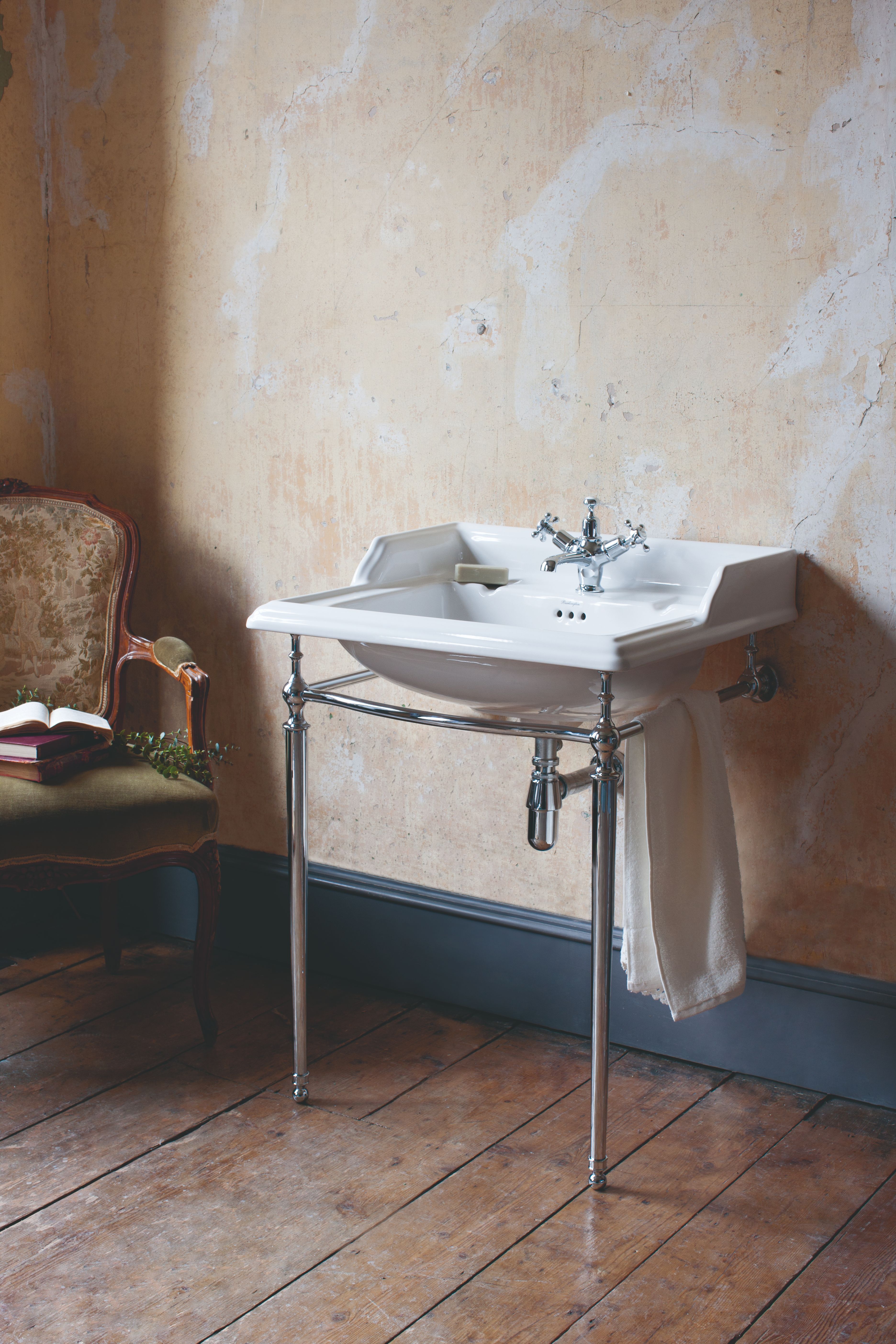

As Shown
| B15 1TH Classic 65cm basin one tap hole |
| T49A BNKL Curved Basin Stand Brushed Nickel |
Nett Weight
| B15 1TH - basin - 19.05kg |
| T49A BNKL - - 3.4kg |
Gross Weight Including Packaging
| B15 1TH - basin - 22.9kg |
| T49A BNKL - - 4kg |
Tap Hole Options
| Available with one (1TH), two (2TH) or three (3TH) tap holes |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 31:2011 |
|
BS EN 14688:2015 |
Additional Information
|
The 2 legs are held securely in place by 2 floor mounted nipples. |
|
To order the correct tap hole configuration simply use 1TH, 2TH or 3TH at the end of the basin product code. |
|
The overflow is to solve the issue of a dripping tap if the plug is left in. It is not designed to take a flowing tap. |
|
To raise the height of the wash stand by 6cm use the additional item T62. |
Compatible Products
| W14 - Traditional basin bottle trap |
| SP843BNKL | adjust Screw of Bur Basin Stands BNick |
| SP824BNKL | floor Fixings Bur Basin Stands BrNickel |
| SP838BNKL | foot for Bur Basin Stands in Bru Nickel |
| SP1587 | grub screw for Burlington basin stands |
| SP225 | rubber washer for basin stands |
Downloads
-
2D CAD-File - DWG -
B15 1TH T49A BNKL
(B15 1TH_T49A CHR_20201030.dwg)
-

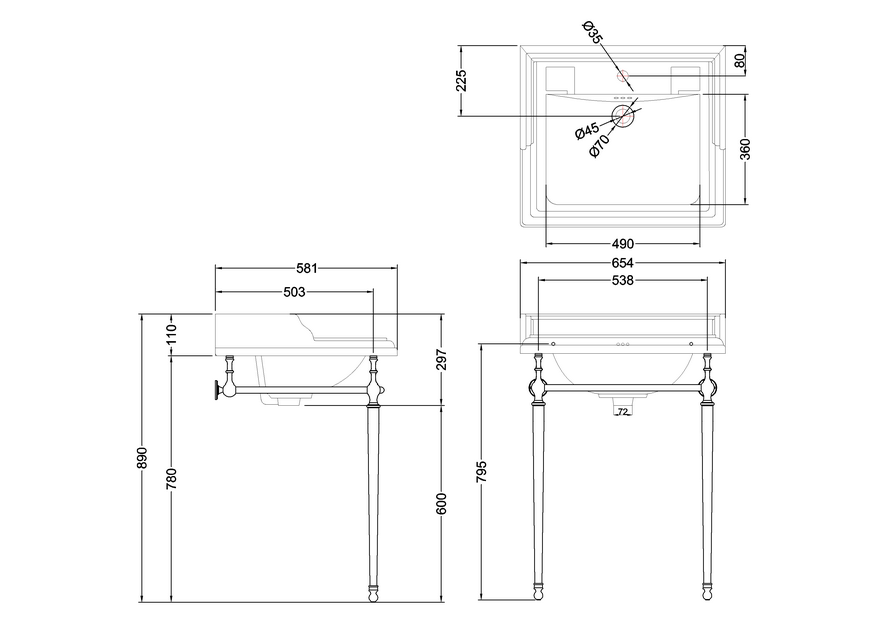

2D Drawing - PDF -
B15 1TH T49A BNKL
(B15 1TH_T49A CHR_20201030.pdf)
2D Drawing - PDF - B15 1TH T49A BNKL
-
3D DWG - File - DWG
-
B15 1TH T49A BNKL
(2717.dwg)
-
3D DXF - File - DXF
-
B15 1TH T49A BNKL
(2717.dxf)
-
3D IGS - File - IGS
-
B15 1TH T49A BNKL
(2717.igs)
-
3D RFA BIMM Objects - File - RFA
-
B15 1TH T49A BNKL
(2717.rfa)
