Classic Rectangular basin
Product Options
Colour options
mounting options
|
White
|
standard pedestal
|
regal pedestal
|
with wash stand
|
with aluminium stand
|
with furniture
|
with brushed nickel wash stand
|

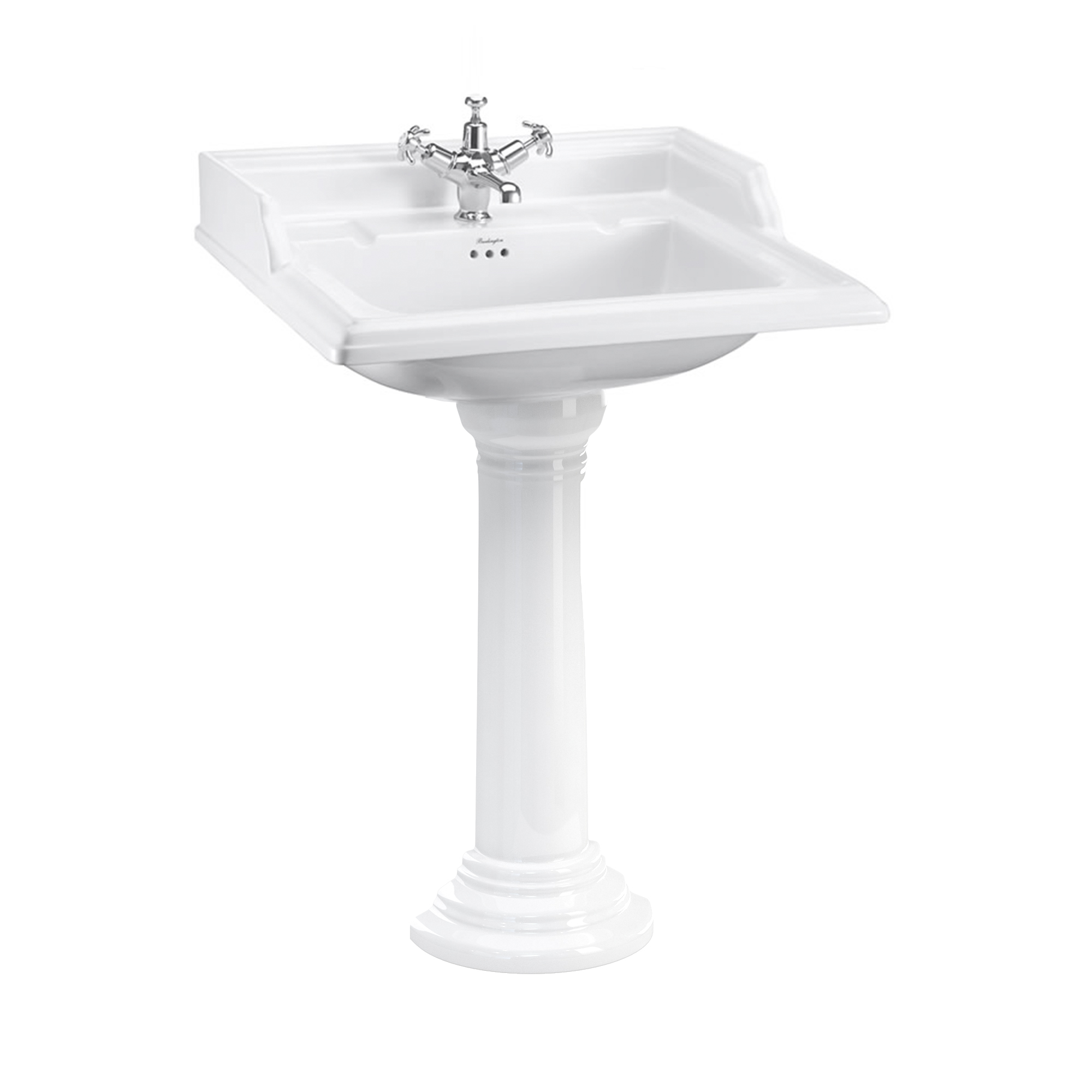

As Shown
| B151TH Classic 65cm basin one tap hole |
| P9R Regal round pedestal |
Nett Weight
| B151TH - basin - 19.05kg |
| P9R - pedestal - 10kg |
Gross Weight Including Packaging
| B151TH - basin - 22.9kg |
| P9R - pedestal - 11.5kg |
Packed Dimension
| B151TH - 670 x 597 x 315 = 0.126 m3 |
| P9R - 360 x 315 x 745 = 0.0845 m3 |
Tap Hole Options
| Available with one (1TH), two (2TH) or three (3TH) tap holes |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 31:2011 |
|
BS EN 14688:2015 |
Additional Information
|
To order the correct tap hole configuration simply use 1TH, 2TH or 3TH at the end of the basin product code. |
|
The overflow is to solve the issue of a dripping tap if the plug is left in. It is not designed to take a flowing tap. |
Compatible Products
| W1 - Basin plug and chain (option for two tap hole basin only) |
| W11 - "Click-clack" Basin waste slotted |
| W18 - Flip-top basin waste slotted |
Downloads
-
2D CAD-File - DWG -
B15 1TH P9R
(B15 1TH_P9R_20201030.dwg)
-

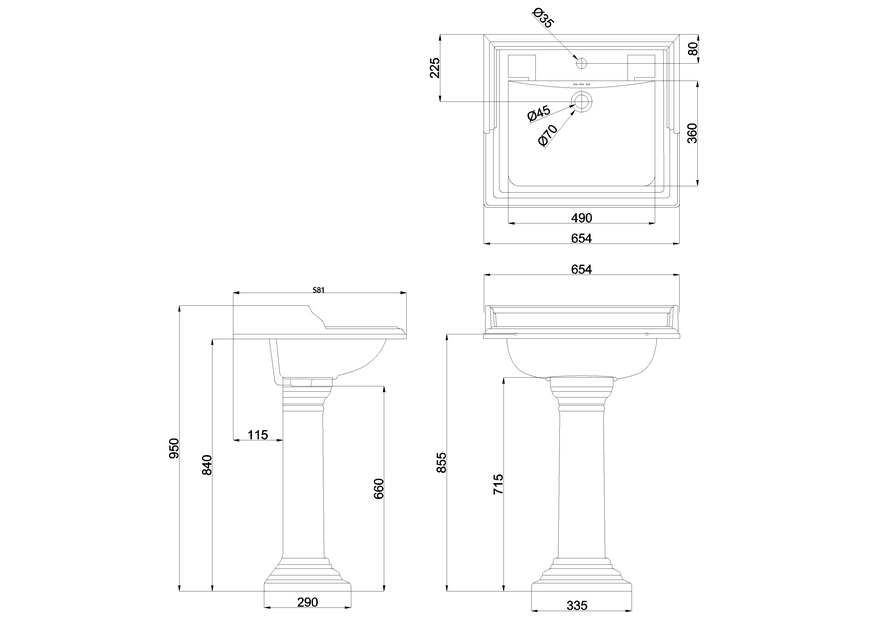

2D Drawing - PDF -
B15 1TH P9R
(B15 1TH_P9R_20201030.pdf)
2D Drawing - PDF - B15 1TH P9R
-
3D DWG - File - DWG
-
B15 1TH P9R
(2713 with 70017.dwg)
-
3D RFA BIMM Objects - File - RFA
-
B15 1TH P9R
(2713 with 70017.rfa)
