Hinged doors & side panels

Sizes

76cm (A), 76cm (C)	76cm (A), 90cm (C)	80cm (A), 80cm (C)	80cm (A), 90cm (C)
90cm (A), 76cm (C)	90cm (A), 80cm (C)	90cm (A), 90cm (C)

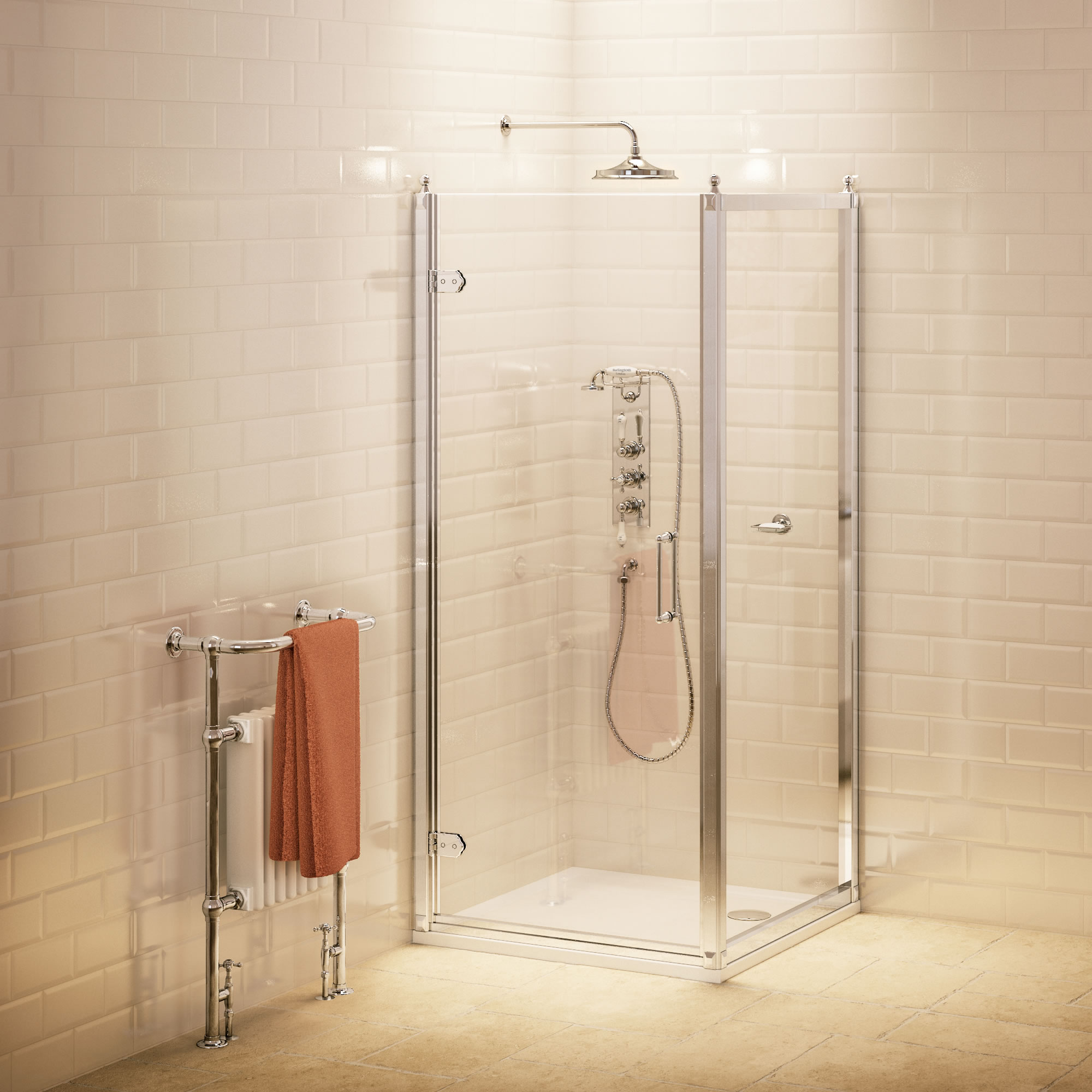

As Shown

C19 760mm hinged door

C14 900mm side panel

BU12 - Combined product code

Colour

C19 - door - Polished Aluminum

C14 - side panel - Polished Aluminum

Material

Size

Nett Weight

Gross Weight Including Packaging

Packed Dimension

Guarantee

Lifetime guarantee*
*Full terms & conditions here

Standards Information

BS EN14428:2015

BS EN 12150-1:2015

Additional Information

Safety glass with 3M™ Easy Clean Coating

Hinged door 8mm glass, side panel 6mm glass

Hinged door opens outwards only

SP938	adjustable profile of product C19, C20, C21
SP470	bottom door frame B019 for C19 (excluding the sealing strip)
SP61	bottom Waterproof Strip for C19, C20, C21, C22, C23 (single) (B035, B036)
SP318	burlington Bottom profile of hinge door C19, C20, C21
SP912	hinge of product C19, C20, C21, C9, C10
SP1687	hinge screws for Burlington shower enclosure C9, C10, C19, C20, C21,
SP53	hinged Door Spare Kit
SP431	part B011 for C19, C20, C21
SP982	seal on the hinged side of the door for product C19, C20, C21
SP242	side profile - B015 for C23, C22, C21, C20, C19 (pair)
SP516	supporting bar for side panel C14
SP112	top and bottom fixing frame 636mm for C19
SP921	top cap of door profile for product C10, C19, C20, C21, C22, C23, C6S, C7S, C8S, BS3, BS8L, BS8R
SP426	vertical seal for C19, C20, C21(B017)
