Hinged doors & side panels

Sizes

76cm (A), 76cm (C)	76cm (A), 90cm (C)	80cm (A), 80cm (C)	80cm (A), 90cm (C)
90cm (A), 76cm (C)	90cm (A), 80cm (C)	90cm (A), 90cm (C)

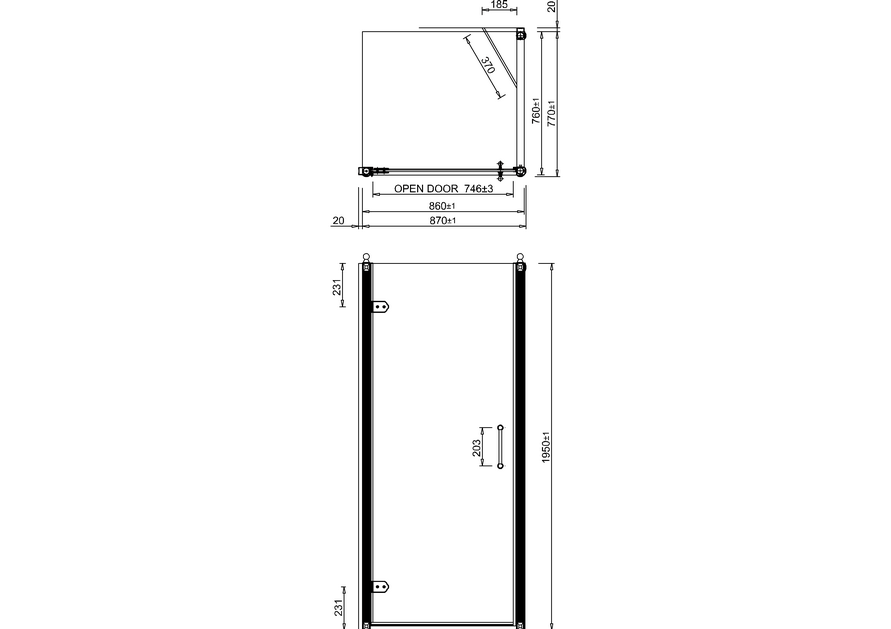

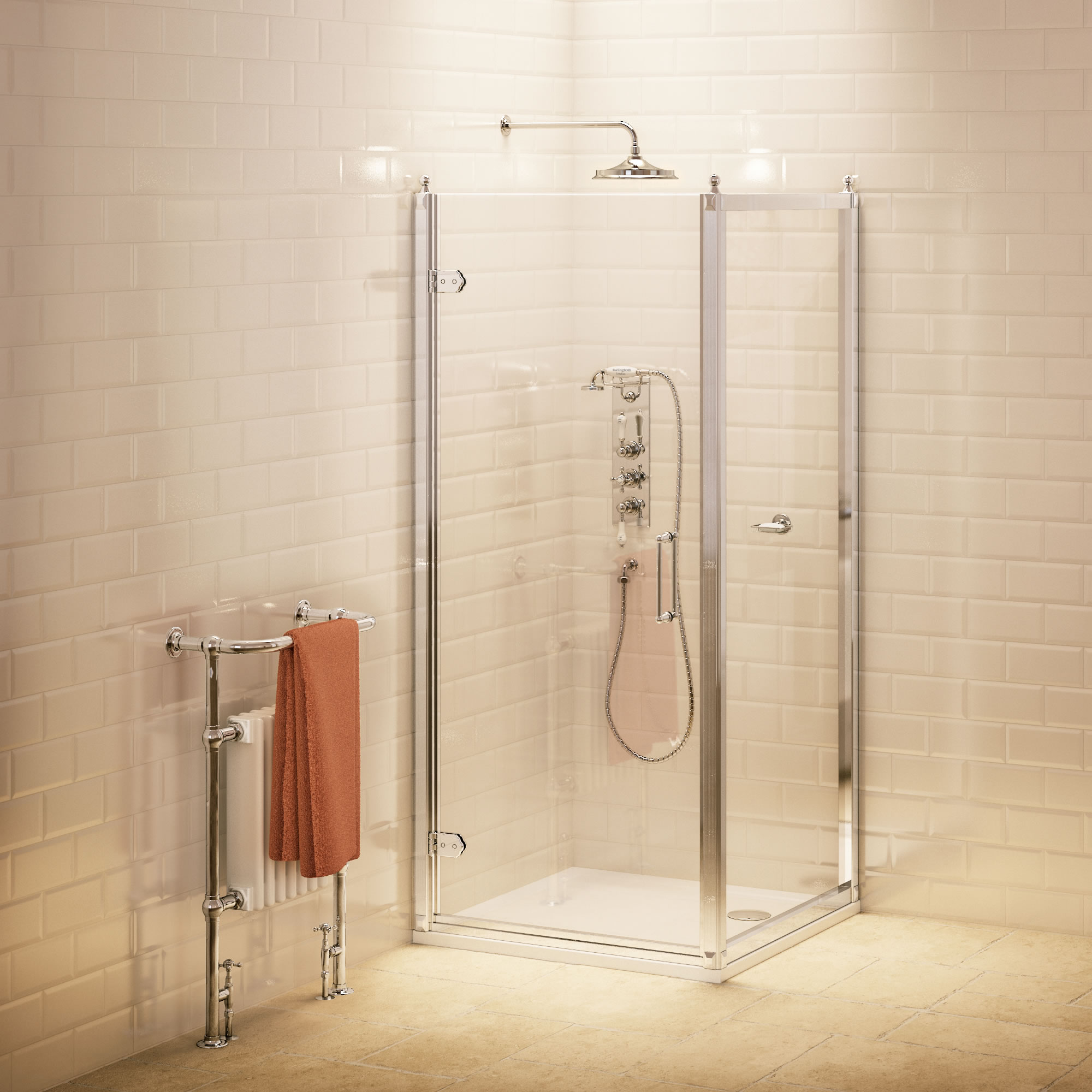

As Shown

C21 900mm hinged door

C13 800mm side panel

BU16 - Combined product code

Colour

C21 - door - Polished Aluminum

C13 - side panel - Polished Aluminum

Material

Size

Nett Weight

Gross Weight Including Packaging

Packed Dimension

Guarantee

Lifetime guarantee*
*Full terms & conditions here

Standards Information

BS EN14428:2015

BS EN 12150-1:2015

Additional Information

Hinged door opens outwards only

Safety glass with 3M™ Easy Clean Coating

Hinged door 8mm glass, side panel 6mm glass

SP938	adjustable profile of product C19, C20, C21
SP472	bottom door frame B021 for C21 (excluding the sealing strip)
SP61	bottom Waterproof Strip for C19, C20, C21, C22, C23 (single) (B035, B036)
SP318	burlington Bottom profile of hinge door C19, C20, C21
SP947	glass of product C21
SP912	hinge of product C19, C20, C21, C9, C10
SP1687	hinge screws for Burlington shower enclosure C9, C10, C19, C20, C21,
SP53	hinged Door Spare Kit
SP431	part B011 for C19, C20, C21
SP982	seal on the hinged side of the door for product C19, C20, C21
SP242	side profile - B015 for C23, C22, C21, C20, C19 (pair)
SP515	supporting bar for side panel C10, C11, C12, C13, C15
SP921	top cap of door profile for product C10, C19, C20, C21, C22, C23, C6S, C7S, C8S, BS3, BS8L, BS8R
SP426	vertical seal for C19, C20, C21(B017)
