Welcome to the Bathroom Brands Technical Whitebook


Hinged doors & side panels
asaq2.Model.Web_product_new?.web_name
Product Options
Sizes
Hinged door 76cm & side panel 76cm 76cm (A), 76cm (C) Hinged door 76cm & side panel 90cm 76cm (A), 90cm (C) Hinged door 80cm & side panel 80cm 80cm (A), 80cm (C) Hinged door 80cm & side panel 90cm 80cm (A), 90cm (C)
Hinged door 90cm & side panel 76cm 90cm (A), 76cm (C) Hinged door 90cm & side panel 80cm 90cm (A), 80cm (C) hinged_door_and_side_option.jpg 90cm (A), 90cm (C)
Alternate Text

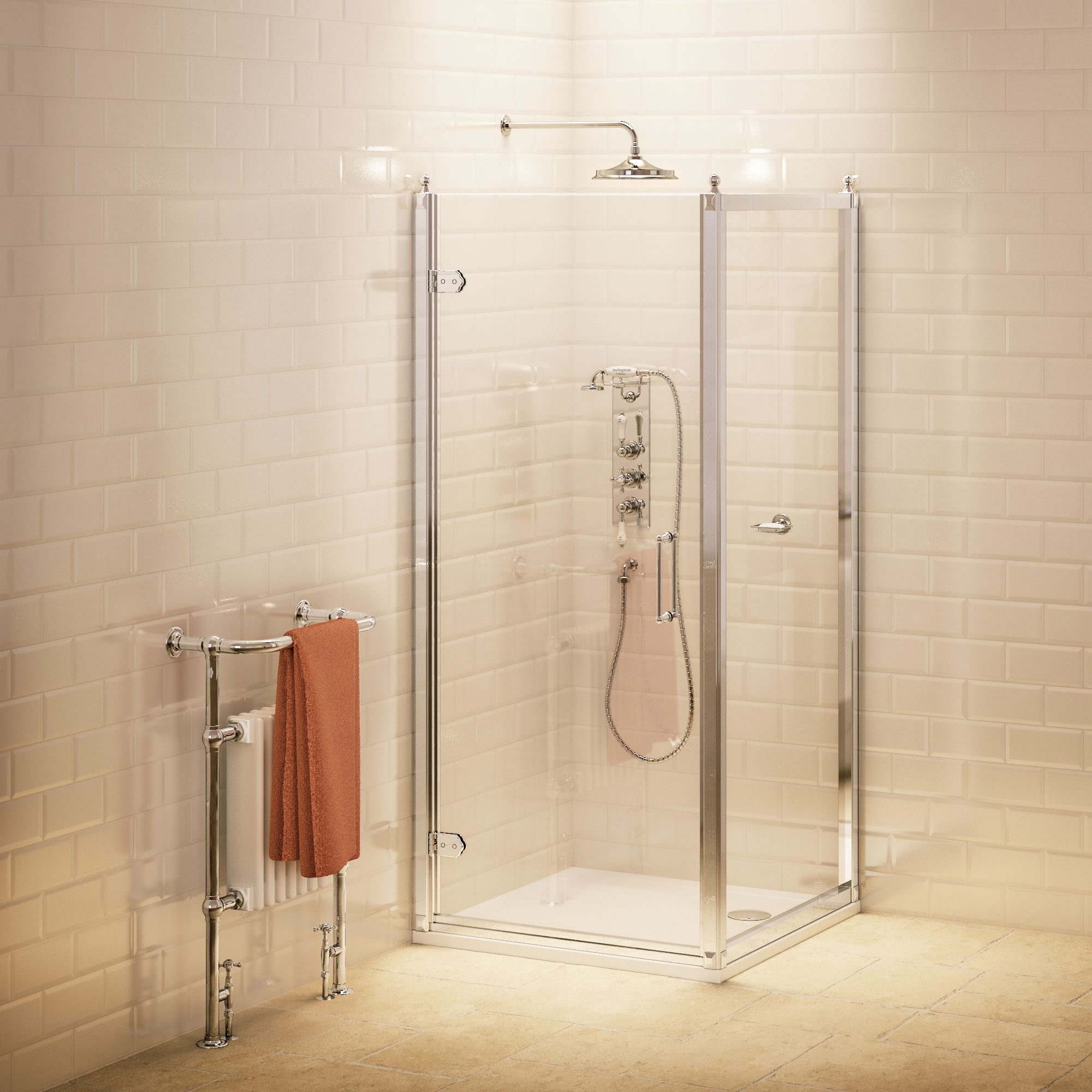

As Shown
C21 900mm hinged door
C14 900mm side panel

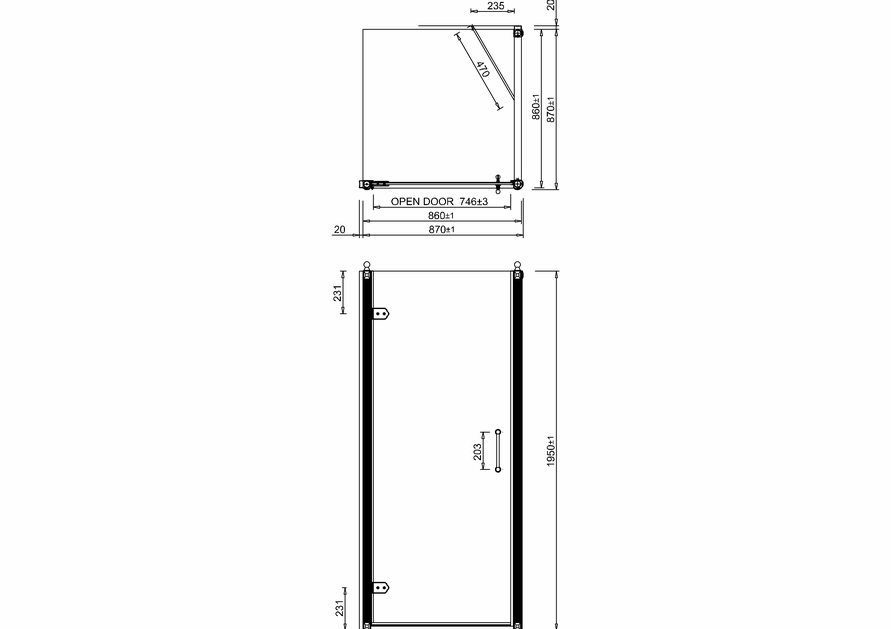

BU17  -  Combined product code
Gross Weight Including Packaging
C21 - door - 40kg
C14 - side panel - 30.1kg
Guarantee
Lifetime guarantee*
*Full terms & conditions here
Standards Information
BS EN14428:2015
BS EN 12150-1:2015
Additional Information
Hinged door opens outwards only
Hinged door 8mm glass, side panel 6mm glass
Safety glass with 3M™ Easy Clean Coating
SP938 adjustable profile of product C19, C20, C21
SP472 bottom door frame B021 for C21 (excluding the sealing strip)
SP61 bottom Waterproof Strip for C19, C20, C21, C22, C23 (single) (B035, B036)
SP318 burlington Bottom profile of hinge door C19, C20, C21
SP947 glass of product C21
SP912 hinge of product C19, C20, C21, C9, C10
SP1687 hinge screws for Burlington shower enclosure C9, C10, C19, C20, C21,
SP53 hinged Door Spare Kit
SP431 part B011 for C19, C20, C21
SP982 seal on the hinged side of the door for product C19, C20, C21
SP242 side profile - B015 for C23, C22, C21, C20, C19 (pair)
SP516 supporting bar for side panel C14
SP921 top cap of door profile for product C10, C19, C20, C21, C22, C23, C6S, C7S, C8S, BS3, BS8L, BS8R
SP426 vertical seal for C19, C20, C21(B017)
